沃尔沃零件查询4.3GXiE-225-RElectrical SystemEVC CablesEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
988 次

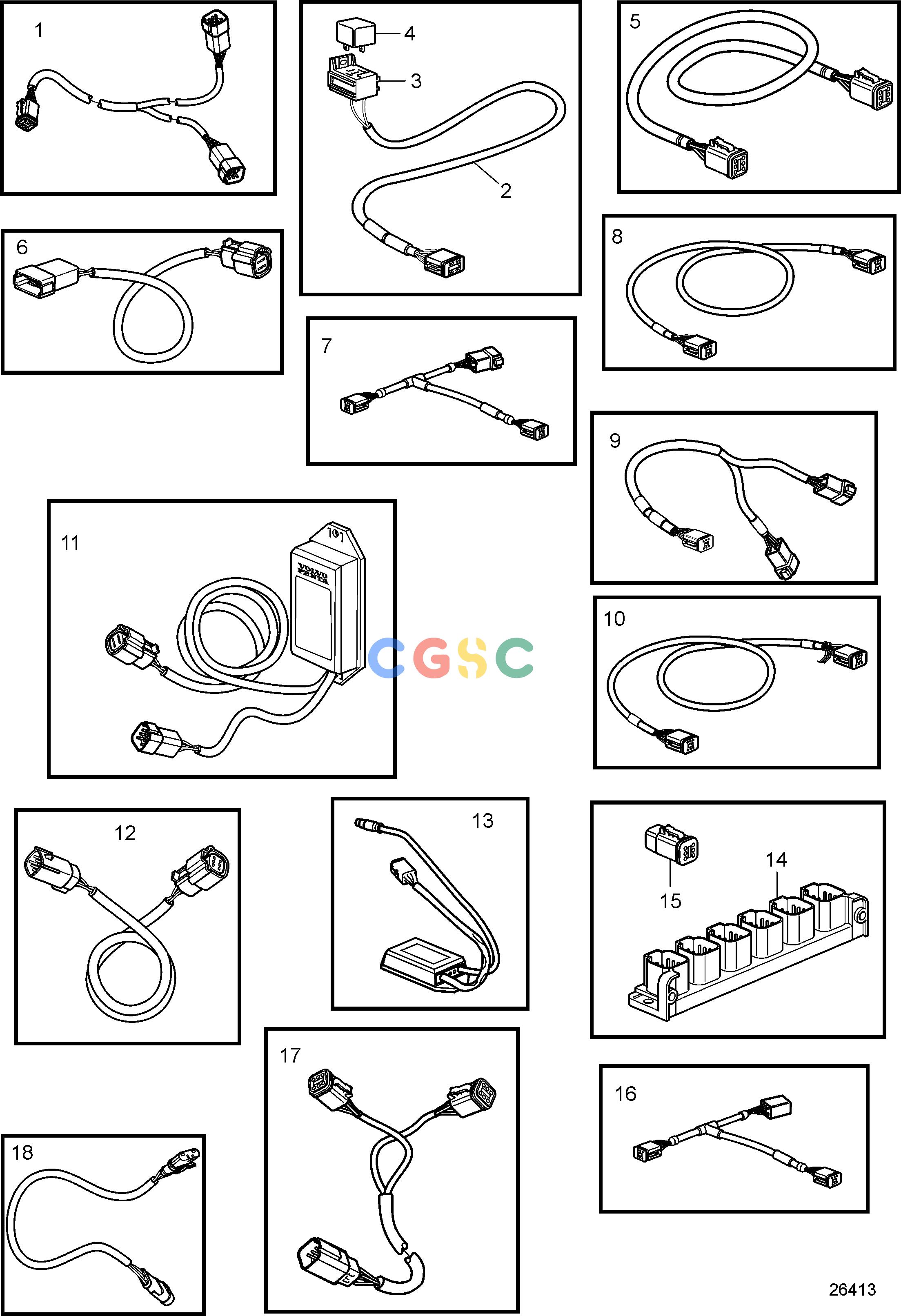

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21825662
|
[1] |
Cable
|
Y-split, multisensor
|
| 2. |
21427463
|
[1] |
Cable
|
Auxiliary relay
|
| 3. |
977184
|
[1] |
Housing
|
|
| 4. |
873765
|
[1] |
Relay
|
12V
|
| 5. |
3889410
|
[1] |
Extension cable
|
L=1,5m
|
| 5. |
3842733
|
[1] |
Extension cable
|
L=3.0m
|
| 5. |
3842734
|
[1] |
Extension cable
|
L=5.0m
|
| 5. |
3842735
|
[1] |
Extension cable
|
L=7,0m
|
| 5. |
3842736
|
[1] |
Extension cable
|
L=9.0m
|
| 5. |
3842737
|
[1] |
Extension cable
|
L=11,0m
|
| 5. |
21172469
|
[1] |
Extension cable
|
L=20m
|
| 5. |
21172470
|
[1] |
Extension cable
|
L=40m, Replaced by 22815614
|
| 5. |
22815614
|
[1] |
Cable kit, 100 m
|
Data link cable kit, Type Approved 100m
|
| 5. |
22815615
|
[1] |
Cable kit, 1000 m
|
Data link cable kit, Type Approved 1000m
|
| 5. |
22815617
|
[1] |
Cable kit, 25 m
|
Data link cable kit, Type Approved 25m
|
| 6. |
21421945
|
[1] |
Cable
|
Steering adapter
|
| 7. |
3588972
|
[1] |
Cable kit
|
Y-connector bus cable, 6-pole., L=0,5m
|
| 7. |
874960
|
[2] |
Housing
|
|
| 7. |
874959
|
[1] |
Housing
|
|
| 8. |
3886666
|
[1] |
Cable, multilink
|
L=1,5m
|
| 8. |
21166002
|
[1] |
Wiring harness, multilink
|
7m
|
| 8. |
21166003
|
[1] |
Wiring harness, multilink
|
9m
|
| 8. |
21166004
|
[1] |
Wiring harness, multilink
|
13m
|
| 9. |
3588206
|
[1] |
Cable kit, y-split
|
|
| 10. |
21865234
|
[1] |
Cable
|
L=1,5m
|
| 10. |
874789
|
[1] |
Cable kit
|
L=5.0m
|
| 10. |
889550
|
[1] |
Cable
|
L=7,0m
|
| 10. |
889551
|
[1] |
Cable
|
L=9.0m
|
| 10. |
889552
|
[1] |
Cable
|
L=11,0m
|
| 10. |
888013
|
[1] |
Cable
|
L=13,0m
|
| 11. |
21460908
|
[1] |
Converter
|
A-can converter
|
| 12. |
21480272
|
[1] |
Cable
|
Extension cable, 6 pin. 1.5m, styrning
|
| 13. |
3848966
|
[1] |
Control unit
|
Dimmer unit
|
| 14. |
21469055
|
[1] |
Connection block
|
Multilink-link hub
|
| 15. |
21825714
|
[1] |
Terminal
|
|
| 16. |
21287072
|
[1] |
Wiring harness
|
T-cable, Multilink-link hub
|
| 16. |
874960
|
[3] |
Housing
|
|
| 17. |
21427460
|
[1] |
Cable
|
T-cable, Datalink
|
| 18. |
874759
|
[1] |
Extension cable
|
förlängningskabel, Easy Link-mätare, L=1,0m
|
| 18. |
3807043
|
[1] |
Extension cable
|
förlängningskabel, Easy Link-mätare, L=3.0m
|
