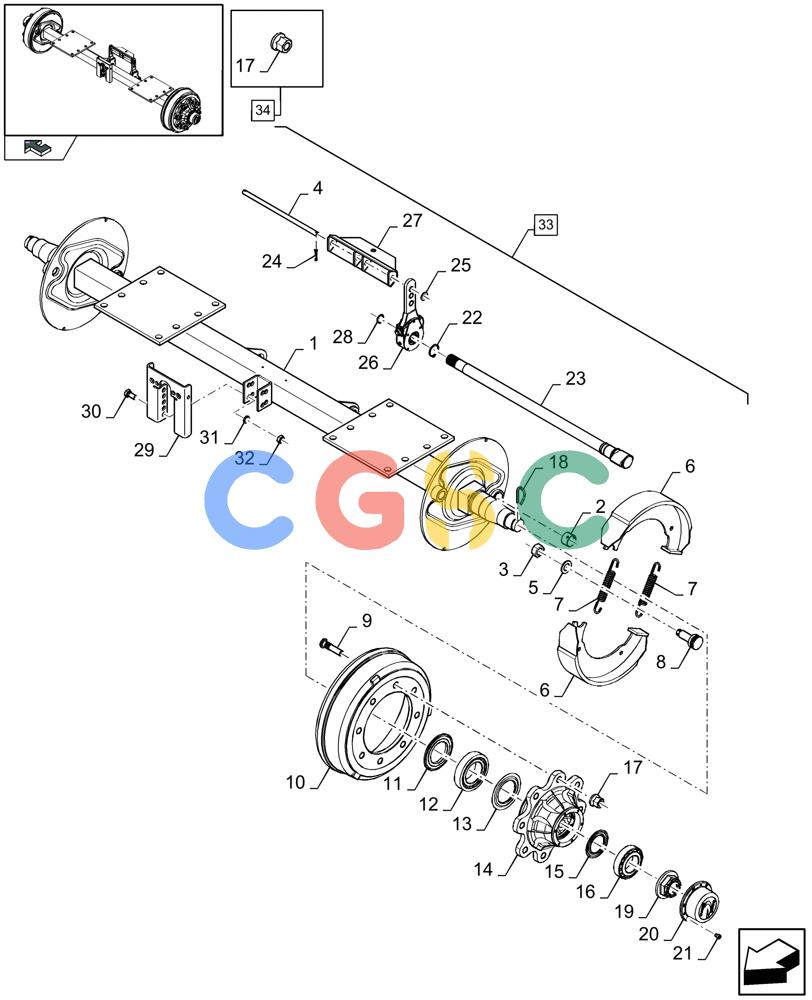

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (05.02[01]) - SINGLE AXLE, PNEUMATIC BRAKE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84212685
|
[1] |
AXLE
|
ZED
|
| 1. |
84212687
|
[1] |
AXLE
|
ZED
|
| 1. |
84212688
|
[1] |
AXLE
|
ZED
|
| 2. |
84014235
|
[2] |
SLEEVE
|
ZED
|
| 3. |
100024
|
[2] |
NUT,M24 x 1.5, Cl 8
|
MKT
|
| 4. |
84045542
|
[1] |
PIN
|
ZED
|
| 5. |
84220999
|
[2] |
LOCK WASHER
|
ZED
|
| 6. |
87612526
|
[4] |
BRAKE SHOE
|
ZED
|
| 7. |
84212731
|
[4] |
BRAKE SPRING
|
ZED
|
| 8. |
84212709
|
[2] |
PIN
|
ZED
|
| 9. |
87472615
|
[16] |
WHEEL BOLT
|
ZED
|
| 10. |
84043371
|
[2] |
DRUM
|
ZED
|
| 11. |
84807624
|
[2] |
SEAL
|
ZED
Superseded by part number: 84521823
|
| 11. |
84807629
|
[2] |
SEALING RING
|
ZED
|
| 12. |
84100483
|
[2] |
BALL BEARING,75mm ID x 130mm OD x 33.25mm W
|
ZED
Superseded by part number: 26800210
|
| 12. |
84041878
|
[2] |
TAPERED BEARING
|
ZED
Superseded by part number: 9832270
|
| 13. |
84100482
|
[2] |
RING
|
ZED
|
| 13. |
84100478
|
[2] |
RING
|
ZED
|
| 14. |
87354761
|
[2] |
HUB
|
ZED
|
| 14. |
87693636
|
[2] |
HUB
|
ZED
|
| 15. |
84100484
|
[2] |
RING
|
ZED
|
| 15. |
84041877
|
[2] |
SEALING RING
|
ZED
SEALRING
|
| 16. |
84100485
|
[2] |
BALL BEARING,60mm ID x 110mm OD x 29.75mm W
|
ZED
Superseded by part number: 87622924
|
| 16. |
84041879
|
[2] |
TAPERED BEARING
|
ZED
|
| 17. |
84045545
|
[16] |
WHEEL NUT
|
ZED
, Serial Range: -C859 Superseded by part number: 84288019
|
| 17. |
84288019
|
[16] |
WHEEL NUT
|
PLO
, Start Serial: D860
|
| 18. |
84212727
|
[2] |
COTTER PIN
|
ZED
|
| 19. |
84100486
|
[2] |
NUT
|
ZED
|
| 19. |
84100479
|
[2] |
NUT
|
ZED
|
| 20. |
87354753
|
[2] |
COVER
|
ZED
Superseded by part number: 84521831
|
| 20. |
84100510
|
[2] |
COVER
|
ZED
|
| 21. |
14301931
|
[12] |
HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd
|
LEC
|
| 22. |
300632
|
[2] |
SNAP RING,M38, External
|
ZED
Superseded by part number: 11068676
|
| 23. |
84014236
|
[2] |
SHAFT
|
A
|
| 23. |
84213204
|
[2] |
CAMSHAFT
|
ZED
|
| 24. |
412685
|
[2] |
COTTER PIN,M4 x 32
|
ZED
|
| 25. |
140069
|
[2] |
WASHER,M15 x 24 x 2 Thk
|
ZED
|
| 26. |
84213937
|
[2] |
LEVER
|
ZED
, Serial Range: -C859
|
| 26. |
84014238
|
[2] |
LEVER
|
ZED
, Start Serial: D860
|
| 27. |
84053856
|
[1] |
LEVER
|
ZED
|
| 27. |
84045543
|
[1] |
LEVER
|
ZED
|
| 28. |
84045556
|
[2] |
CIRCLIP
|
ZED
|
| 28. |
370002
|
[2] |
CIRCLIP,M25, External
|
NH
|
| 29. |
84213404
|
[1] |
SUPPORT
|
ZED
|
| 30. |
86509597
|
[4] |
BOLT,Hex, M30 x 14mm, Cl 8.8
|
NH
|
| 31. |
140047
|
[4] |
LOCK WASHER
|
ZED
Superseded by part number: 140047F, 140047F, 80140047
|
| 32. |
100065
|
[4] |
JAM NUT,M14 x 1.5, Cl 8
|
ZED
Superseded by part number: 80100065
|
| 33. |
84807490
|
[1] |
AXLE
|
ZED
(1 to 32)
|
| 33. |
84807492
|
[1] |
AXLE
|
ZED
(1 to 28)
|
| 33. |
84807496
|
[1] |
AXLE
|
ZED
(1 to 28)
|
| 34. |
84288018
|
[1] |
KIT
|
PLO
(17), (SET OF 16)
|
