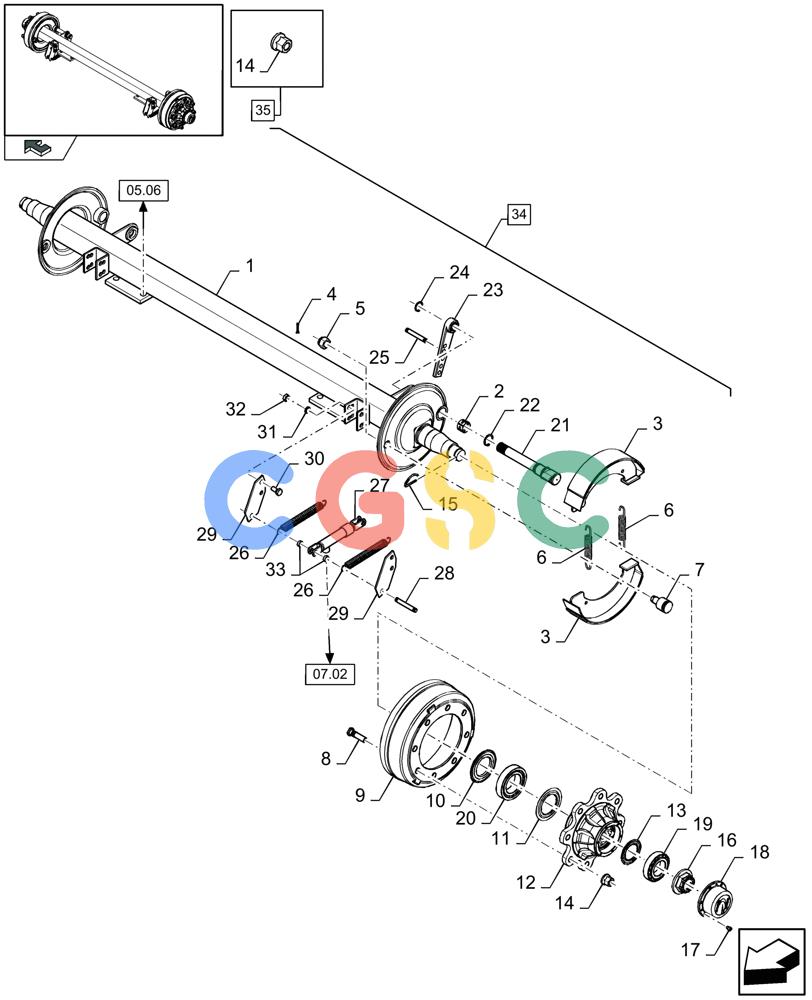

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (05.11[01]) - TANDEM AXLE, HYDRAULIC BRAKES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84214379
|
[1] |
FRONT AXLE
|
ZED
|
| 1. |
84214807
|
[1] |
FRONT AXLE
|
ZED
|
| 1. |
84214773
|
[1] |
REAR AXLE
|
ZED
|
| 1. |
84214808
|
[1] |
REAR AXLE
|
ZED
|
| 2. |
84014235
|
[2] |
SLEEVE
|
ZED
|
| 3. |
84100576
|
[4] |
BRAKE SHOE
|
ZED
|
| 4. |
412685
|
[2] |
COTTER PIN,M4 x 32
|
ZED
|
| 5. |
84807533
|
[2] |
NUT
|
ZED
|
| 6. |
84100575
|
[4] |
SPRING
|
ZED
|
| 7. |
84807532
|
[2] |
PIN
|
ZED
|
| 8. |
84014229
|
[16] |
BOLT
|
ZED
Superseded by part number: 87472615
|
| 9. |
84100577
|
[2] |
HUB
|
ZED
|
| 10. |
84807624
|
[2] |
SEAL
|
ZED
Superseded by part number: 84521823
|
| 11. |
84100482
|
[2] |
RING
|
ZED
|
| 12. |
87354761
|
[2] |
HUB
|
ZED
|
| 13. |
84100484
|
[2] |
RING
|
ZED
|
| 14. |
84045545
|
[16] |
WHEEL NUT
|
ZED
, Serial Range: -C859 Superseded by part number: 84288019
|
| 14. |
84288019
|
[16] |
WHEEL NUT
|
PLO
, Start Serial: D860
|
| 15. |
84212727
|
[2] |
COTTER PIN
|
ZED
|
| 16. |
84100486
|
[2] |
NUT
|
ZED
|
| 17. |
14301931
|
[12] |
HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd
|
LEC
|
| 18. |
87354753
|
[2] |
COVER
|
ZED
Superseded by part number: 84521831
|
| 19. |
84100485
|
[2] |
BALL BEARING,60mm ID x 110mm OD x 29.75mm W
|
ZED
Superseded by part number: 87622924
|
| 20. |
84100483
|
[2] |
BALL BEARING,75mm ID x 130mm OD x 33.25mm W
|
ZED
Superseded by part number: 26800210
|
| 21. |
84214383
|
[2] |
CAMSHAFT
|
ZED
|
| 22. |
300632
|
[2] |
SNAP RING,M38, External
|
ZED
Superseded by part number: 11068676
|
| 23. |
84214365
|
[1] |
LEVER
|
ZED
LEFT
|
| 23. |
84214364
|
[1] |
LEVER
|
ZED
RIGHT
|
| 24. |
370002
|
[2] |
CIRCLIP,M25, External
|
NH
|
| 25. |
84014244
|
[2] |
PIN
|
ZED
|
| 27. |
84014242
|
[2] |
CYLINDER
|
ZED
|
| 29. |
84100491
|
[4] |
SUPPORT
|
ZED
|
| 30. |
86509597
|
[8] |
BOLT,Hex, M30 x 14mm, Cl 8.8
|
NH
|
| 31. |
140047
|
[8] |
LOCK WASHER
|
ZED
Superseded by part number: 140047F, 140047F, 80140047
|
| 32. |
100065
|
[8] |
JAM NUT,M14 x 1.5, Cl 8
|
ZED
Superseded by part number: 80100065
|
| 33. |
84807633
|
[4] |
SPACER
|
ZED
|
| 34. |
84807542
|
[1] |
FRONT AXLE
|
ZED
(1 TO 33)
|
| 34. |
84807551
|
[1] |
FRONT AXLE
|
ZED
(1 TO 33)
|
| 34. |
84807543
|
[1] |
REAR AXLE
|
ZED
(1 TO 33)
|
| 34. |
84807552
|
[1] |
REAR AXLE
|
ZED
(1 TO 33)
|
| 35. |
84288018
|
[1] |
KIT
|
PLO
(14), (SET OF 16)
|
