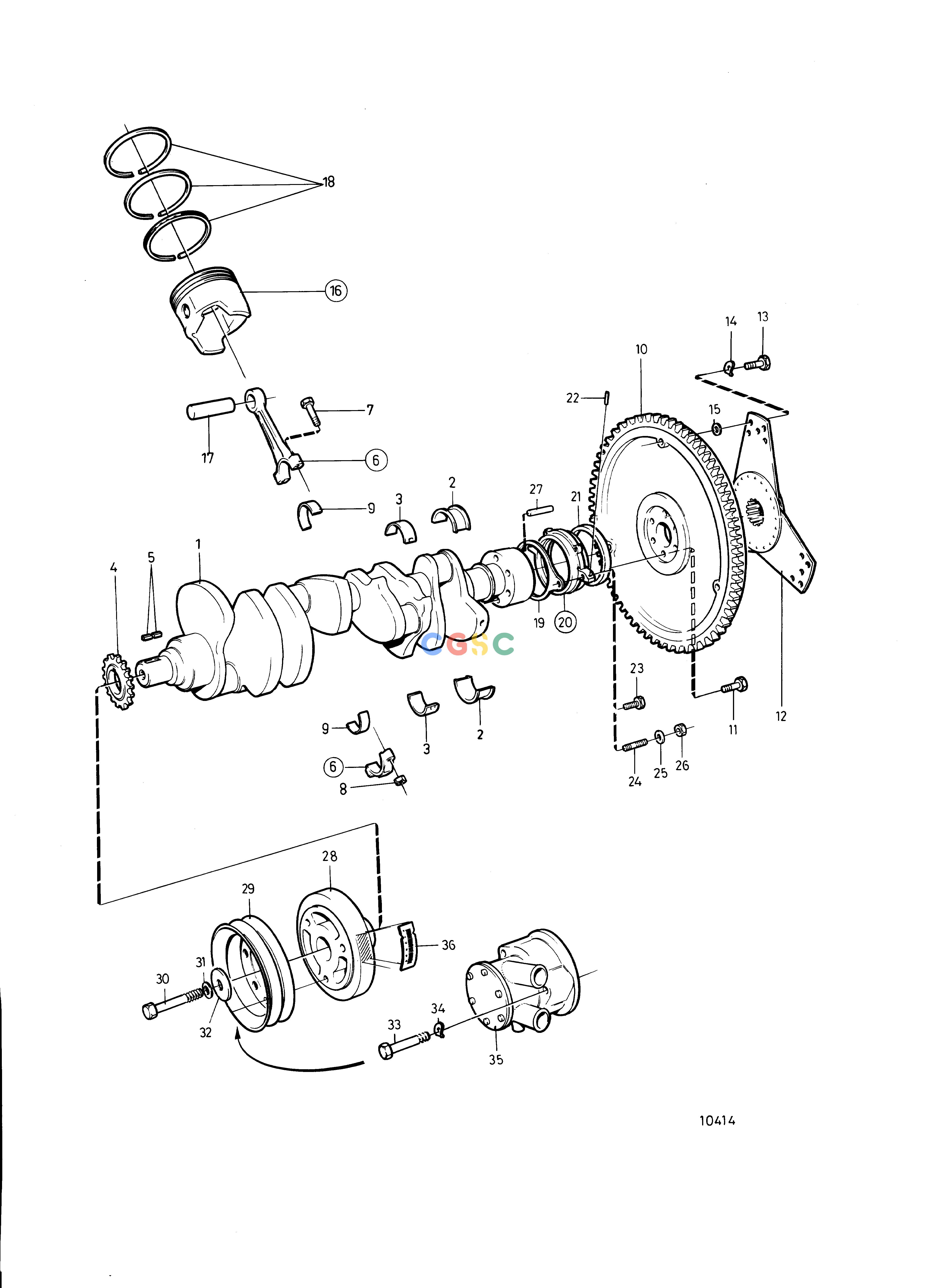

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1EngineCrankshaft and Related Parts: 501B/MS4EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
855806
|
[1] |
Crankshaft
|
|
| 2. |
856439
|
[1] |
Axial bearing
|
Std (835052)
|
| 2. |
856666
|
[1] |
Axial bearing
|
Under size 0,010'' (83505
|
| 2. |
856765
|
[1] |
Main bearing
|
Under size 0,020'' (83506
|
| 3. |
856739
|
[6] |
Main bearing
|
Std (835051)
|
| 3. |
841254
|
[1] |
Main bearing, main bearing shell
|
Std Repl by 856739
|
| 3. |
|
|
|
Lower
|
| 3. |
841255
|
[1] |
Main bearing, main bearing shell
|
Std, Repl by 876739
|
| 3. |
856342
|
[6] |
Main bearing
|
Under size 0,010'' (83505
|
| 3. |
856764
|
[6] |
Main bearing
|
Under size 0,020'' (83505
|
| 4. |
7736260_030
|
|
sprocket
|
|
| 5. |
835059
|
[2] |
Key
|
|
| 6. |
841867
|
[8] |
Connecting rod
|
|
| 7. |
835066
|
[16] |
Screw
|
|
| 8. |
835473
|
[16] |
Nut
|
|
| 9. |
856669
|
[8] |
Big-end bearing
|
Std (835273)
|
| 9. |
856740
|
[8] |
Big-end bearing
|
Under size 0,010'' (83539
|
| 9. |
856738
|
[8] |
Big-end bearing
|
Under size 0,020'' (83507
|
| 10. |
855833
|
[1] |
Flywheel
|
|
| 11. |
835439
|
[6] |
Screw
|
(855815)
|
| 12. |
855656
|
[1] |
Oscillation damper
|
|
| 13. |
835482
|
[3] |
Screw
|
|
| 14. |
942336
|
[3] |
Spring washer
|
|
| 15. |
940097
|
[3] |
Washer
|
|
| 16. |
856061
|
[8] |
Piston
|
Std
|
| 16. |
856062
|
[8] |
Piston
|
Std, Repl by 856061
|
| 16. |
856063
|
[8] |
Piston
|
Over size 0,030''
|
| 17. |
|
|
|
|
| 18. |
826469
|
[8] |
Piston ring kit
|
Std
|
| 18. |
826470
|
[8] |
Piston ring kit
|
Over size 0,030''
|
| 19. |
855810
|
[1] |
Gasket
|
|
| 20. |
855907
|
[1] |
Retainer
|
|
| 21. |
855809
|
[1] |
Crankshaft seal
|
|
| 22. |
855808
|
[2] |
Stud
|
|
| 23. |
855811
|
[2] |
Screw
|
L=20mm
|
| 23. |
855812
|
[1] |
Screw
|
|
| 24. |
855813
|
[1] |
Stud
|
|
| 25. |
955893
|
[1] |
Washer
|
|
| 26. |
955825
|
[1] |
Hexagon nut
|
|
| 27. |
835057
|
[1] |
Pin
|
|
| 28. |
856420
|
[1] |
Vibration damper
|
|
| 29. |
835407
|
[1] |
Pulley
|
|
| 30. |
949518
|
[1] |
Hexagon screw
|
|
| 31. |
835410
|
[1] |
Lock washer
|
|
| 32. |
835409
|
[1] |
Washer
|
|
| 33. |
948324
|
[3] |
Hex. socket screw
|
|
| 34. |
942336
|
[3] |
Spring washer
|
|
| 35. |
|
|
|
See group 2B
|
| 36. |
856017
|
[1] |
Decal
|
|
