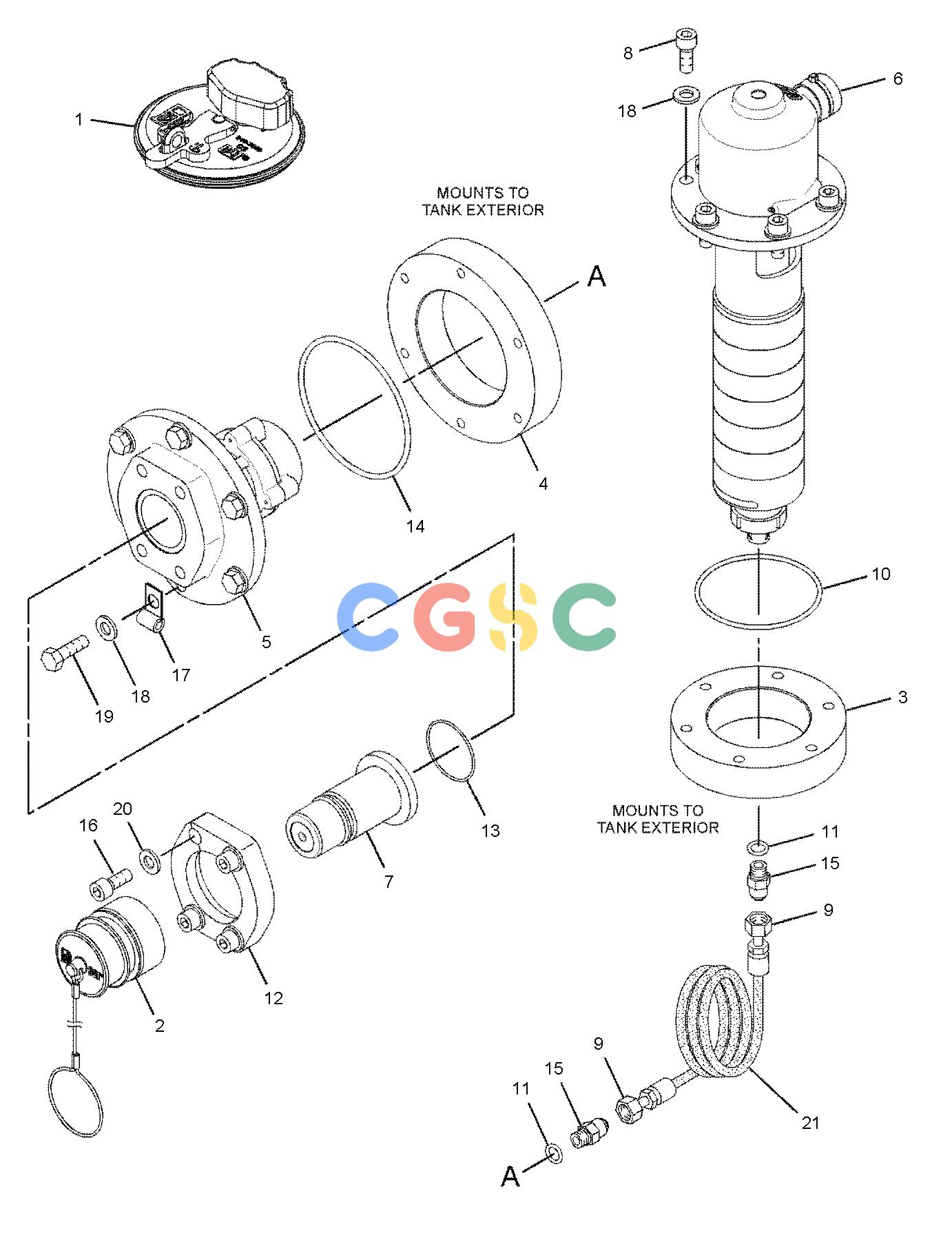

卡特零件查询（730） 285-1202: ADAPTER GP-FAST FILL FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
990 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 349-7059 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 350-7735 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES BODY, GASKET, SCREWS, & WASHERS) |
| | 7D-7111 | [1] | SEAL-O-RING | |
| 2. | 388-4327 | [1] | CAP-DUST | |
| 3. | 221-5303 | [1] | PLATE | |
| 4. | 221-5304 | [1] | PLATE | |
| 5. | 252-5806 | [1] | VALVE AS-SHUTOFF(FAST FILL FUEL) | |
| 6. | 317-3252 | [1] | VENT AS-FUEL TANK | |
| 7. | 376-1308 | [1] | RECEIVER AS(FAST FILL FUEL) | |
| 8. | 105-3484M | [6] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 9. | 253-1371 | [2] | COUPLING AS-PERMANENT | |
| 10. | 1H-8128 | [1] | SEAL-O-RING | |
| 11. | 1J-9671 | [2] | SEAL-O-RING | |
| 12. | 1P-4582 | [2] | FLANGE-HALF | |
| 13. | 4J-0527 | [1] | SEAL-O-RING | |
| 14. | 5H-6734 | [1] | SEAL-O-RING | |
| 15. | 5P-2618 | [2] | CONNECTOR | |
| 16. | 6V-8200M | [4] | BOLT-SOCKET HEAD(M12X1.75X35-MM) | |
| 17. | 8M-2772 | [1] | CLIP(LOOP) | |
| 18. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 20. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 224-7696E | | HOSE(183-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
