神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-058) - DRIER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
380 次

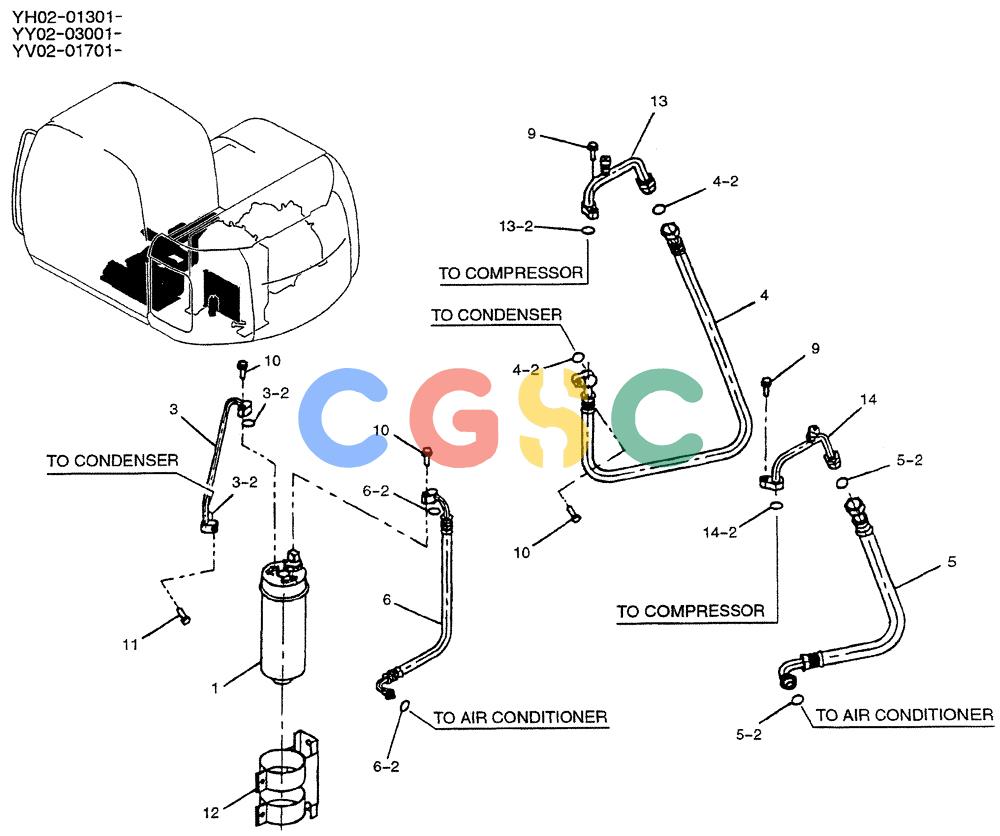

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV96V00001F3 | [1] | RECEIVER-DRYER | KOBASSY, AIR Superseded by part number: YV96V00001F6 |
| 1. | YT54S00002P1 | [1] | RECEIVER-DRYER | KOBSensor NSS |
| 3. | YX20M01028F1 | [1] | TUBE | KOB Superseded by part number: YV20M01038F2 |
| 3-2. | 2445Z1604D6 | [2] | O-RING | KOB08mm |
| 4. | YT20M01066F1 | [1] | HOSE ASSY. | KOB |
| 4-2. | 2445Z1604D4 | [2] | O-RING | KOB1/2 in |
| 5. | YV20M01024F1 | [1] | HOSE ASSY. | KOB |
| 5-2. | 2445Z1604D5 | [2] | O-RING | KOB5/8 in |
| 6. | YV20M01030F1 | [1] | HOSE ASSY. | KOB |
| 6-2. | 2445Z1604D6 | [2] | O-RING | KOB08mm |
| 9. | YT96V00001S009 | [2] | SCREW | KOBScrew -- M08x25mm Long |
| 10. | YT96V00001S010 | [3] | CAP | KOBScrew -- M06x25mm Long |
| 11. | YT20M00009S005 | [1] | BOLT | KOB |
| 12. | YN20M01355P1 | [1] | BRACKET | KOB |
| 13. | YV20M01034F1 | [1] | TUBE | KOBDischarge |
| 13-2. | 2445Z1604D4 | [1] | O-RING | KOB1/2 in |
| 14. | YV20M01035F1 | [1] | TUBE | KOBSuction |
| 14-2. | 2445Z1604D5 | [1] | O-RING | KOB5/8 in |
