神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-060) - FILTER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
349 次

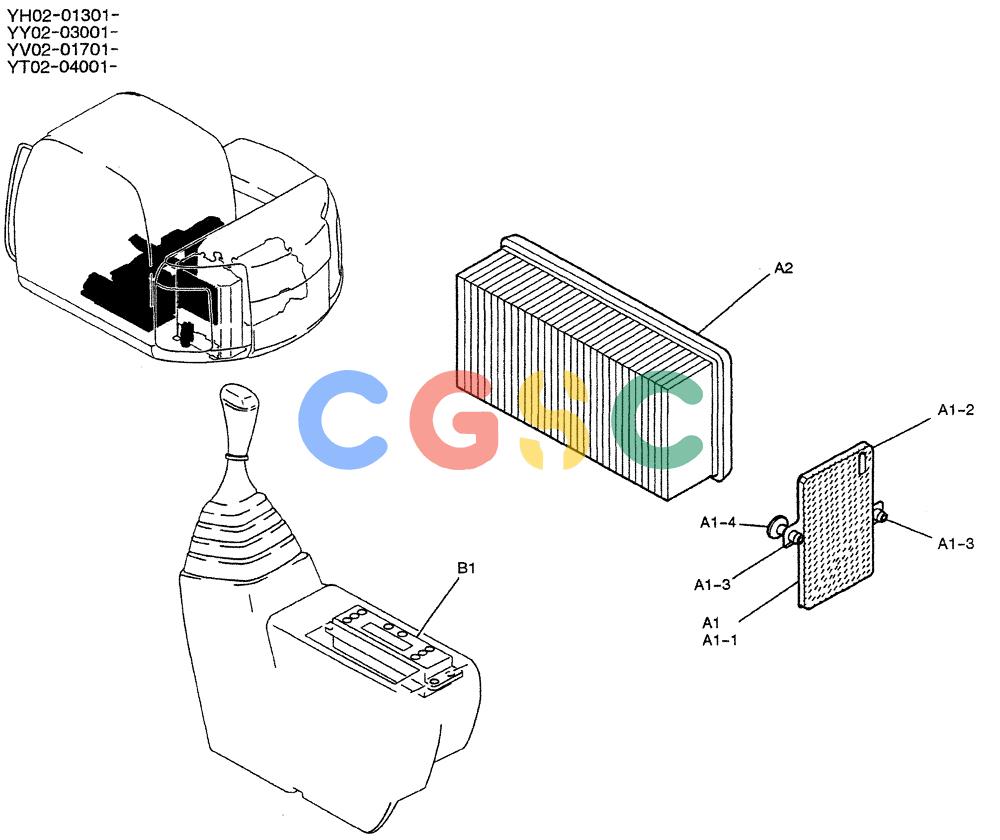

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT95V00001F1 | [1] | FILTER ASSY | KOBAIR |
| A1. | YT50V01001F1 | [1] | COVER | KOBASSY Superseded by part number: YT50V01001P1 |
| A1-1. | YT50V01001S001 | [1] | COVER | KOB |
| A1-2. | YT50V01001S002 | [1] | CAB FILTER | KOB |
| A1-3. | YT50V01001S003 | [2] | GROMMET | KOB |
| A1-4. | YT50V01001S004 | [2] | CATCH | KOB |
| A2. | YT50V01002P1 | [1] | FILTER | KOB Superseded by part number: 84477962 |
| B1. | YT20M01104F1 | [1] | PANEL | KOBASSY |
