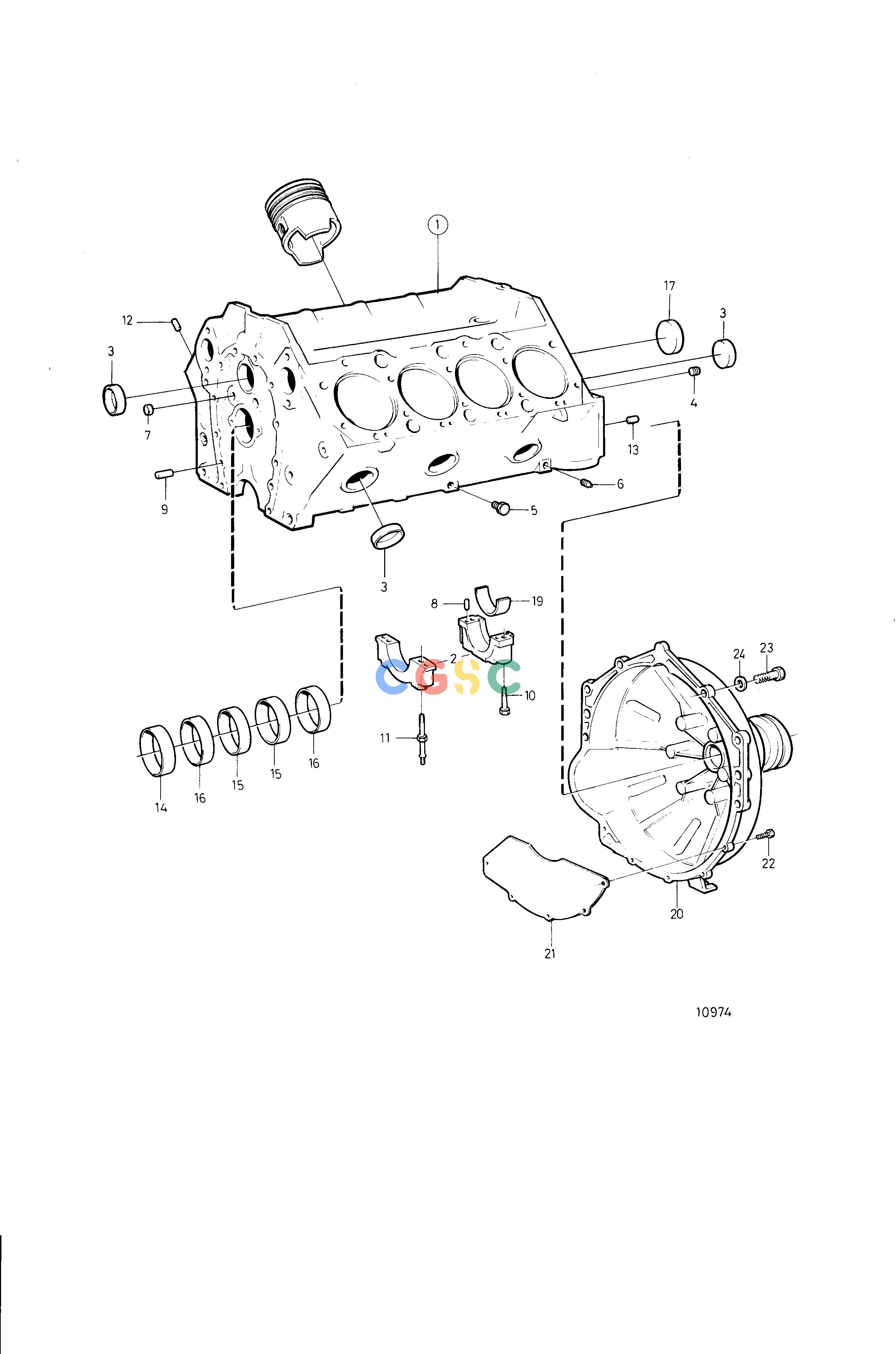

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1EngineCylinder Block and Flywheel CasingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
835039
|
[8] |
Expansion plug
|
|
| 4. |
968145
|
[4] |
Plug
|
|
| 5. |
192134
|
[2] |
Plug
|
|
| 6. |
856546
|
[3] |
Plug
|
|
| 7. |
856547
|
[2] |
Plug
|
|
| 8. |
835040
|
[2] |
Locating pin
|
|
| 9. |
835040
|
[2] |
Locating pin
|
|
| 10. |
856548
|
[6] |
Bolt
|
Short
|
| 10. |
856549
|
[10] |
Screw
|
Long
|
| 11. |
856550
|
[4] |
Ball screw
|
|
| 12. |
856551
|
[4] |
Locating pin
|
|
| 13. |
818989
|
[2] |
Locating pin
|
|
| 14. |
856552
|
[1] |
Bearing
|
|
| 15. |
856553
|
[2] |
Bearing
|
|
| 16. |
856554
|
[2] |
Bearing
|
|
| 17. |
856555
|
[1] |
Expansion plug
|
|
| 18. |
7736260_026
|
|
piston
|
|
| 19. |
7736260_026
|
|
main bearing kit
|
|
| 20. |
872113
|
[1] |
Flywheel housing
|
|
| 21. |
854939
|
[1] |
Cover plate
|
|
| 22. |
947224
|
[5] |
Hexagon screw
|
|
| 23. |
955536
|
[6] |
Hexagon screw
|
|
| 24. |
942336
|
[6] |
Spring washer
|
|
