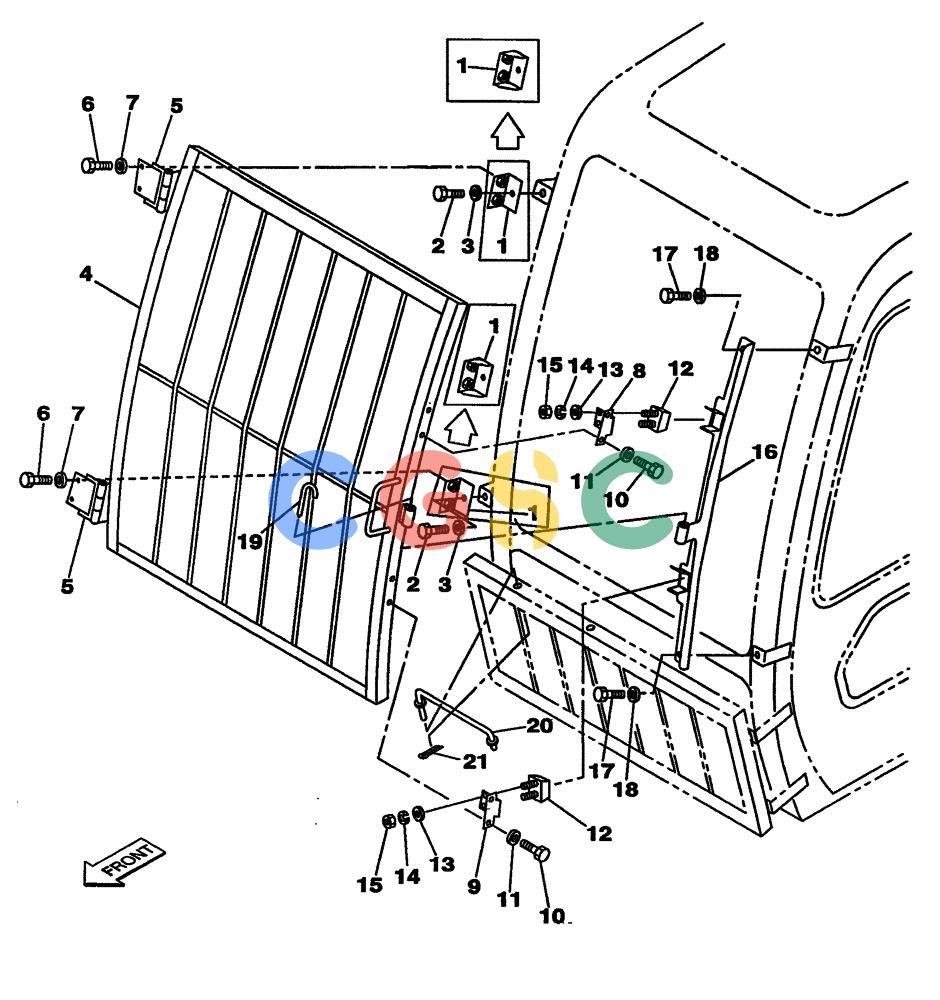

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-077-00[01]) - CAB GUARD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
259 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHN3387 | [1] | SUPPORT | SUM |
| 2. | 159657A1 | [2] | BOLT,High Strength, M10 | SUMM10 x 20; 10.9 |
| 3. | 150409A1 | [2] | WASHER | SUM0,5 x 21 x 3,2 mm |
| 4. | KHN2891 | [1] | STONEGUARD | SUM Superseded by part number: KHN3388 |
| 4. | KHN3388 | [1] | STONEGUARD | SUM |
| 5. | NSS | [2] | NOT SERVICED SEPARATELY | CON |
| 8. | KHN2875 | [1] | BRACKET | SUM |
| 9. | KHN2876 | [1] | BRACKET | SUM |
| 12. | KRN2098 | [2] | STOP | SUM |
| 14. | 140028 | [4] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 15. | 162R010VR | [4] | NUT | SUM Superseded by part number: 86500689 |
| 16. | KHN3386 | [1] | SUPPORT | SUM |
| 19. | KHN2878 | [1] | PIN | SUM |
| 20. | 159101A1 | [1] | STAY | SUM |
| 21. | 153181A1 | [1] | COTTER PIN | SUM |
