神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-002) - CYLINDER HEAD COVER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
703 次

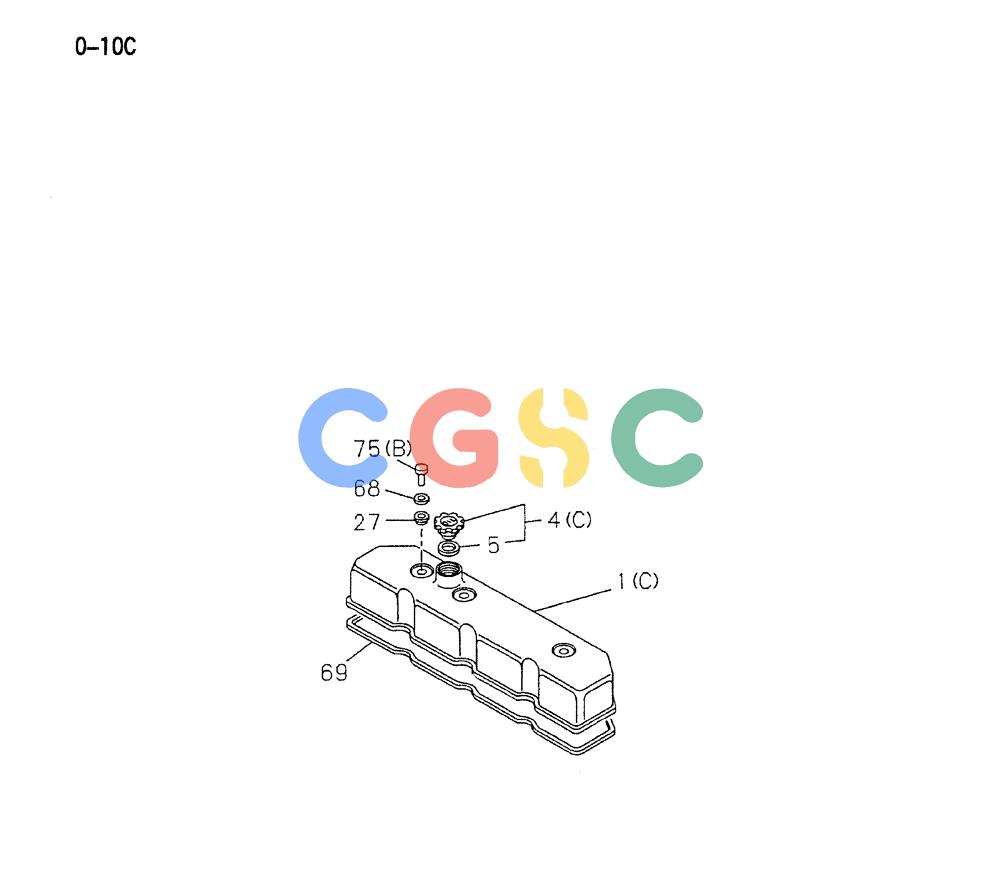

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONCYLINDER HEAD COVER |
| 1(C). | VI8972237600 | [1] | COVER | KOBCYL HD |
| 4(C). | VI8943997230 | [1] | CAP | KOBOIL FILLER |
| 5. | VI8943996890 | [1] | GASKET, OIL FILLER | |
| 27. | VI9111790300 | [3] | GASKET | KOBHD COVER Superseded by part number: VI1096390320 |
| 68. | VI9111791050 | [3] | WASHER | KOBCAP NUT, HD COVER |
| 69. | VI8973262510 | [1] | PACKING | KOBGASKET, HD TO COVER Superseded by part number: 87418207 |
| 75(B). | VI9111750120 | [3] | NUT | KOBCAP, HD COVER |
