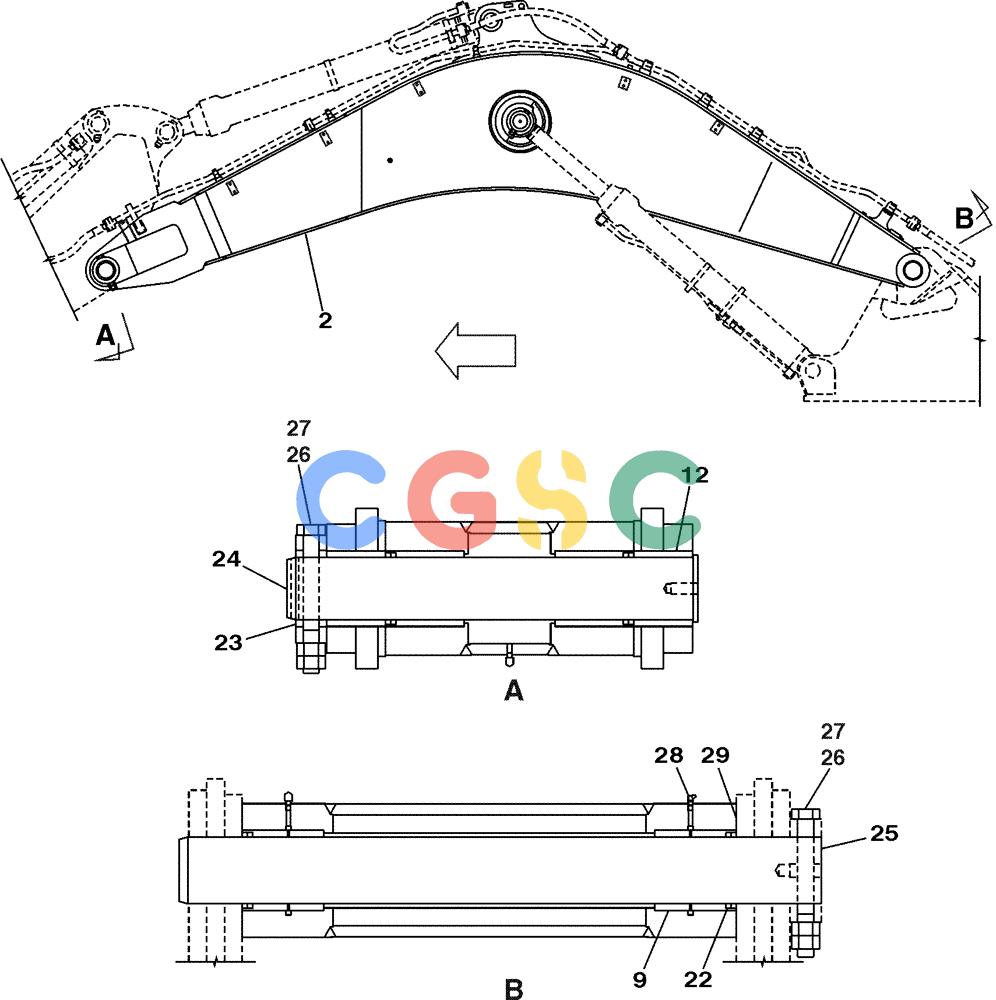

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-097-00[01]) - MONOBLOCK BOOM - 7,25 M (23 FT 9 IN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
559 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUV0365 | [1] | BOOM | SUM |
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 9. | KUV0034 | [2] | BUSHING | SUM |
| 12. | KUV0033 | [2] | BUSHING | SUM |
| 22. | KHV0291 | [4] | SEAL | SUM |
| 23. | KUV0038 | [1] | COLLAR | SUM |
| 24. | KUV0022 | [1] | PIN | SUM |
| 25. | KUV0023 | [1] | PIN | SUM |
| 26. | KUV0089 | [2] | BOLT | SUM |
| 27. | 172R036VN | [4] | NUT | SUM |
| 28. | 153631A1 | [1] | LUBE NIPPLE,1/8"-27 NPT | SUM |
| 29. | KHV0288 | [1] | SHIM | SUM |
