纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-097-02[01]) - LUBRICATION CIRCUIT BOOM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
129 次

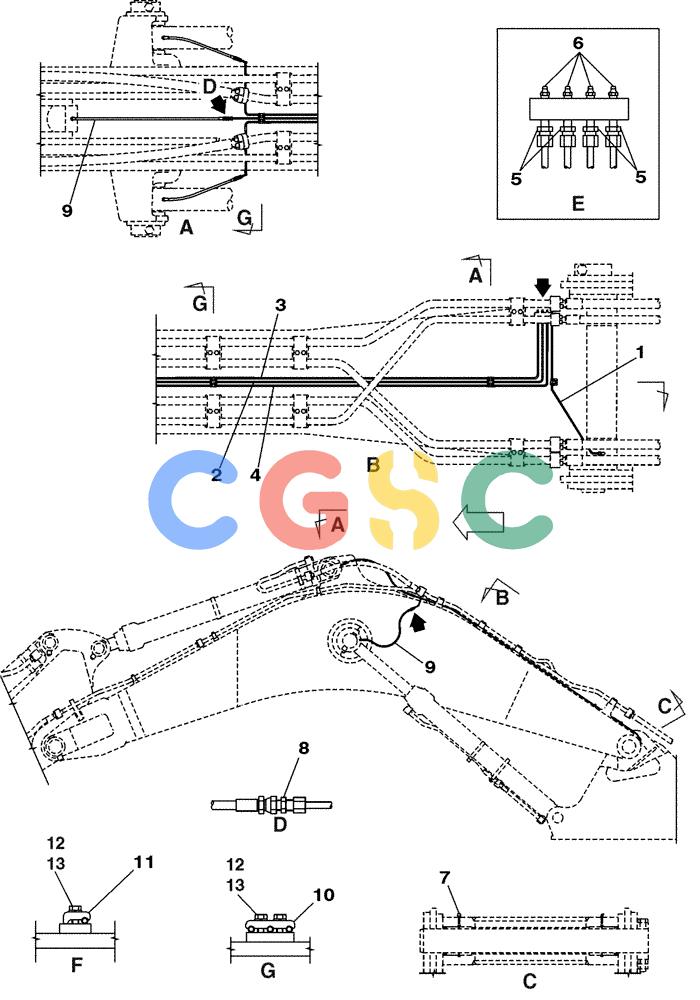

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUV0121 | [1] | TUBE ASSY.,6 mm ID x 8 mm OD | SUM |
| 2. | KUV0122 | [1] | TUBE ASSY.,6 mm ID x 8 mm OD | SUM |
| 3. | KUV0123 | [1] | HYD. TUBE,6 mm ID x 8 mm OD | SUM |
| 4. | KUV0124 | [1] | TUBE ASSY.,6 mm ID x 8 mm OD | SUM |
| 5. | 152599A1 | [4] | MULTIPOLE CONNECTOR | SUM |
| 6. | 153630A1 | [4] | LUBE NIPPLE | SUM |
| 7. | 152627A1 | [1] | ELBOW | SUM |
| 8. | 152032A1 | [3] | UNION | SUM |
| 9. | KRJ2876 | [3] | HOSE,1100.00 mm | SUM |
| 10. | 151497A1 | [3] | CLAMP | SUM Superseded by part number: KHV0340 |
| 11. | 168377A1 | [1] | CLAMP | SUM Superseded by part number: 151504A1 |
| 12. | 627-8025 | [7] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43234 |
| 13. | 153081A1 | [7] | WASHER | SUM |
