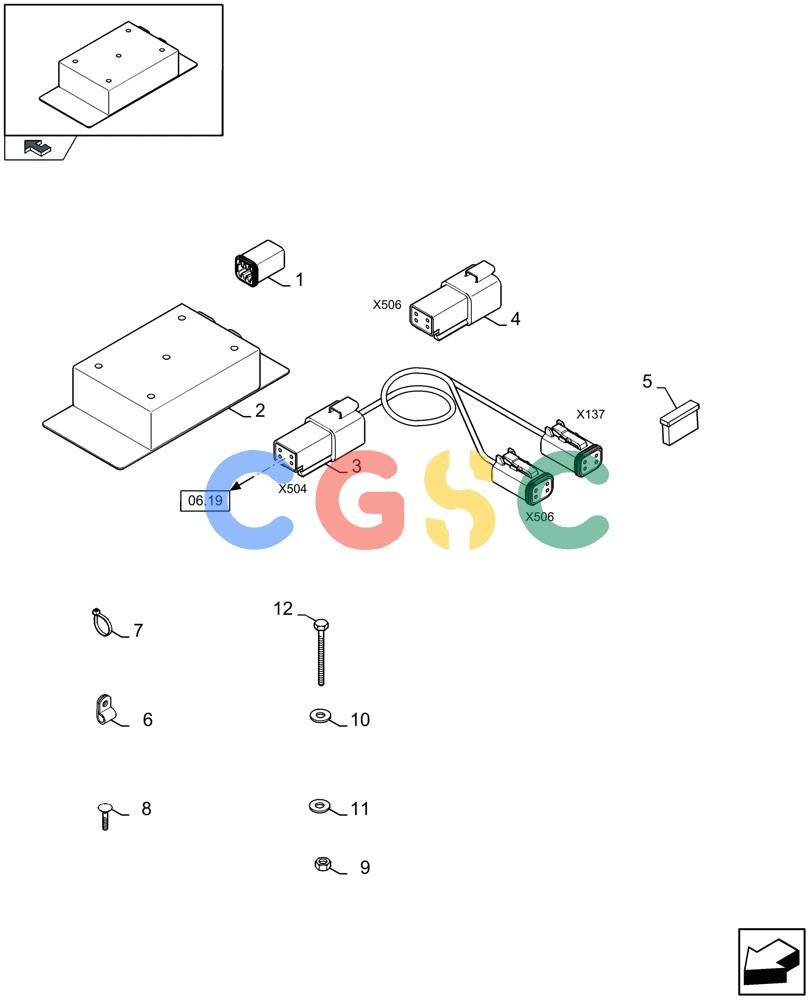

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (06.09[01]) - MOISTURE SENSOR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
450 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87395160
|
[1] |
CABLE
|
ZED
, Serial Range: -C939 Superseded by part number: 84597962
|
| 1. |
84597962
|
[1] |
CABLE
|
ZED
, Start Serial: D940
|
| 2. |
87395162
|
[1] |
MODULE
|
ZED
, Serial Range: -C813 Superseded by part number: 84597957
|
| 2. |
84258978
|
[1] |
ECU
|
ZED
, Serial Range: -F814939 Superseded by part number: 84597957
|
| 2. |
84597957
|
[1] |
CONTROL UNIT
|
ZED
, Start Serial: D940
|
| 3. |
84460028
|
[1] |
WIRE HARNESS
|
ZED
, Serial Range: -C939
|
| 3. |
84597954
|
[1] |
WIRE HARNESS
|
ZED
, Start Serial: D940
|
| 4. |
87380352
|
[1] |
ELEC CONNECTOR
|
ZED
|
| 5. |
84320044
|
[1] |
FUSE,5 Amp
|
ZED
, Start Serial: D868 Superseded by part number: 87693742
|
| 6. |
9848767
|
[9] |
CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type
|
NH
, Start Serial: D868
|
| 7. |
86566989
|
[5] |
CABLE TIE,208mm L
|
ZED
CABLE STRAP, Start Serial: D868
|
| 8. |
86507486
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
, Start Serial: D868
|
| 9. |
9706690
|
[22] |
NUT,M8 x 1.25, Cl 8
|
NH
, Start Serial: D868 Superseded by part number: 43362
|
| 10. |
322358
|
[14] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
, Start Serial: D868
|
| 11. |
378243
|
[4] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
, Start Serial: D868 Superseded by part number: 63707, 63707, 86625263
|
| 12. |
366046
|
[8] |
CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8
|
WIN
, Start Serial: D868 Superseded by part number: 120040
|
