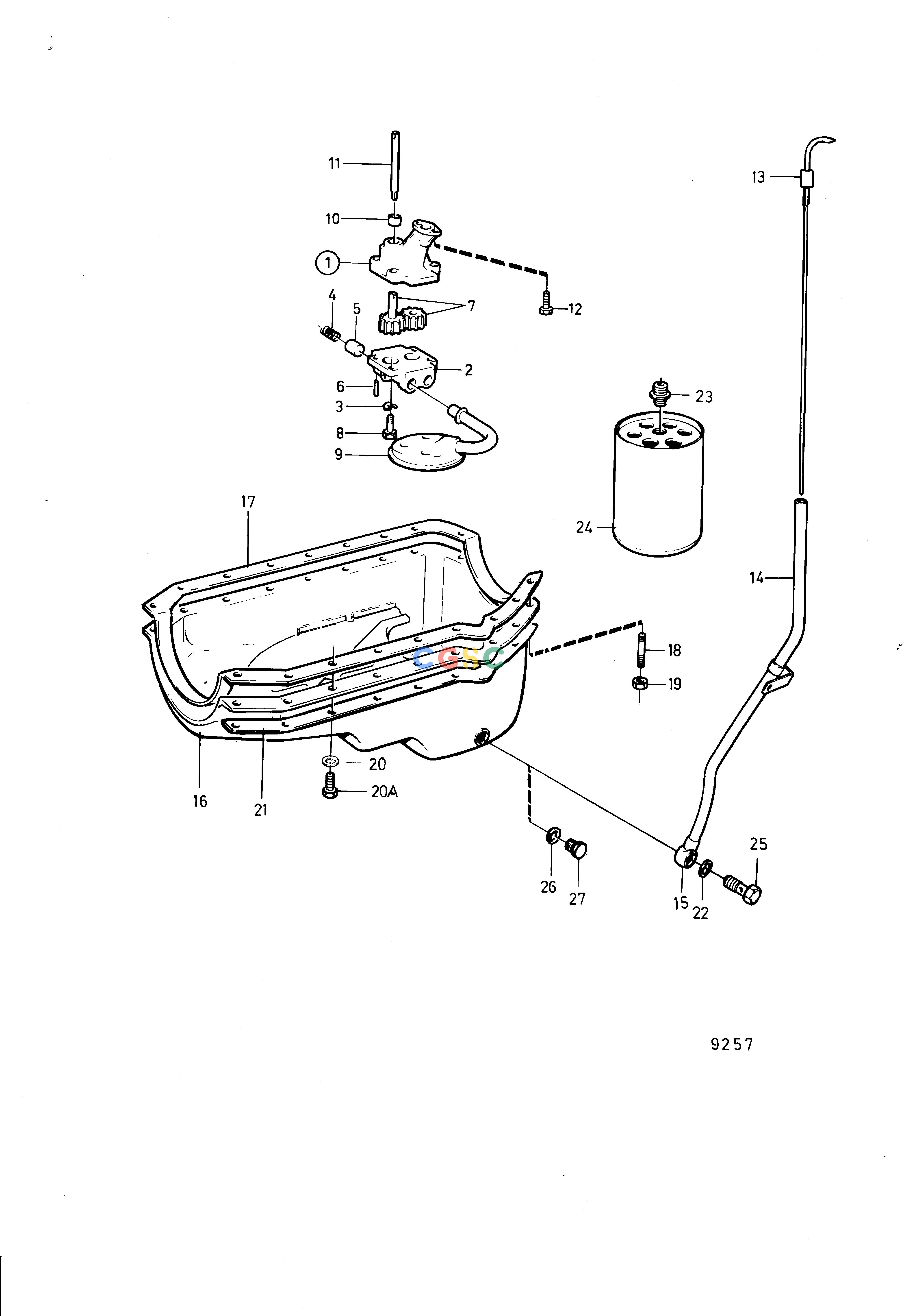

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1EngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856390
|
[1] |
Oil pump
|
Included in basic engine, See group 10A
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
835372
|
[1] |
Oil strainer
|
|
| 10. |
835374
|
[1] |
Sleeve
|
|
| 11. |
835373
|
[1] |
Shaft
|
|
| 12. |
955550
|
[1] |
Hexagon screw
|
|
| 13. |
835414
|
[1] |
Oil dipstick
|
|
| 14. |
856248
|
[1] |
Tube
|
|
| 15. |
|
|
|
|
| 16. |
856386
|
[1] |
Sump
|
Included in basic engine, See group 10A
|
| 17. |
856402
|
[1] |
Gasket
|
|
| 18. |
855808
|
[2] |
Stud
|
Included in seal 855907.
|
| 19. |
945457
|
[2] |
Nut
|
|
| 20. |
955893
|
[12] |
Washer
|
|
| 20A. |
940100
|
[12] |
Hexagon screw
|
|
| 21. |
856388
|
[1] |
Reinforcement
|
Right side
|
| 21. |
856389
|
[1] |
Reinforcement
|
Left side
|
| 22. |
841953
|
[1] |
Gasket
|
|
| 23. |
856391
|
[1] |
Retainer
|
|
| 24. |
841750
|
[1] |
Oil filter
|
|
| 25. |
954393
|
[1] |
Hollow screw
|
|
| 26. |
856295
|
[1] |
Gasket
|
|
| 27. |
841215
|
[1] |
Plug
|
|
