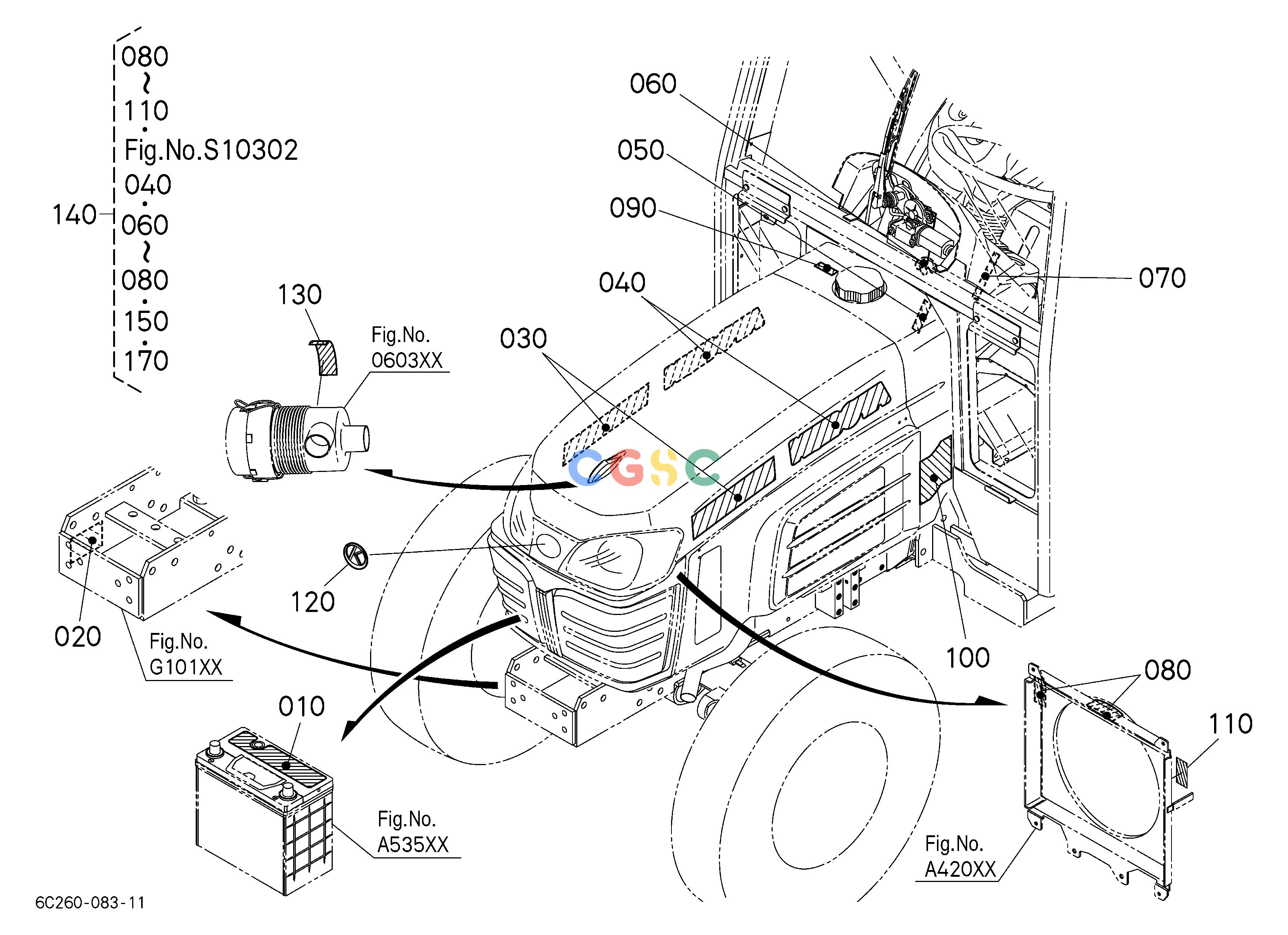

久保田零件查询S10202 LABEL (FRONT) [ENGLISH] LABELSEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30030120
|
[1] |
LABEL,BATTERY
|
0.0022(lbs); 0.001
|
| 010. |
6C30030122
|
[1] |
LABEL,BATTERY
|
0.0022(lbs); 0.001
|
| 020. |
99999-99999
|
[1] |
NAME PLATE
|
0.0110(lbs); 0.005
|
| 030. |
6C26047250
|
[2] |
MARK
|
0.0198(lbs); 0.009
|
| 040. |
TD06080930
|
[2] |
LABEL(KUBOTA)
|
0.0154(lbs); 0.007
|
| 040. |
7J29258452
|
[2] |
LABEL(KUBOTA)
|
0.0154(lbs); 0.007
|
| 050. |
6C04047512
|
[1] |
LABEL,PARKING
|
0.0022(lbs); 0.001
|
| 060. |
6C07047213
|
[1] |
MARK,MAIN SWITCH
|
0.0022(lbs); 0.001
|
| 070. |
6C04247400
|
[1] |
LABEL,4WD
|
0.0022(lbs); 0.001
|
| 080. |
3275149580
|
[2] |
LABEL,FAN BELT
|
0.0022(lbs); 0.001
|
| 090. |
TC42049560
|
[1] |
LABEL(FILLER,E4)
|
0.0022(lbs); 0.001
|
| 100. |
6C09049650
|
[1] |
LABEL,START CAUTION
|
0.0110(lbs); 0.005
|
| 110. |
TA04049580
|
[1] |
LABEL,MUFFLER
|
0.0022(lbs); 0.001
|
| 120. |
T106049500
|
[1] |
MARKING(K SYMBOL)
|
0.0220(lbs); 0.010
|
| 130. |
3272158282
|
[1] |
LABEL,CAUTION
|
0.0022(lbs); 0.001
|
| 140. |
6C20047405
|
[1] |
KIT LABEL,SAFETY
|
0.1056(lbs); 0.048
|
