神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-016) - FAN AND FAN BELT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
341 次

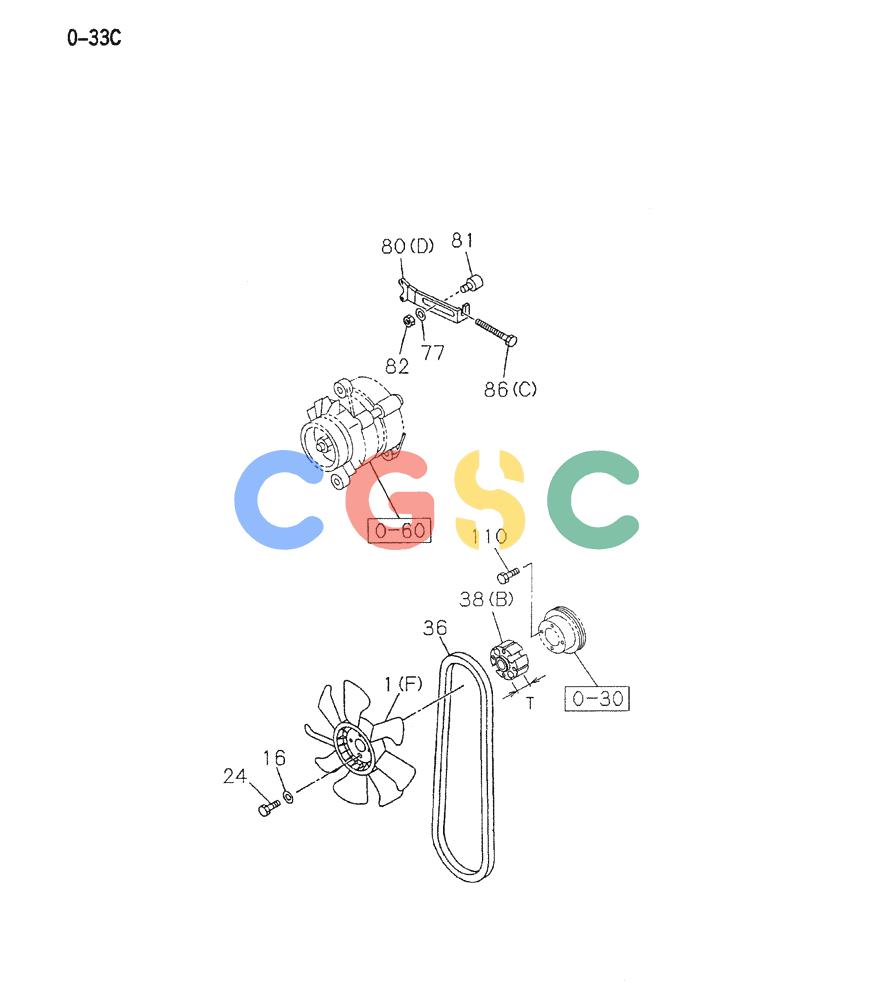

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONFAN AND FAN BELT |
| 1(F). | VI8971615990 | [1] | FAN | KOBCOOLING (D=550-8) |
| 16. | VI9091606080 | [4] | WASHER | KOBPL, COOLING FAN |
| 24. | VI0500408800 | [4] | BOLT | KOBFAN (M8X80, W/LK WASHER) |
| 36. | VI1136712830 | [1] | SET OF 2 BELTS | KOBCOOLING FAN (2-PIECES SET, L=1226) Superseded by part number: VAME034971 |
| 38(B). | VI1136420630 | [1] | SPACER | KOBFAN (T=66.0) |
| 77. | VI9091647120 | [1] | WASHER | KOBPL, GEN TO ADJ PLATE Superseded by part number: VI0916147120 |
| 80(D). | VI1136741192 | [1] | ADJUSTING PLATE | KOB |
| 81. | VI1136741600 | [1] | SLIDE | KOBPIECE, SLIDING |
| 82. | VI0911501120 | [1] | NUT | KOBADJ PLATE |
| 86(C). | VI1090091131 | [1] | BOLT | KOBADJ (M10X135) |
| 110. | VI9034906100 | [2] | SCREW | KOBSCREW, PULLEY (M6X10) Superseded by part number: 289760A1 |
