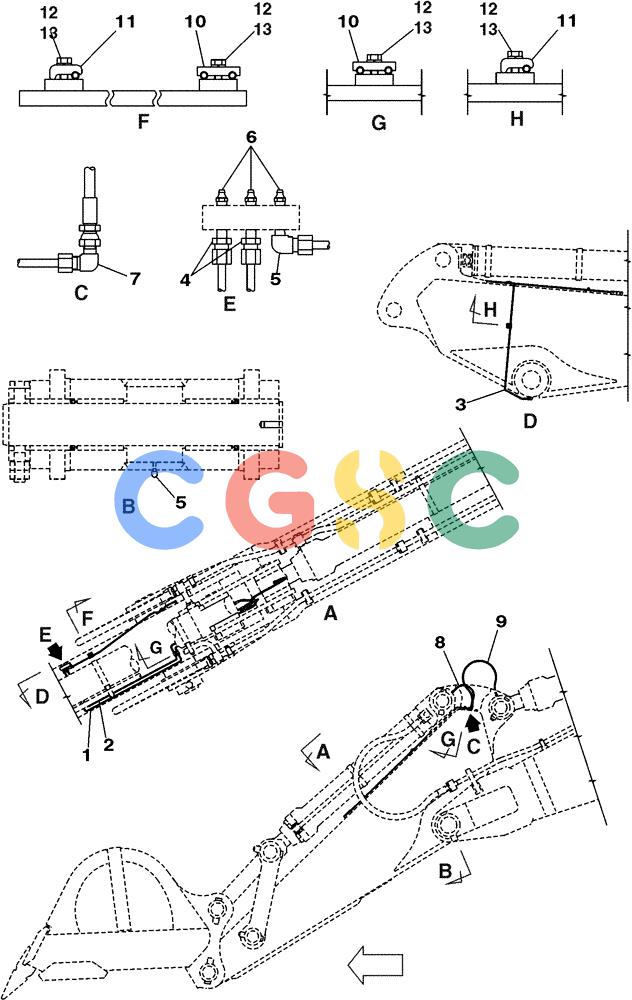

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-101-04[01]) - LUBRICATION CIRCUIT DIPPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
948 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUV0125 | [1] | HYD. TUBE,6 mm ID x 8 mm OD | SUM |
| 2. | KUV0126 | [1] | HYD. TUBE,6 mm ID x 8 mm OD | SUM |
| 3. | KUV0127 | [1] | HYD. TUBE,6 mm ID x 8 mm OD | SUM |
| 4. | 152599A1 | [2] | MULTIPOLE CONNECTOR | SUM |
| 5. | 152627A1 | [2] | ELBOW | SUM |
| 6. | 153630A1 | [3] | LUBE NIPPLE | SUM |
| 7. | 153695A1 | [2] | ELBOW | SUM |
| 8. | 150983A1 | [1] | HOSE ASSY. | SUM |
| 9. | KRJ2876 | [1] | HOSE,1100.00 mm | SUM |
| 10. | 153774A1 | [3] | CLAMP | SUM |
| 11. | 168377A1 | [2] | CLAMP | SUM Superseded by part number: 151504A1 |
| 12. | 627-8025 | [5] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43234 |
| 13. | 153081A1 | [5] | WASHER | SUM |
