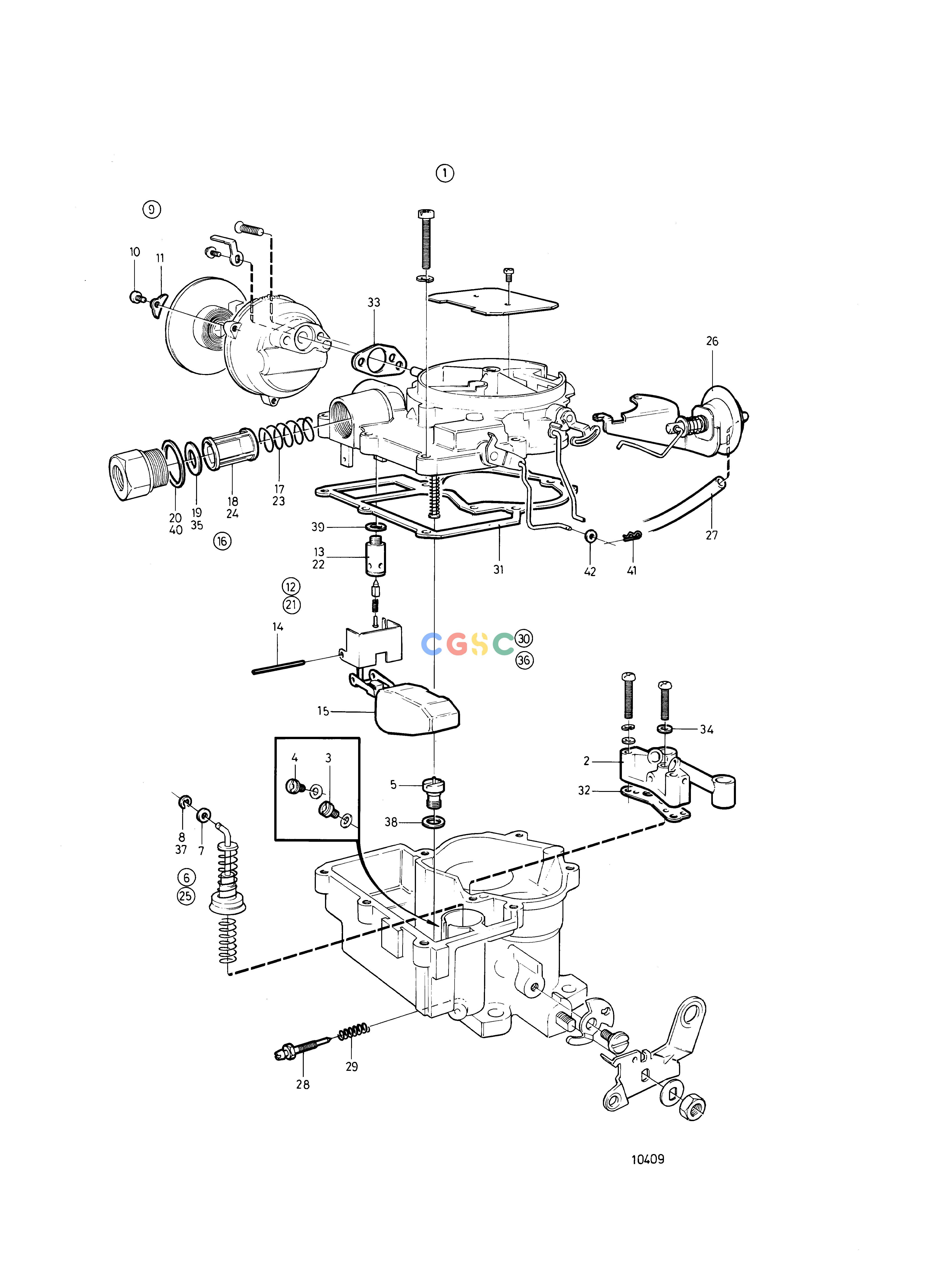

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Fuel SystemCarburetorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856845
|
[1] |
Carburettor
|
|
| 2. |
856930
|
[1] |
Venturi
|
|
| 3. |
856934
|
[1] |
Main jet
|
Level side.
|
| 4. |
856935
|
[1] |
Nozzle
|
Choke side
|
| 5. |
856933
|
[1] |
Nozzle
|
|
| 6. |
856936
|
[1] |
Acceleration pump
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
856937
|
[1] |
Choke kit
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
856938
|
[1] |
Float kit
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
856939
|
[1] |
Fuel filter insert
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
856940
|
[1] |
Overhaul kit
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
856936
|
[1] |
Acceleration pump
|
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
|
|
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
|
|
|
|
| 34. |
|
|
|
|
| 35. |
|
|
|
|
| 36. |
|
|
|
|
| 37. |
|
|
|
|
| 38. |
|
|
|
|
| 39. |
|
|
|
|
| 40. |
|
|
|
|
| 41. |
|
|
|
|
| 42. |
|
|
|
|
