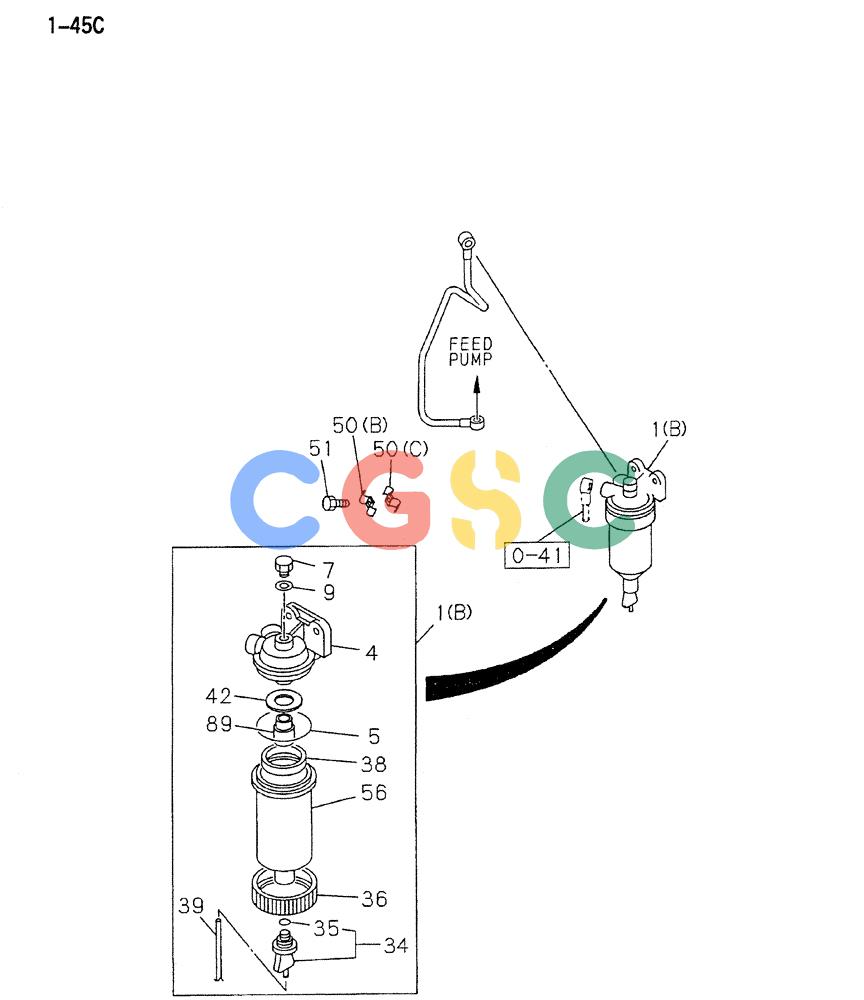

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-029) - WATER SEDIMENTER; FUEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONWATER SEDIMENTER; FUEL |
| 1(B). | VI8972186470 | [1] | OIL SEPARATOR | KOBSEDIMENTER, FUEL |
| 4. | VI8972891170 | [1] | COVER, UPR, SEDIMENTER ASM | |
| 5. | VI8941551830 | [1] | GASKET | KOBUPR COVER, SEDIMENTER |
| 7. | VI8972134730 | [1] | PLUG, DRAIN, SEDIMENTER | |
| 9. | VI8972134740 | [1] | GASKET | KOBDRAIN PLUG & CONNECTOR |
| 34. | VI8972891320 | [1] | PLUG | KOBDRAIN, FUEL FILTER |
| 35. | VI8972891330 | [1] | GASKET | KOBDRAIN PLUG |
| 36. | VI8972891310 | [1] | RING, BODY TO CASE | |
| 38. | VI8972891250 | [1] | FLOAT, SEDIMENTER | |
| 39. | VI8972891360 | [1] | HOSE, SEDIMENTER | |
| 42. | VI8972891340 | [1] | PLATE, BAFFLE | |
| 50(B). | VI9097161140 | [2] | CLIP | KOBFUEL PIPE |
| 50(C). | VI9097161240 | [2] | CLIP | KOBFUEL PIPE |
| 51. | VI0286806200 | [2] | BOLT, CLIP (M6X20 FLANGE) | |
| 56. | VI8972891180 | [1] | OIL SEPARATOR | KOBCASE, FUEL SEDIMENTER |
| 89. | VI8972891350 | [1] | ADAPTER | KOB |
