卡特零件查询（730） 149-0085: LINER GP-CAB
广数供应链运营团队, 15 02月, 2025，浏览：
519 次

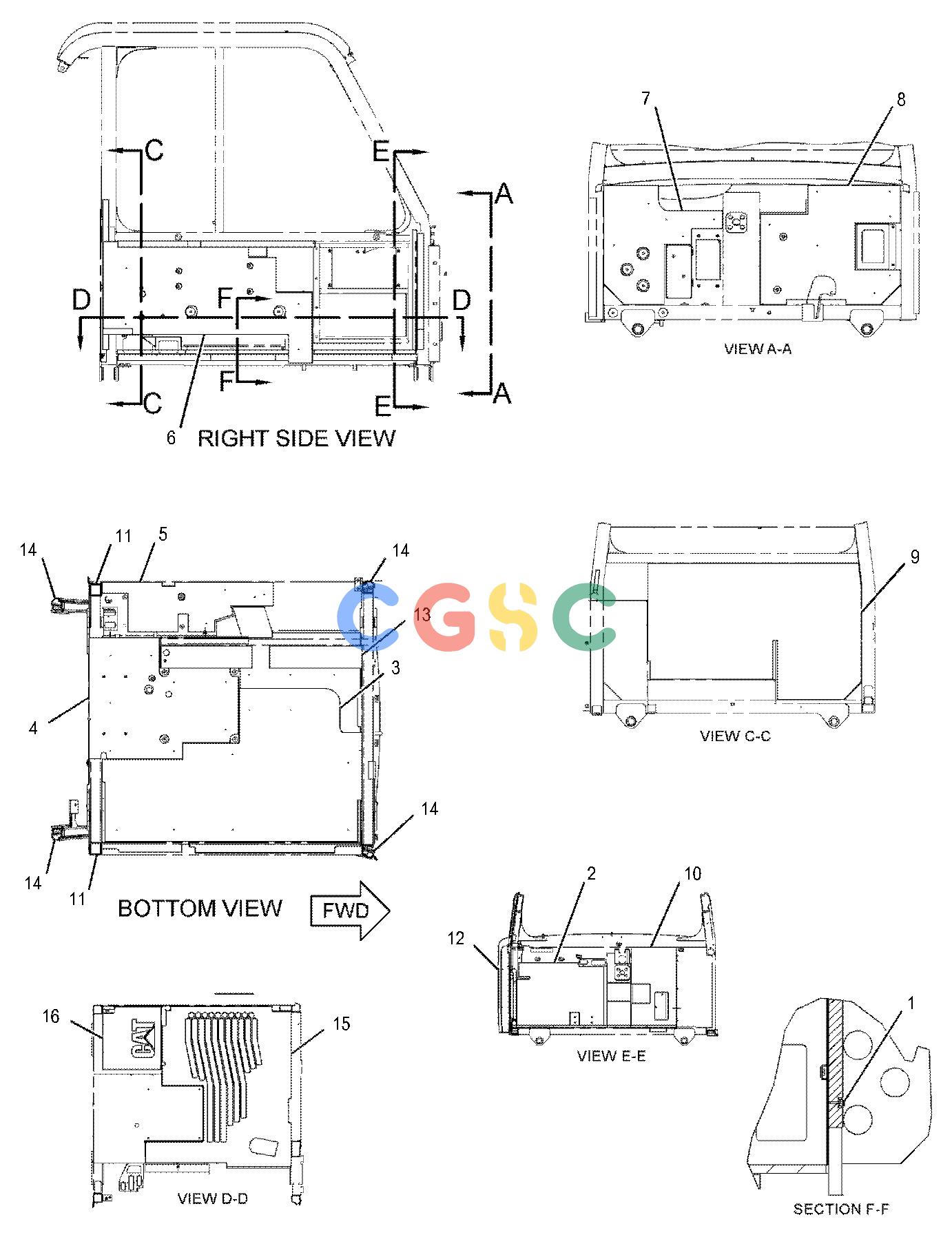

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-8928 | [1] | HOOK-COAT | |
| 2. | 8C-0618 | [1] | ASHTRAY AS | |
| 3. | 8Y-6388 | [1] | LOUVER AS-VENT | |
| 4. | 9U-8263 | [1] | COVER | |
| 5. | 114-6658 | [66] | WASHER(6.5X17X1-MM THK) | |
| 6. | 151-5715 | [5] | LOUVER AS-VENT | |
| 7. | 154-7468 | [1] | COVER AS | |
| 8. | 154-7470 | [1] | COVER | |
| 9. | 155-9708 | [1] | COVER AS | |
| 10. | 155-9709 | [1] | COVER(BOTTOM) | |
| 11. | 160-8641 | [1] | LINER AS-CAB | |
| | 9X-2045M | [4] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| | 9X-1046M | [8] | SCREW(M4X0.7X18-MM) | |
| | 160-8684 | [1] | COVER(REAR-WIPER) | |
| | 124-6047 | [2] | COVER-SPEAKER | |
| 12. | 160-8686 | [1] | CHANNEL-REAR | |
| 13. | 160-8687 | [1] | COVER(REAR, LH) | |
| 14. | 160-8688 | [1] | COVER(REAR, RH) | |
| 15. | 160-8718 | [1] | PANEL AS-DOOR | |
| 16. | | [1] | DASH AS |
| 17. | 160-8723 | [1] | TRIM AS | |
| | 114-9125 | [1] | HOLDER-CUP | |
| 18. | 160-8724 | [1] | TRIM AS | |
| 19. | 160-8725 | [1] | CONSOLE AS | |
| | 240-2169 | [1] | RETAINER | |
| 20. | 160-8728 | [1] | TRIM | |
| 21. | 161-1168 | [1] | FILM-INSTRUCTION(TRANSMISSION) | |
| 22. | 164-8473 | [2] | LOUVER AS | |
| 23. | 170-6019 | [1] | STORAGE AS | |
| 24. | 170-7656 | [2] | GASKET | |
| 25. | 172-6030 | [1] | GASKET | |
| 26. | 185-9793 | [1] | FILM-INSTRUCTION(RETARDER) | |
| 27. | 189-6003 | [1] | PLATE | |
| 28. | 228-7260 | [1] | DOOR AS | |
| | 3H-0240 | [11] | WASHER(5X9.7X0.8-MM THK) | |
| | 9M-5733 | [11] | RIVET-POP | |
| | 165-0397 | [1] | DOOR | |
| | 165-0399 | [1] | HINGE AS | |
| | 302-4764 | [1] | LATCH AS(COMPRESSION) | |
| 29. | 101-2867 | [2] | WASHER-HARD(7.2X25X2-MM THK) | |
| 30. | 104-2091 | [8] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 31. | 118-5619 | [14] | SCREW-FLAT HEAD(6-20X1-IN) | |
| 32. | 3E-4313M | [10] | SCREW-BUTTON HEAD(M4X0.7X8-MM) | |
| 33. | 6V-0292 | [1] | PLUG(SNAP) | |
| 34. | 9X-2042M | [29] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 35. | 9X-2044M | [30] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 36. | 9X-2045M | [10] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 37. | 148-7361E | | FASTENER-HOOK & LOOP(ADHESIVE BACKED)(8-CM) | |
| 38. | 148-7362E | | FASTENER-HOOK & LOOP(ADHESIVE BACKED)(12-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
