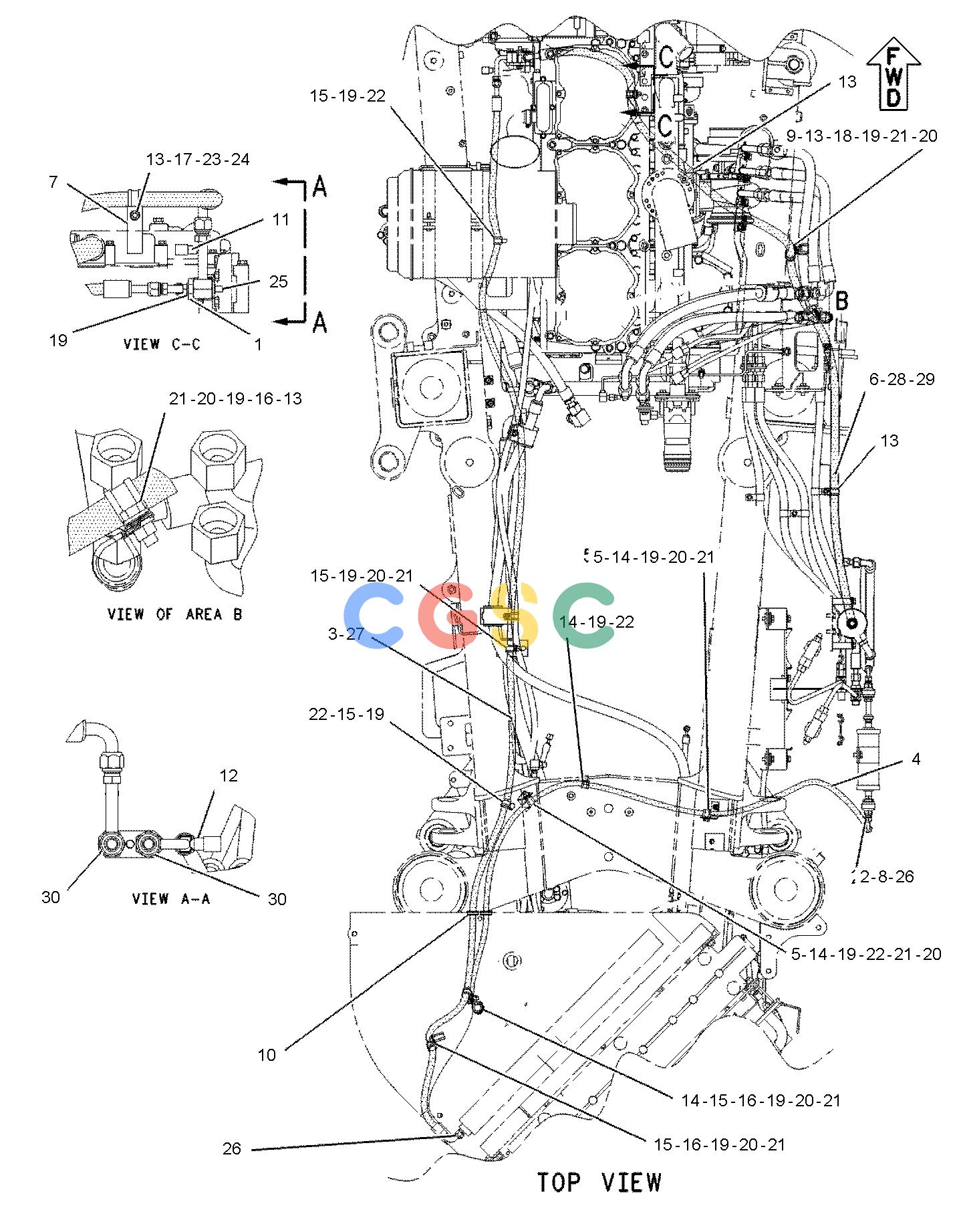

卡特零件查询（730） 149-0135: LINES GP-AIR CONDITIONER
广数供应链运营团队, 15 02月, 2025，浏览：
998 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-6356 | [1] | PLATE | |
| 2. | 103-6100 | [1] | FITTING AS-AIR CONDITIONER(QUICK DISCONNECT) | |
| | 9X-7382 | [2] | SEAL-O-RING | |
| 3. | 188-0997I | [1] | HOSE AS | |
| 4. | 198-4497I | [1] | HOSE AS | |
| 5. | 198-4498I | [1] | HOSE AS | |
| 6. | 198-4499 | [2] | BRACKET | |
| 7. | 116-6202 | [1] | BOOT | |
| 8. | 3D-6209 | [2] | GROMMET | |
| 9. | 3E-4054 | [1] | FITTING AS-AIR CONDITIONER | |
| | 3E-4051 | [1] | CAP-SEAL(LOW SIDE CHARGE PORT) | |
| | 3E-4057 | [1] | VALVE AS(REFRIGERANT, LOW SIDE) | |
| 10. | 3E-4066 | [1] | FITTING AS-AIR CONDITIONER | |
| | 3E-4052 | [1] | CAP-SEAL(HIGH SIDE CHARGE PORT) | |
| | 3E-4058 | [1] | VALVE AS(REFRIGERANT, HIGH SIDE) | |
| 11. | 3U-2428 | [4] | CLAMP-PIPE | |
| 12. | 3U-2753 | [4] | CLIP | |
| 13. | 3U-2754 | [6] | CLIP(LOOP) | |
| 14. | 3U-2755 | [4] | CLIP(LOOP) | |
| 15. | 5P-7464 | [1] | CLIP(SLOT) | |
| 16. | 5P-7465 | [1] | CLIP(TAB) | |
| 17. | 6V-7359 | [1] | GROMMET(25-MM ID, 37-MM OD) | |
| 18. | 8T-1885 | [1] | CLIP(SLOT) | |
| 19. | 8T-1886 | [1] | CLIP(TAB) | |
| 20. | 8T-4121 | [22] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 22. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 23. | 8T-4137M | [5] | BOLT(M10X1.5X20-MM) | |
| 24. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 25. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 26. | 8T-6466M | [1] | BOLT(M10X1.5X60-MM) | |
| 27. | 9X-7380 | [2] | SEAL-O-RING | |
| 28. | 9X-7381 | [2] | SEAL-O-RING | |
| 29. | 9X-7382 | [1] | SEAL-O-RING | |
| 30. | 9X-7383 | [1] | SEAL-O-RING | |
| 31. | 9X-7385 | [2] | SEAL-O-RING | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
