沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentConnecting Kit for Dual StationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
956 次

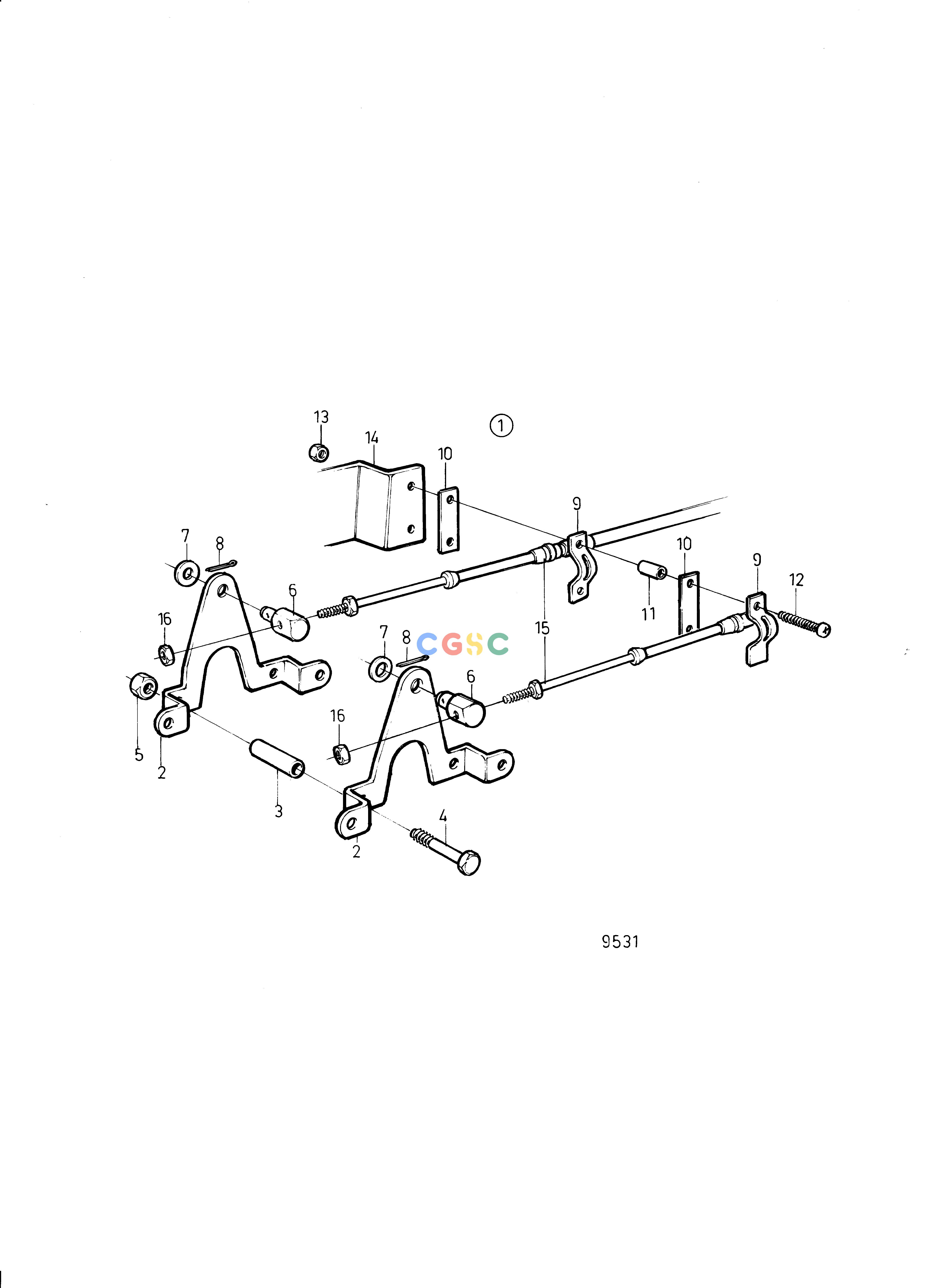

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854293
|
[1] |
Connector kit
|
|
| 2. |
853922
|
[2] |
Intermediate lever
|
|
| 3. |
853921
|
[2] |
Spacer sleeve
|
|
| 4. |
955276
|
[2] |
Hexagon screw
|
|
| 5. |
946035
|
[2] |
Lock nut
|
|
| 6. |
804312
|
[2] |
Cube
|
|
| 7. |
955892
|
[2] |
Washer
|
|
| 8. |
17276
|
[2] |
Split pin
|
|
| 9. |
21471054
|
[2] |
Bracket
|
|
| 10. |
819068
|
[2] |
Washer
|
|
| 11. |
830674
|
[2] |
Spacer sleeve
|
|
| 12. |
955250
|
[2] |
Hexagon screw
|
|
| 13. |
965483
|
[2] |
Flange nut
|
|
| 14. |
|
|
|
See group 4B
|
| 15. |
7736260_270
|
|
control cable
|
|
| 16. |
951674
|
[2] |
Lock nut
|
|
