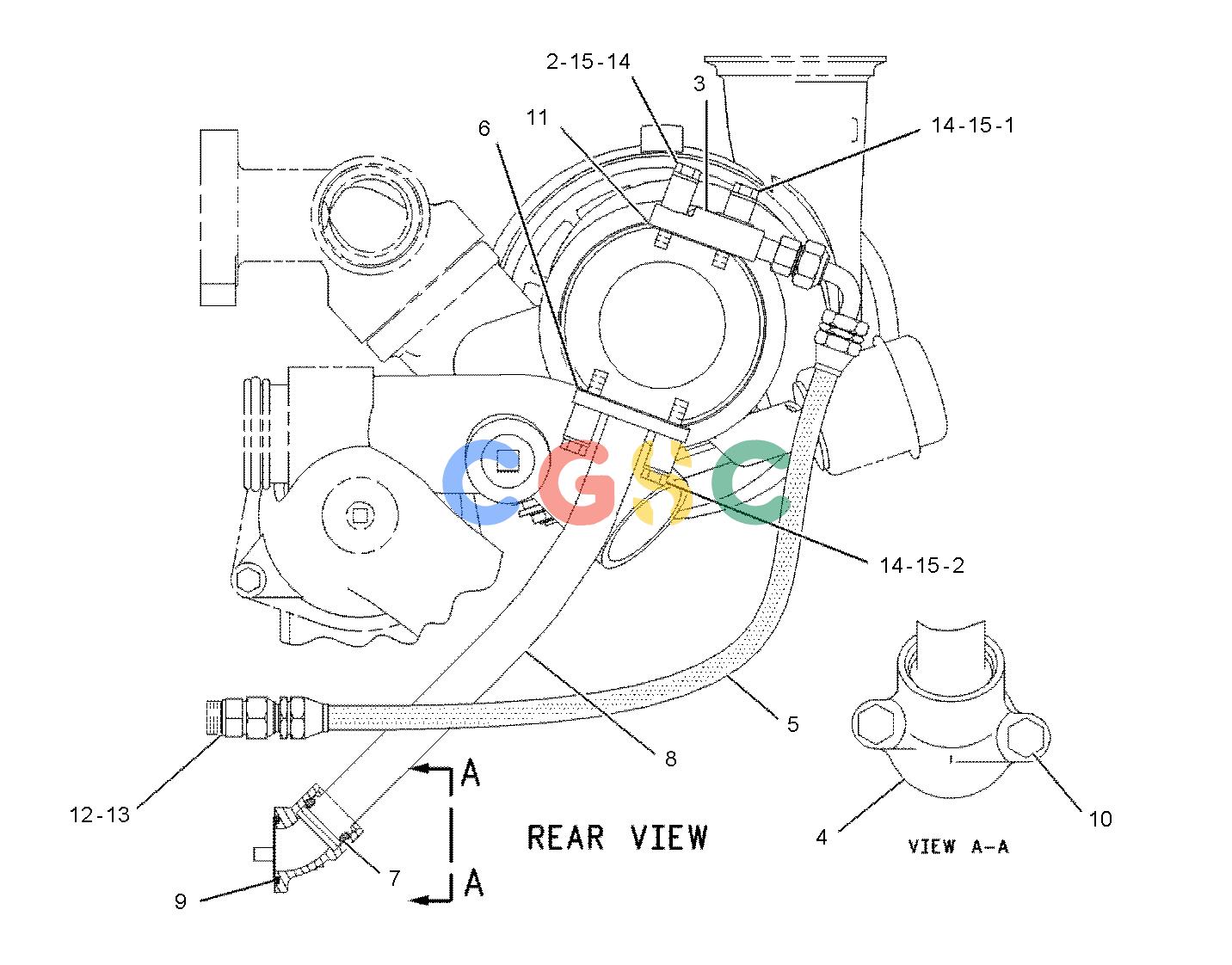

卡特零件查询（730） 165-0592: LINES GP-TURBOCHARGER OIL
广数供应链运营团队, 15 02月, 2025，浏览：
827 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4K-5824 | [1] | BOSS | |
| 2. | 9G-8661 | [3] | SPACER(10X16X20-MM THK) | |
| 3. | 102-5869 | [1] | TUBE AS-OIL | |
| 4. | 119-2942 | [1] | ADAPTER | |
| 5. | 138-2583 | [1] | HOSE AS | |
| 6. | 188-6126 | [1] | GASKET | |
| 7. | 114-2687 | [1] | SEAL-O-RING | |
| 8. | 123-0786 | [1] | TUBE AS | |
| 9. | 5P-8066 | [1] | SEAL-O-RING | |
| 10. | 6V-5218M | [2] | BOLT(M8X1.25X35-MM) | |
| 11. | 8H-9788 | [1] | GASKET | |
| 12. | 8L-2786 | [1] | SEAL-O-RING | |
| 13. | 8M-0505 | [1] | ADAPTER | |
| 14. | 8T-0276M | [4] | BOLT(M8X1.25X45-MM) | |
| 15. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
