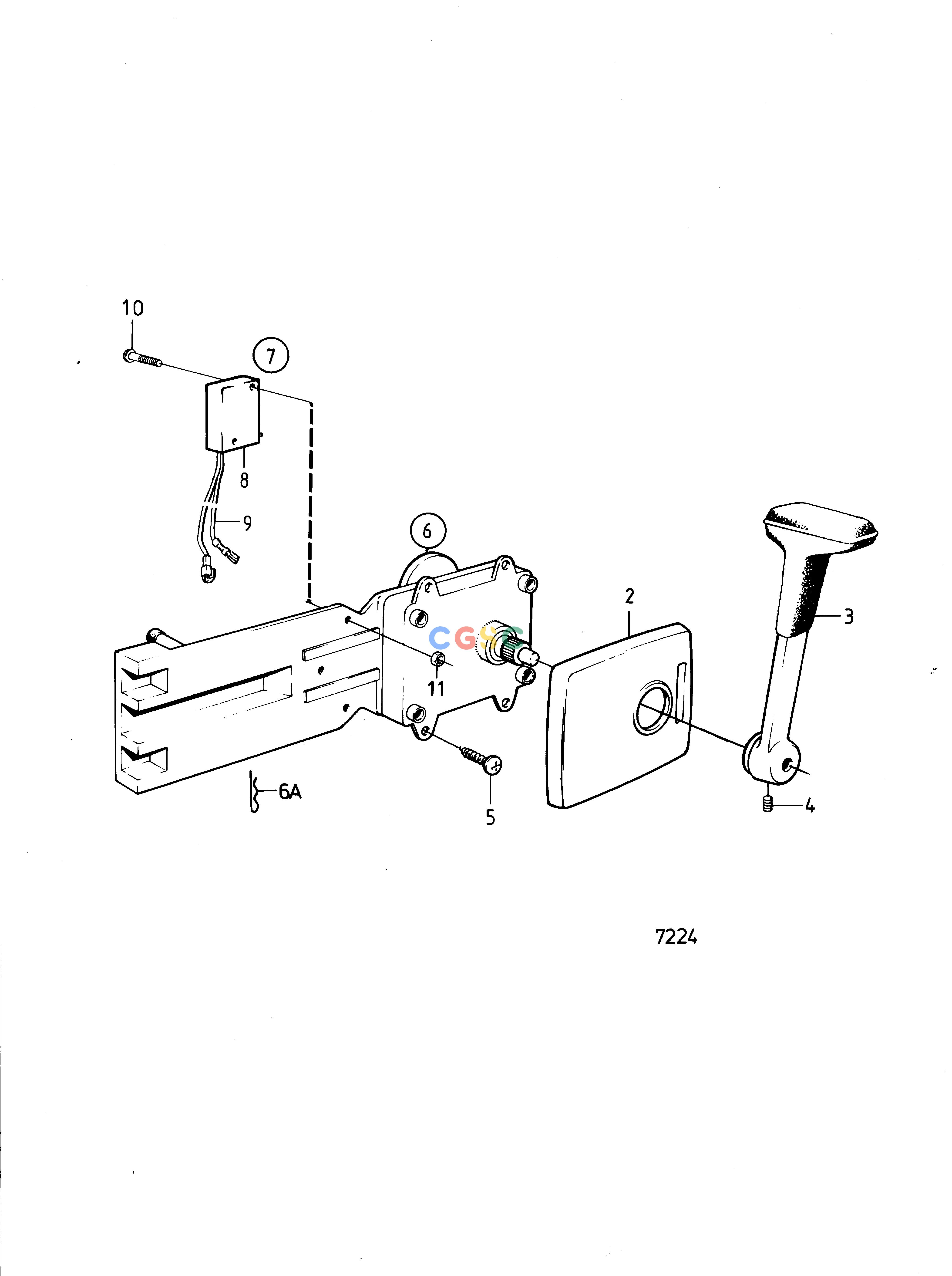

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentControl for Side MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140092
|
[1] |
Mounting kit
|
|
| 2. |
853713
|
[1] |
Cover
|
|
| 3. |
839520
|
[1] |
Hand lever
|
|
| 4. |
839693
|
[1] |
Lock screw
|
|
| 5. |
955142
|
[4] |
Cross recessed screw
|
|
| 5. |
961330
|
[4] |
Cross recessed screw
|
|
| 6. |
1140094
|
[1] |
Washer
|
|
| 7. |
1140095
|
[1] |
Control mechanism
|
|
| |
852924
|
[1] |
Locking pin
|
|
| 8. |
855352
|
[1] |
Neutral position con
|
(841165)
|
| 9. |
850200
|
[1] |
Toggle switch
|
|
| 10. |
|
|
|
See group 3
|
| 11. |
946177
|
[2] |
Cross recessed screw
|
|
| |
947536
|
[2] |
Hexagon nut
|
|
