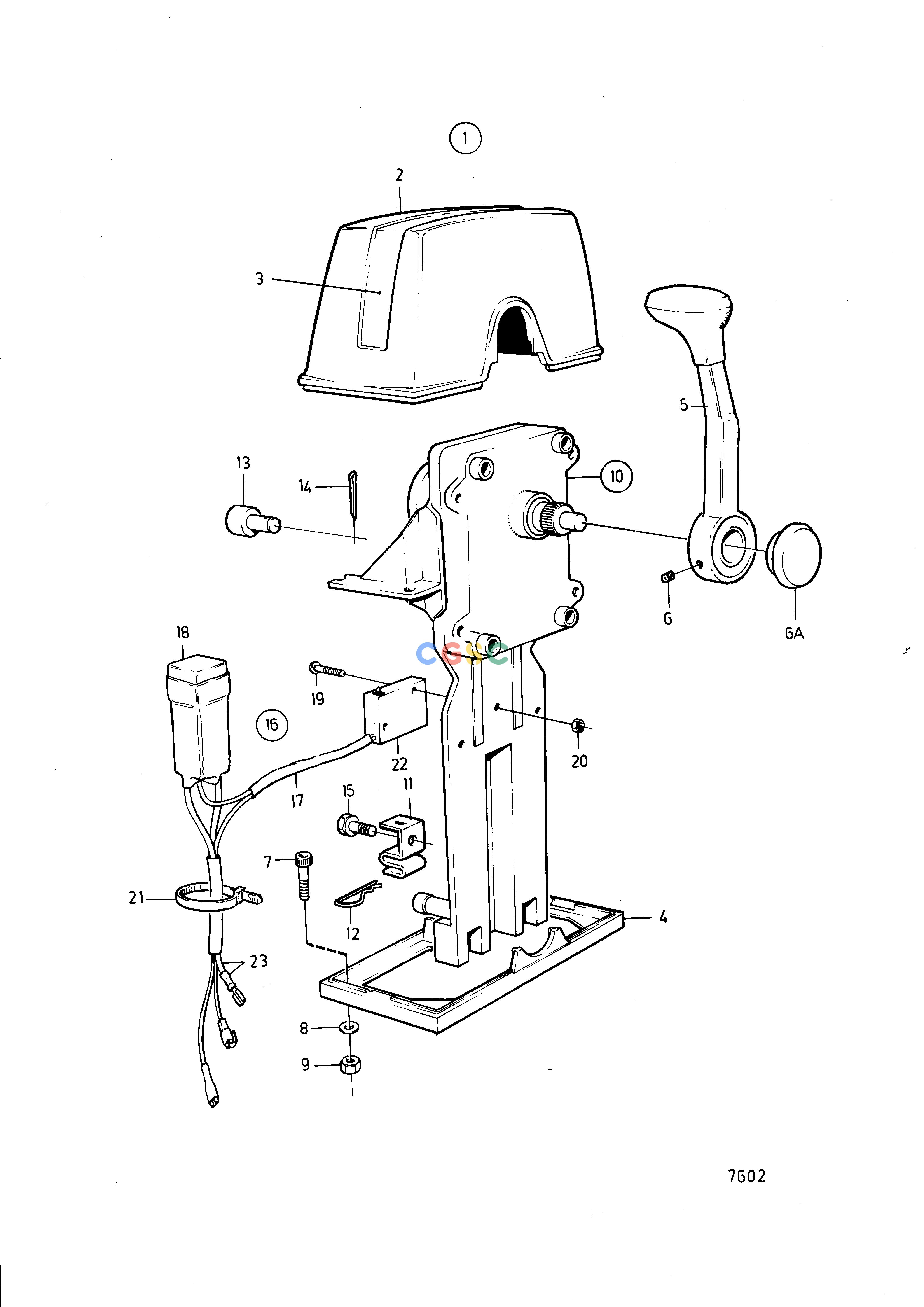

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentControl for top Installation: 851603EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
851603
|
[1] |
Mounting kit
|
Twin
|
| 2. |
839477
|
[1] |
Cover
|
|
| 3. |
|
|
|
|
| 4. |
839479
|
[1] |
Plate
|
|
| 5. |
|
|
|
|
| 6. |
839693
|
[2] |
Lock screw
|
|
| 7. |
947671
|
[4] |
Hex. socket screw
|
|
| 8. |
960138
|
[4] |
Washer
|
|
| 9. |
955780
|
[4] |
Hexagon nut
|
|
| 10. |
851600
|
[2] |
Control
|
|
| 11. |
853423
|
[2] |
Retainer
|
|
| 12. |
852924
|
[2] |
Locking pin
|
|
| 13. |
839638
|
[2] |
Cube
|
|
| 14. |
17253
|
[2] |
Split pin
|
|
| 15. |
839664
|
[2] |
Screw
|
|
| 16. |
855352
|
[2] |
Neutral position con
|
(839641)
|
| 17. |
839619
|
[2] |
Cable kit
|
|
| 18. |
876037
|
[2] |
Relay kit
|
(1501832)
|
| 19. |
946177
|
[4] |
Cross recessed screw
|
|
| 20. |
947536
|
[4] |
Hexagon nut
|
|
| 21. |
948210
|
[1] |
Cable tie
|
|
| 22. |
850200
|
[2] |
Toggle switch
|
|
| 23. |
|
|
|
See group 3
|
