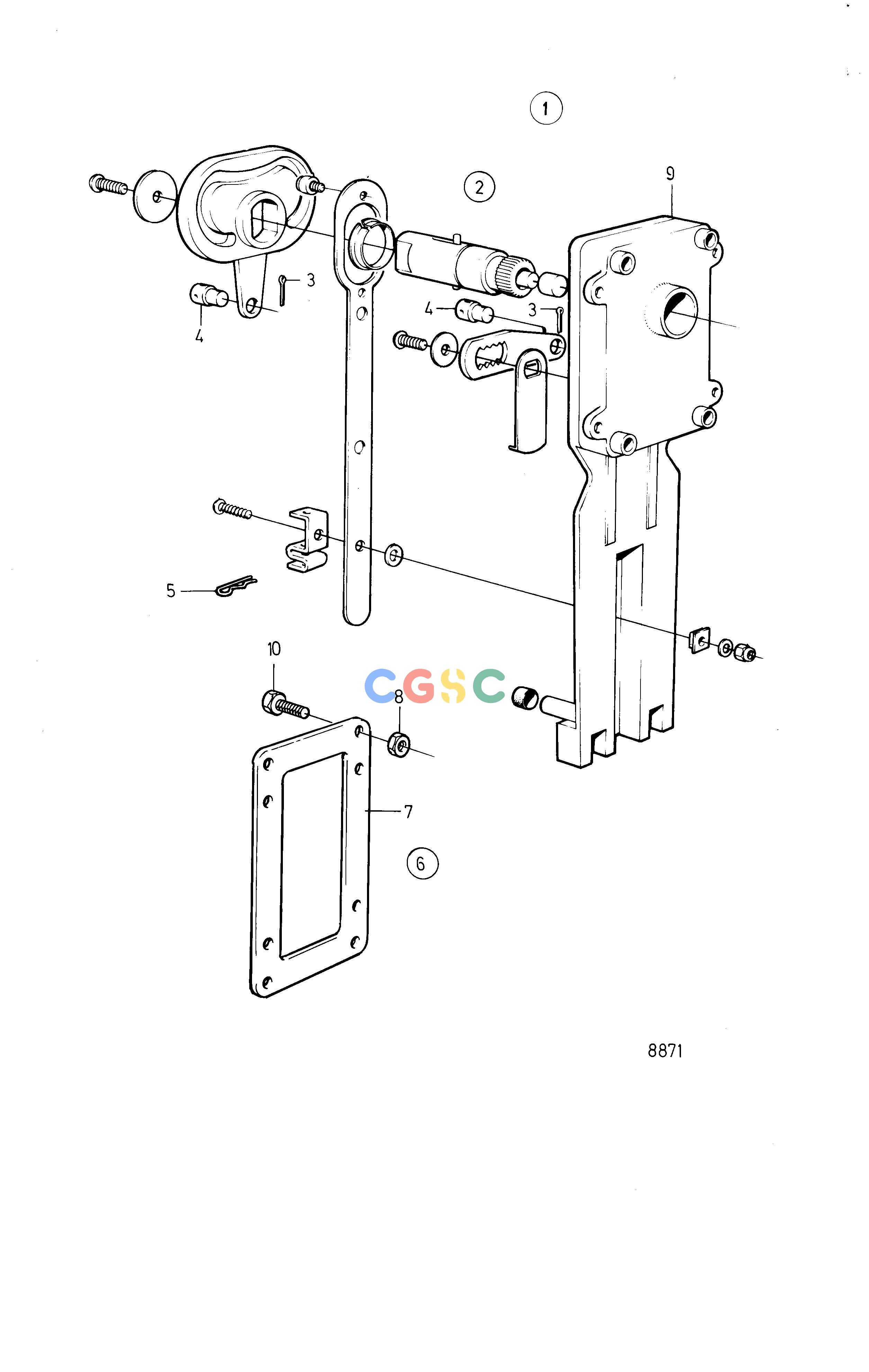

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1140095 | [1] | Control mechanism | |
| 2. | 851712 | [1] | Connector kit | |
| 3. | 17253 | [2] | Split pin | |
| 4. | 839638 | [2] | Cube | |
| 5. | 852924 | [1] | Locking pin | |
| 6. | ||||
| 7. | ||||
| 8. | ||||
| 9. | 851665 | [1] | Control mechanism | |
| 10. | 963548 | [4] | Hexagon screw |
广数供应链运营团队, 15 02月, 2025，浏览： 338 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1140095 | [1] | Control mechanism | |
| 2. | 851712 | [1] | Connector kit | |
| 3. | 17253 | [2] | Split pin | |
| 4. | 839638 | [2] | Cube | |
| 5. | 852924 | [1] | Locking pin | |
| 6. | ||||
| 7. | ||||
| 8. | ||||
| 9. | 851665 | [1] | Control mechanism | |
| 10. | 963548 | [4] | Hexagon screw |
