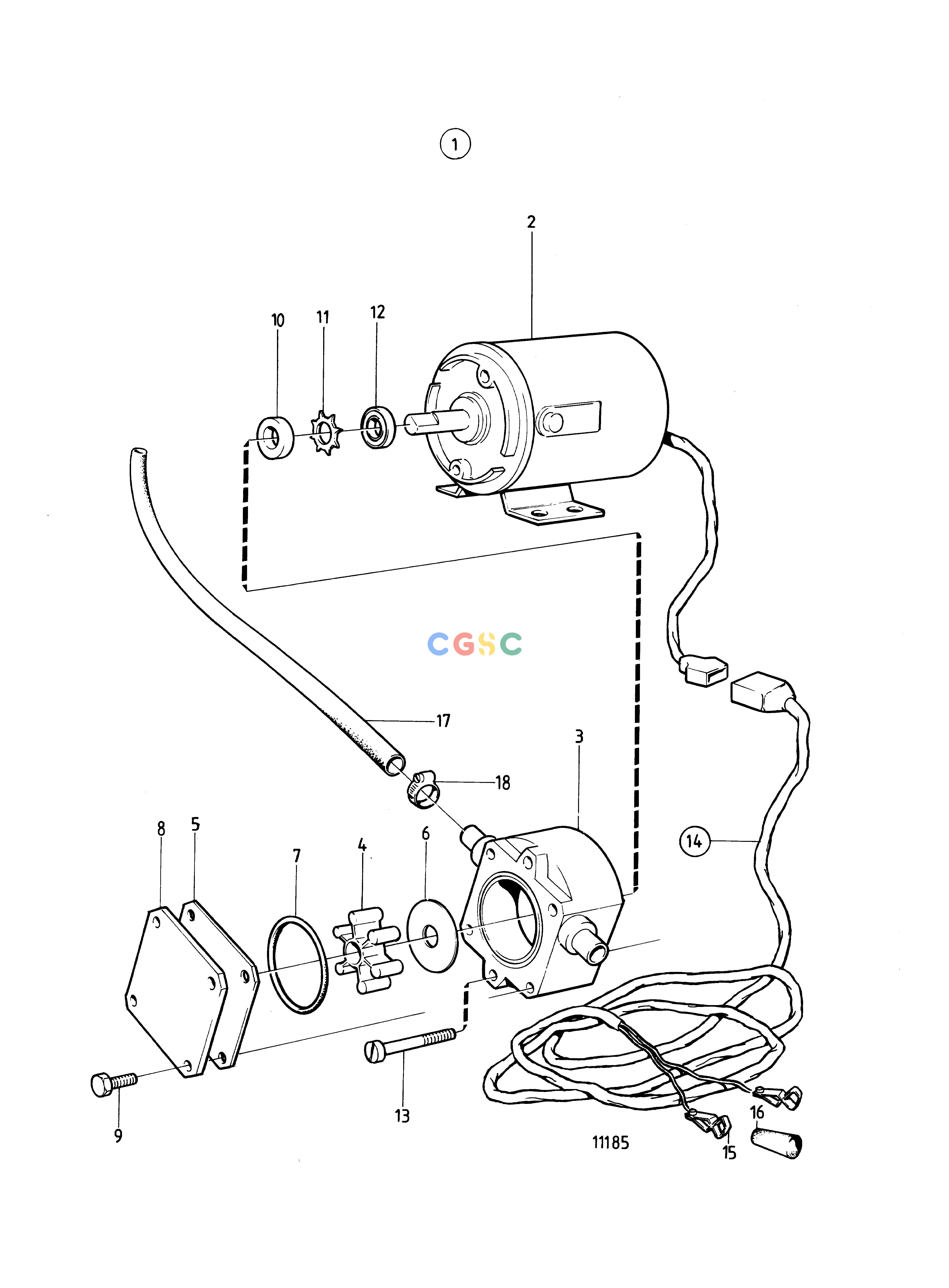

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentElectrical Oil Bilge Pump 12VEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843114
|
[1] |
Oil bilge pump
|
12V
|
| 2. |
|
|
|
|
| 3. |
844015
|
[1] |
Pump housing
|
|
| 4. |
844022
|
[1] |
Impeller kit
|
|
| 5. |
844017
|
[1] |
Wear washer
|
|
| 6. |
844016
|
[1] |
Wear washer
|
|
| 7. |
|
|
|
|
| 8. |
844018
|
[1] |
Cap
|
|
| 9. |
844021
|
[4] |
Screw
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
844019
|
[1] |
Deflector ring
|
|
| 13. |
847464
|
[2] |
Screw
|
|
| 14. |
843113
|
[1] |
Cable block
|
|
| 15. |
|
|
|
Replaced by 1pc 844280,1pc 844279
|
| 15. |
844280
|
[2] |
Clip
|
Late type
|
| 16. |
844279
|
[1] |
Insulation
|
Late type, black
|
| 16. |
844278
|
[1] |
Insulation
|
Late type, red
|
| 17. |
943707
|
[1] |
Hose
|
12X4X3000mm
|
| 18. |
943471
|
[3] |
Hose clamp, hose clamp
|
|
