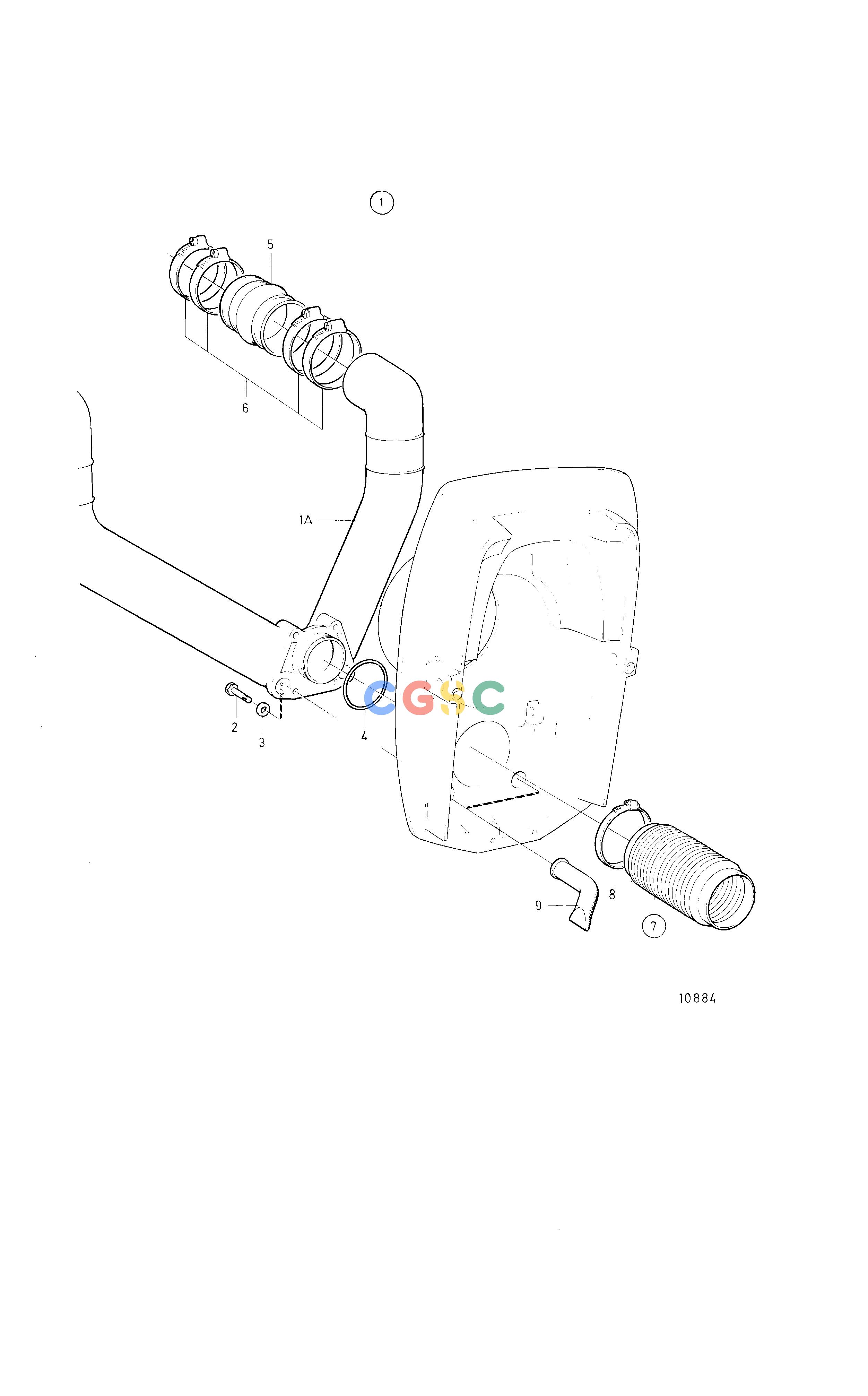

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentExhaust Grommet Kit Drive Unit DP-C, DP-D1EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872461
|
[1] |
Exhaust grommet
|
|
| 1A. |
872462
|
[1] |
Exhaust pipe
|
|
| 2. |
970958
|
[4] |
Hexagon screw
|
|
| 3. |
960148
|
[4] |
Washer
|
|
| 4. |
925256
|
[1] |
O-ring
|
|
| 5. |
872048
|
[2] |
Exhaust hose
|
|
| 6. |
853012
|
[8] |
Hose clamp
|
|
| 7. |
876631
|
[1] |
Bellows kit
|
(875848)
|
| 8. |
872531
|
[2] |
Hose clamp
|
|
| 9. |
843235
|
[2] |
Exhaust pipe
|
|
