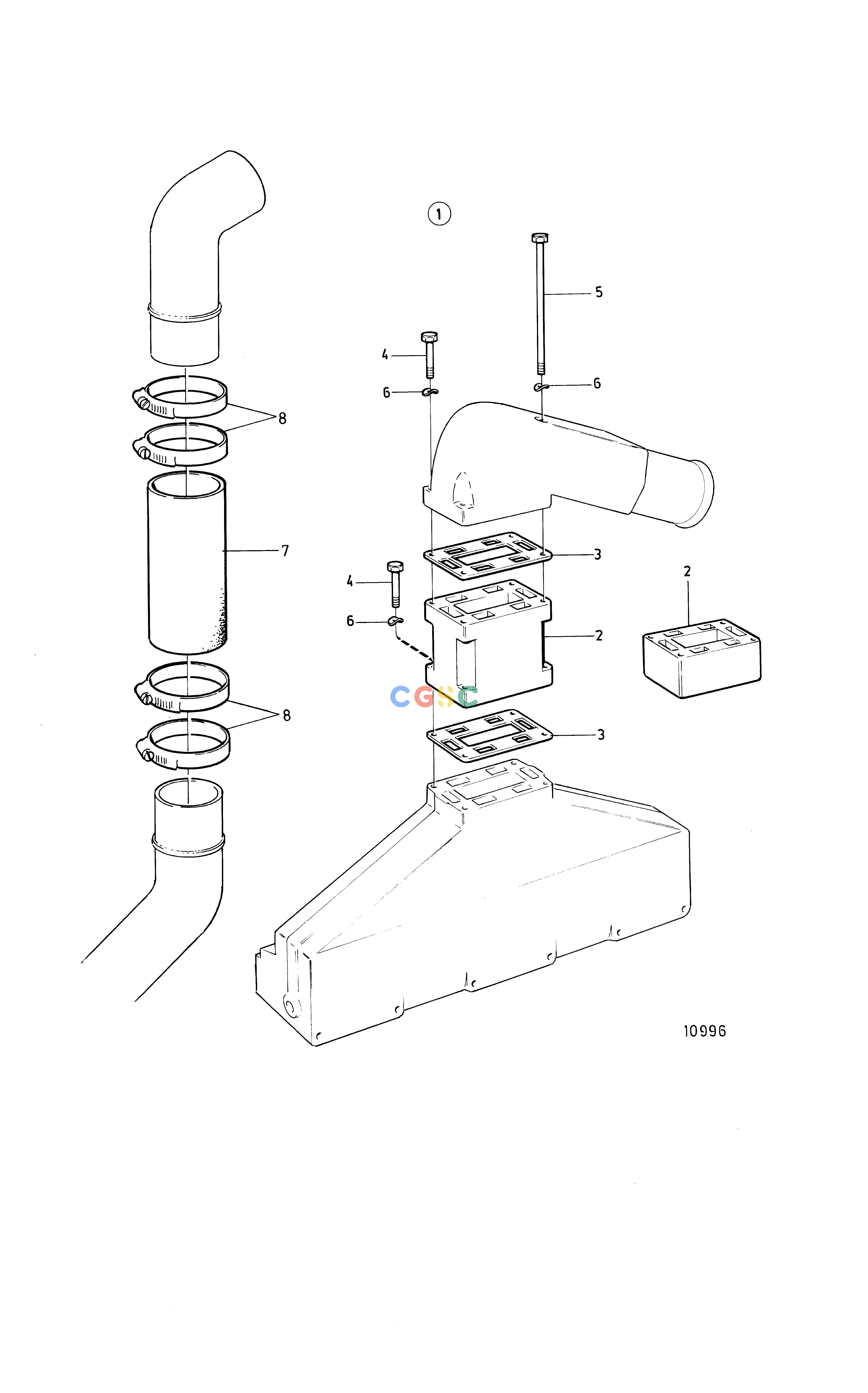

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentExtension Kit, Exhaust Manifold: 857128EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
857128
|
[1] |
Extension kit
|
For engine with drive unit or reverse gear., 4''
|
| 2. |
841251
|
[2] |
Spacer
|
4''
|
| 3. |
856039
|
[4] |
Gasket
|
|
| 4. |
940136
|
[4] |
Hexagon screw
|
L=64mm
|
| 4. |
940161
|
[8] |
Hexagon screw
|
L=45mm
|
| 5. |
948828
|
[4] |
Hexagon screw
|
For 430A, 430B, 431A, 431B., L=146mm
|
| 5. |
192548
|
[4] |
Hexagon screw
|
For 500B, 501B, 570A, 572A, 501B/MS4, 570A/MS4., L=133mm
|
| 6. |
941907
|
[16] |
Spring washer
|
|
| 7. |
857125
|
[2] |
Hose
|
L=180mm
|
| 8. |
853012
|
[8] |
Hose clamp
|
|
