沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentInstrument KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
392 次

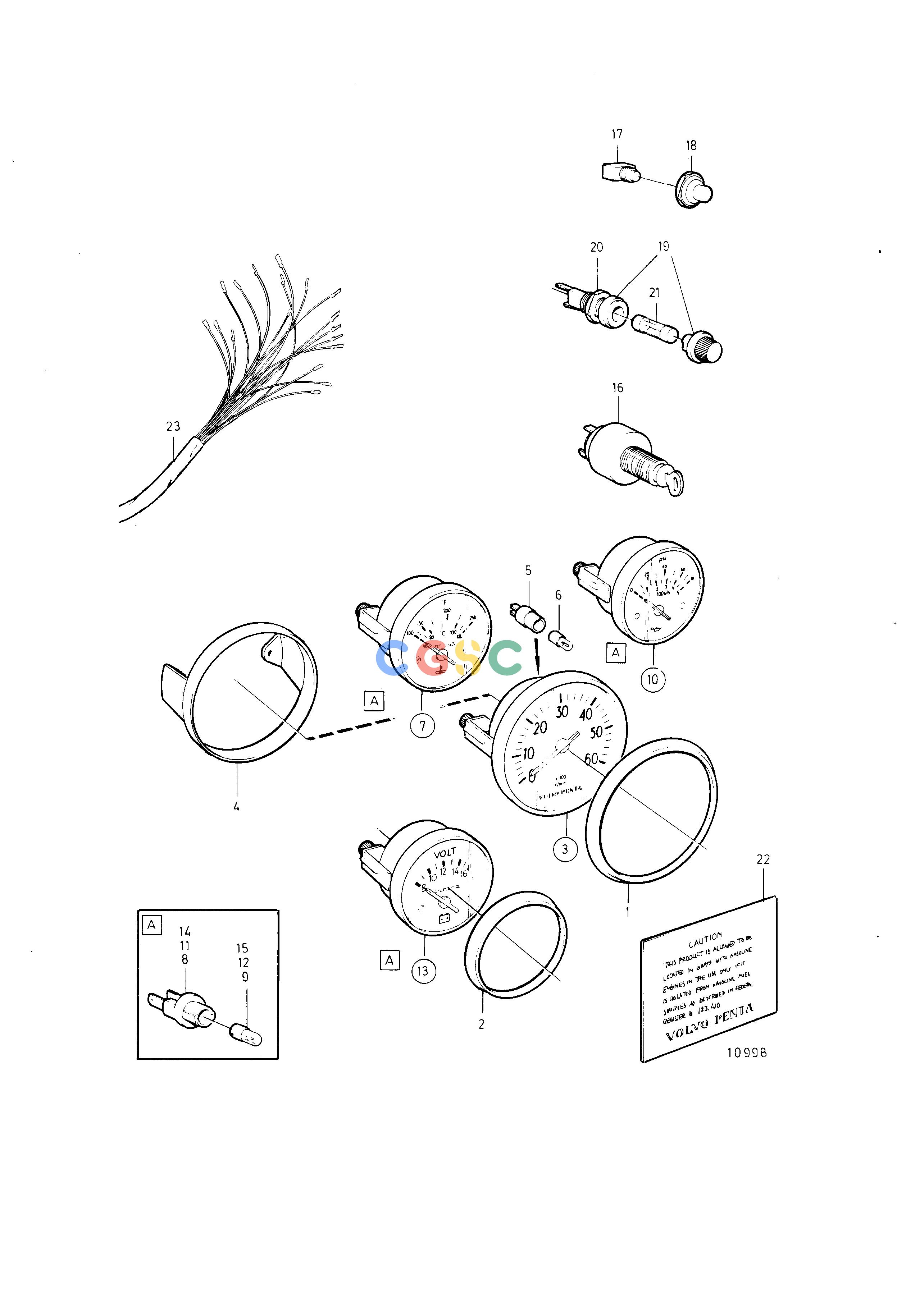

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
858644
|
[1] |
Front ring
|
|
| 2. |
858643
|
[3] |
Front ring
|
|
| 3. |
872358
|
[1] |
Tachometer
|
|
| 4. |
828558
|
[1] |
Attaching ring
|
|
| 5. |
808175
|
[1] |
Bulb socket
|
|
| 6. |
19923
|
[1] |
Bulb
|
12VX2WBA7S
|
| 7. |
856811
|
[1] |
Thermometer
|
|
| 8. |
863945
|
[1] |
Bulb socket
|
|
| 9. |
863946
|
[1] |
Bulb
|
|
| 10. |
856812
|
[1] |
Pressure gauge
|
|
| 11. |
863945
|
[1] |
Bulb socket
|
|
| 12. |
863946
|
[1] |
Bulb
|
|
| 13. |
863930
|
[1] |
Voltmeter
|
|
| 14. |
863945
|
[1] |
Bulb socket
|
|
| 15. |
863946
|
[1] |
Bulb
|
|
| 16. |
856659
|
[1] |
Starter switch
|
|
| 17. |
828585
|
[1] |
Toggle switch
|
|
| 18. |
828586
|
[1] |
Nut
|
|
| 19. |
841073
|
[2] |
Fuse holder
|
|
| 20. |
|
|
|
|
| 21. |
841518
|
[2] |
Fuse
|
8A
|
| 22. |
841242
|
[1] |
Label
|
|
| 23. |
|
|
|
See group 3
|
