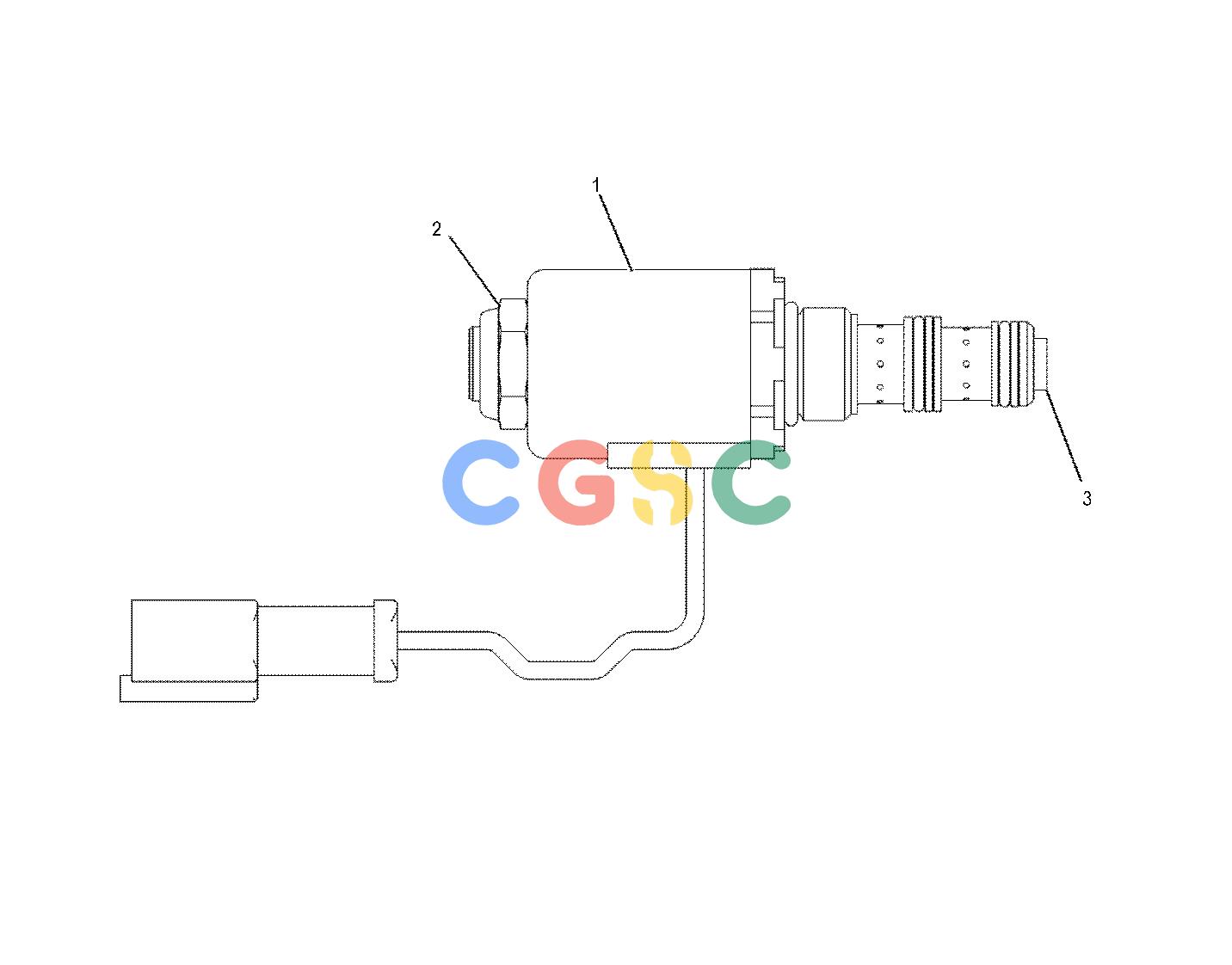

卡特零件查询（730） 201-0950: VALVE GP-SOLENOID
广数供应链运营团队, 15 02月, 2025，浏览：
756 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 122-1133 | [1] | COIL AS(24-VOLT) | |
| | 1S-9593 | [2] | STRAP-CABLE | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 156-5970 | [1] | NUT(1/2-20-THD) | |
| 3. | 171-8772J | [1] | VALVE AS-SOLENOID | |
| | 156-5970 | [1] | NUT(1/2-20-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 195-7430J | | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
