纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (05-006-00[01]) - TRACK - FOOTSTEP - 650 MM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
785 次

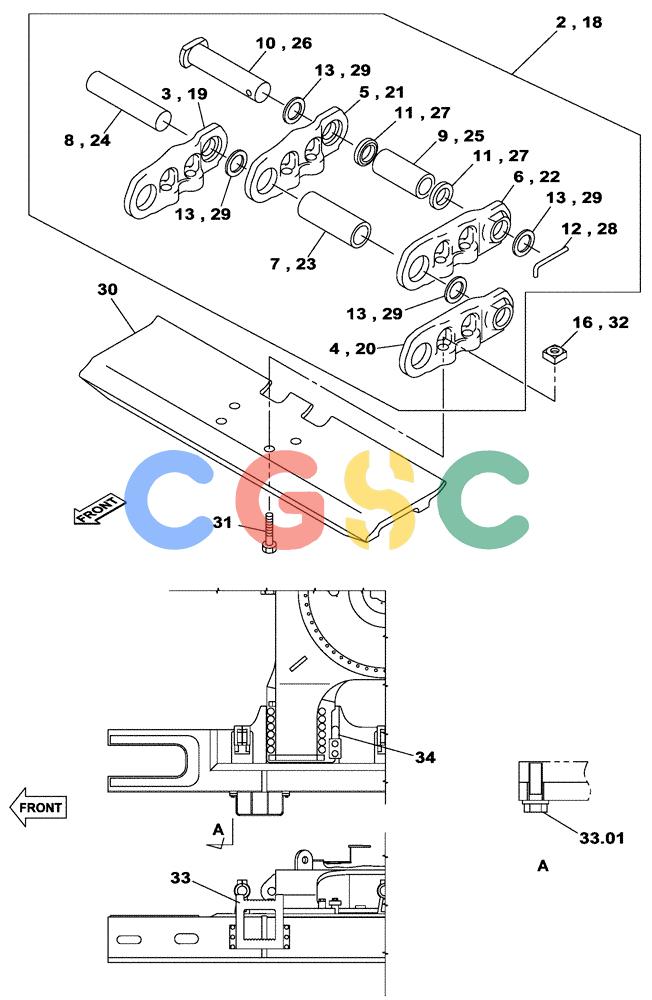

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | KUA0223 | [2] | CHAIN (CE) | SUM |
| 3. | KUA0225 | [24] | LINK CHAIN | SUM |
| 4. | KUA0226 | [24] | LINK CHAIN | SUM |
| 5. | KUA0227 | [1] | LINK CHAIN | SUM |
| 6. | KUA0228 | [1] | LINK CHAIN | SUM |
| 7. | KUA0229 | [24] | BUSHING | SUM |
| 8. | KUA0230 | [24] | PIN | SUM |
| 9. | KUA0231 | [1] | BUSHING | SUM |
| 10. | KUA0232 | [1] | HEADED PIN | SUM |
| 11. | KUA0233 | [2] | COLLAR | SUM |
| 12. | KUA0234 | [1] | LINCH PIN | SUM |
| 13. | KUA0235 | [100] | SEALING WASHER | SUMSEAL WASHER |
| 18. | KUA0224 | [2] | CHAIN (CE) | SUM |
| 30. | KUA0195 | [102] | TRACK SHOE | SUM650 mm |
| 31. | KUA0192 | [408] | BOLT | SUM |
| 32. | KUA0193 | [408] | NUT | SUM |
| 33. | KUA0129 | [4] | STEP | SUM |
| 33.01. | 165929A1 | [24] | BOLT,Sems, M16 | SUMM16 x 50 |
| 34. | KUA0126 | [8] | SPACER | SUM |
