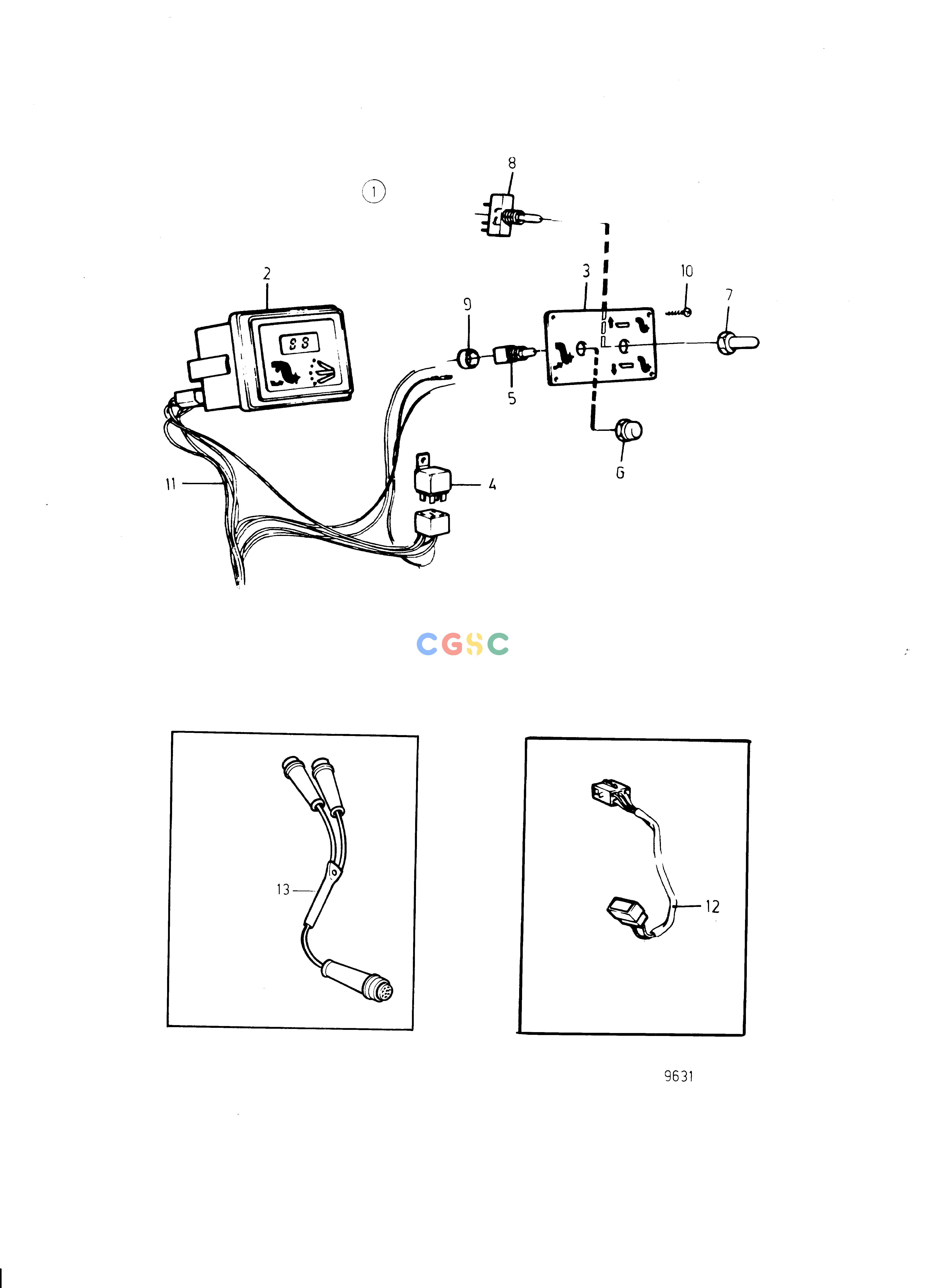

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentPower Trim Panel Fly BridgeEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853067
|
[1] |
Instrument panel
|
|
| 2. |
828731
|
[1] |
Trimmer
|
|
| 3. |
853866
|
[1] |
Control panel
|
(828739)
|
| 4. |
876040
|
[1] |
Relay kit
|
|
| 5. |
828584
|
[1] |
Toggle switch
|
|
| 6. |
828586
|
[1] |
Nut
|
|
| 7. |
828743
|
[1] |
Blind nut
|
|
| 8. |
828742
|
[1] |
Switch
|
|
| 9. |
828740
|
[2] |
Spacer washer
|
|
| 10. |
828647
|
[4] |
Screw
|
|
| 11. |
|
|
|
See group 3
|
| 12. |
853052
|
[1] |
Extension cable
|
L=3000mm
|
| 13. |
1140317
|
[1] |
Star connection
|
|
