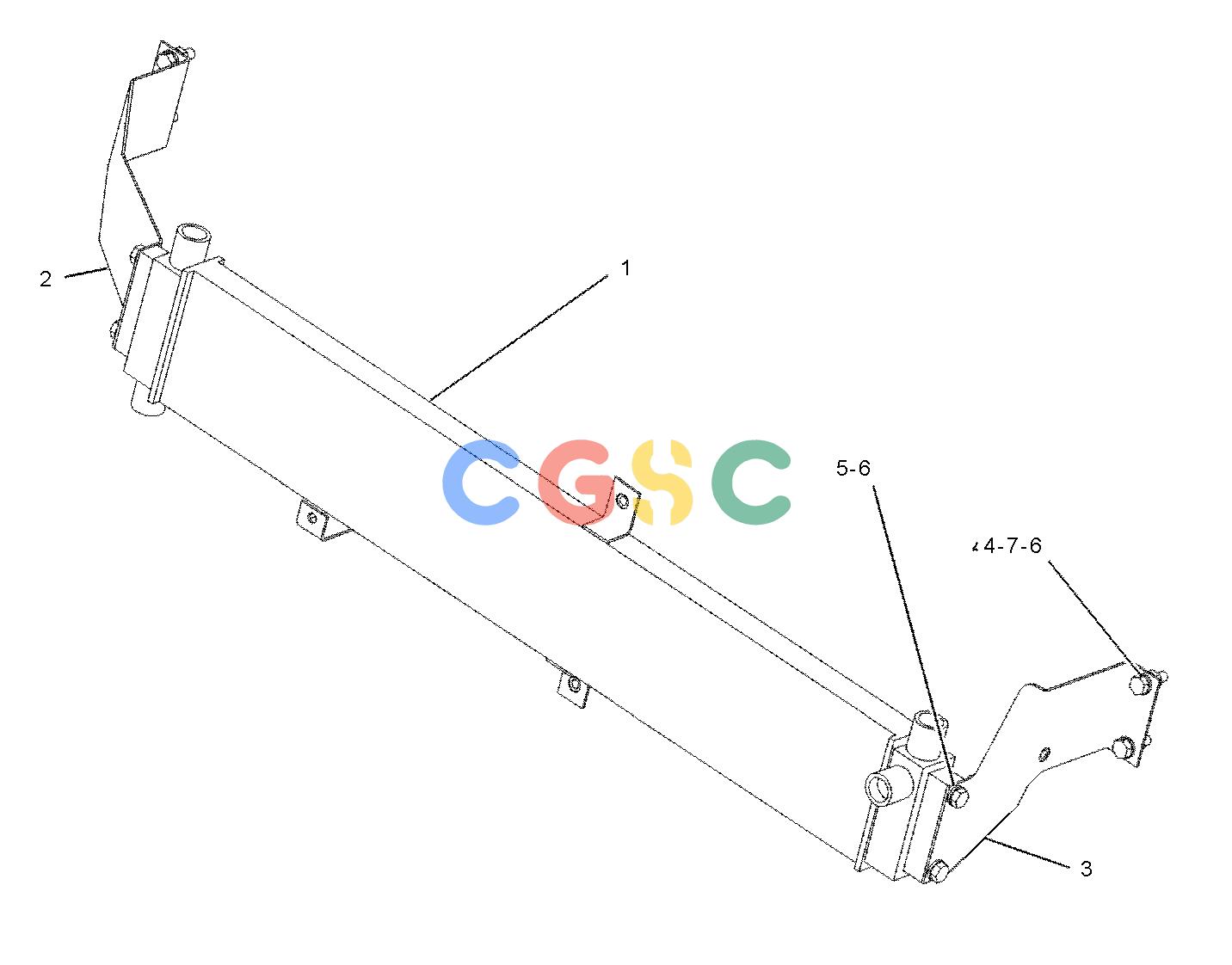

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 122-6485 | [1] | CORE AS-HYDRAULIC OIL COOLER | |
| 2. | 196-4777 | [1] | BRACKET | |
| 3. | 207-3296 | [1] | BRACKET AS | |
| 4. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 5. | 7X-2536M | [4] | BOLT(M8X1.25X14-MM) | |
| 6. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| M | METRIC PART | |||
