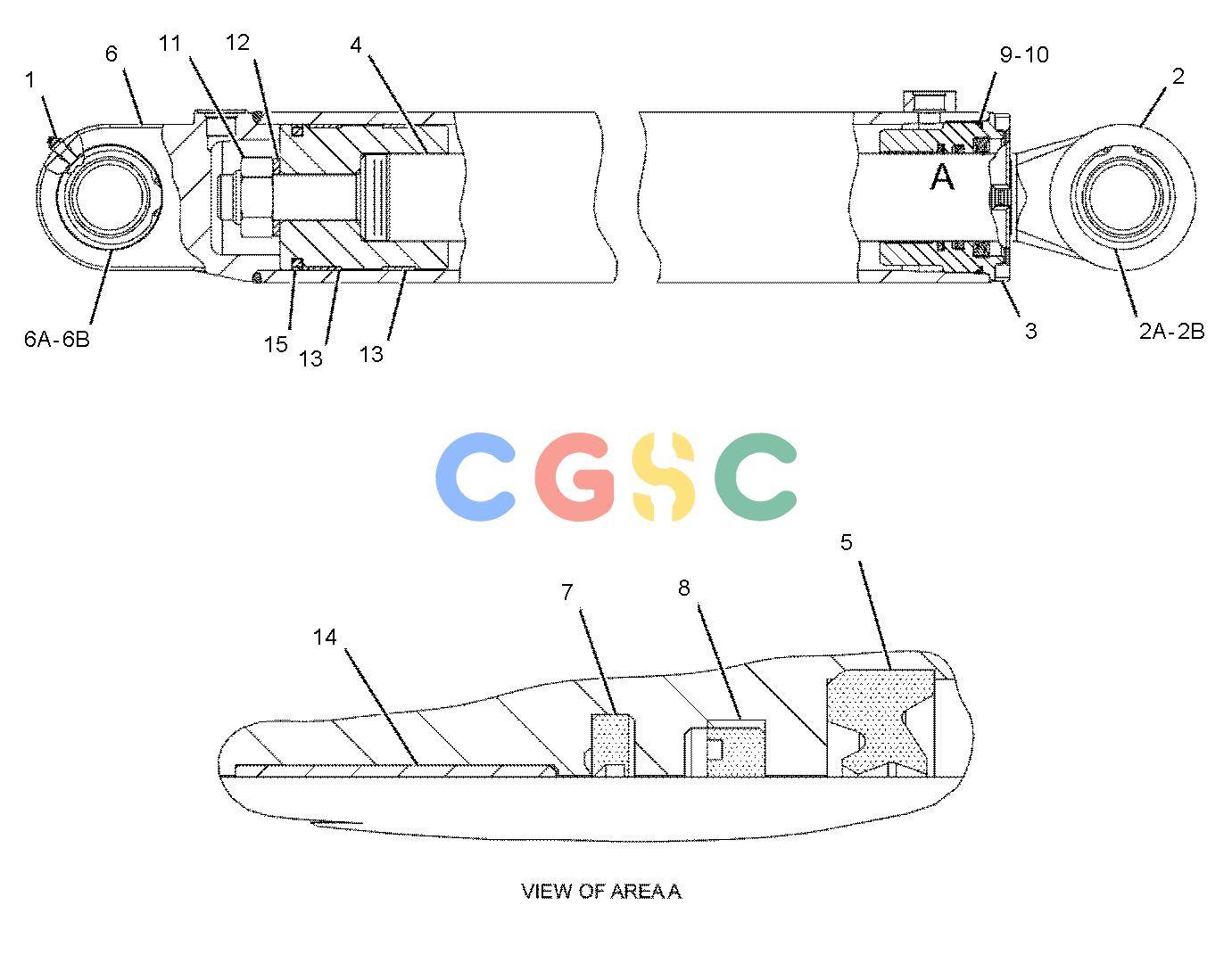

卡特零件查询（730） 241-4062: CYLINDER GP-HOIST
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 141-4339 | [1] | ROD AS | |
| 2A. | 1J-6472 | [2] | RING-RETAINING | |
| 2B. | 066-5815 | [1] | BEARING-SELF-ALIGNING | |
| 3. | 141-4343 | [1] | HEAD | |
| | 225-3284 | [1] | SEAL-WIPER | |
| 4. | 141-4344 | [1] | PISTON | |
| 5. | 225-3284 | [1] | SEAL-WIPER | |
| 6. | 241-4063 | [1] | CYLINDER AS | |
| 6A. | 1J-6472 | [2] | RING-RETAINING | |
| 6B. | 066-5815 | [1] | BEARING-SELF-ALIGNING | |
| 7. | 167-2208 | [1] | SEAL AS-BUFFER | |
| 8. | 167-2319 | [1] | SEAL-U-CUP | |
| 9. | 175-7904 | [1] | SEAL-O-RING | |
| 10. | 2K-4096 | [1] | RING-BACKUP | |
| 11. | 2U-2576 | [1] | NUT(1-1/2-6-THD) | |
| 12. | 3S-6162 | [1] | WASHER-HARD(40.5X67X6-MM THK) | |
| 13. | 4J-4630 | [2] | RING-WEAR | |
| 14. | 8T-7584 | [1] | RING-WEAR | |
| 15. | 9X-7264 | [1] | SEAL AS | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 449-6123 | [1] | KIT-HYD CYLINDER SEAL | |
| | | | (INCLUDES RINGS & SEALS) |
