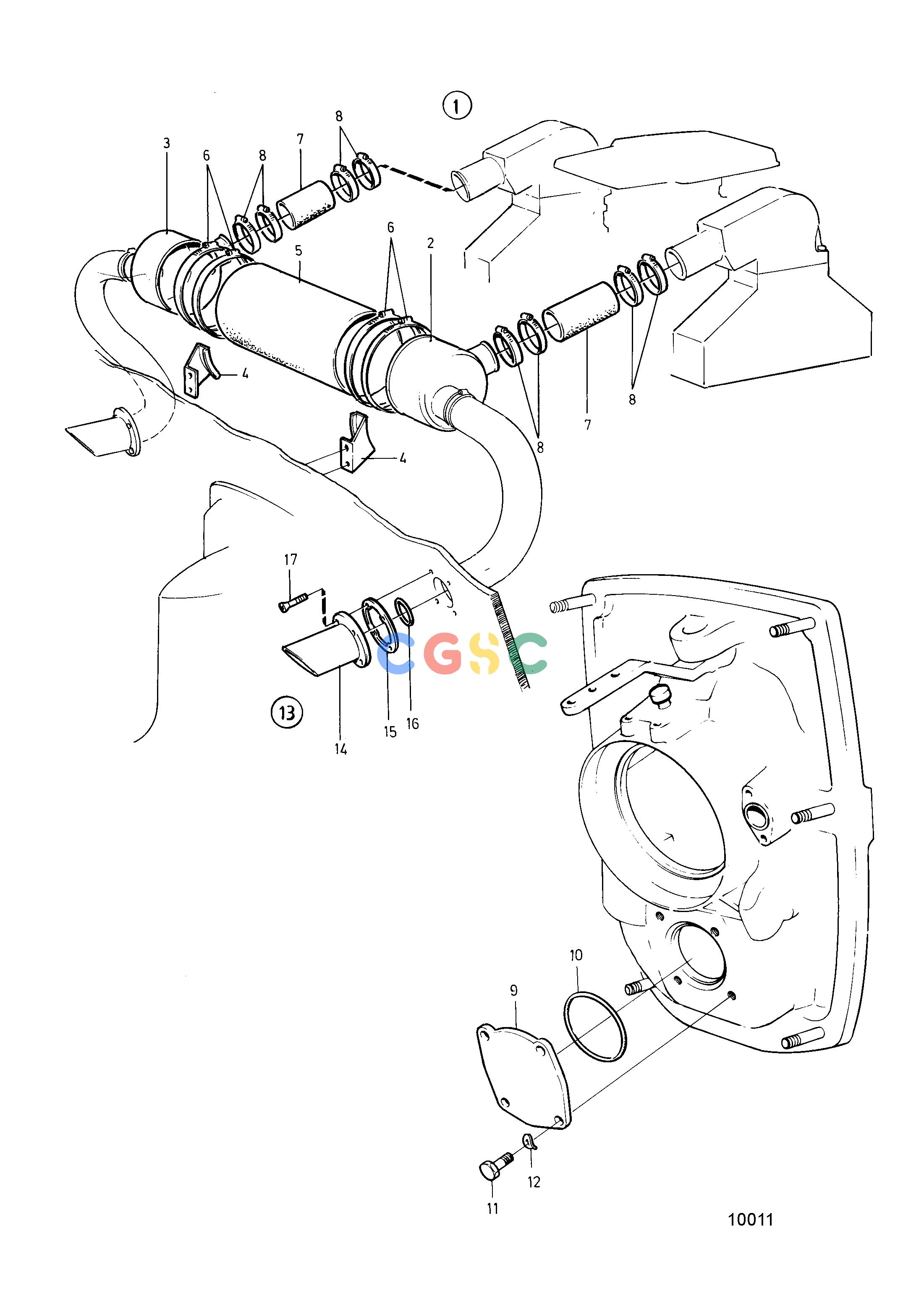

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentSilencer and Exhaust Line: 854565EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
827 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854565
|
[1] |
Silencer
|
Early type
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
854517
|
[2] |
Retainer
|
|
| 5. |
854552
|
[1] |
Exhaust hose
|
|
| 6. |
949000
|
[4] |
Hose clamp
|
|
| 7. |
854554
|
[2] |
Exhaust hose
|
|
| 8. |
853012
|
[8] |
Hose clamp
|
|
| 9. |
854584
|
[1] |
Seal flange
|
|
| 10. |
925260
|
[1] |
O-ring
|
|
| 11. |
970945
|
[4] |
Hexagon screw
|
|
| 12. |
941908
|
[4] |
Spring washer
|
|
