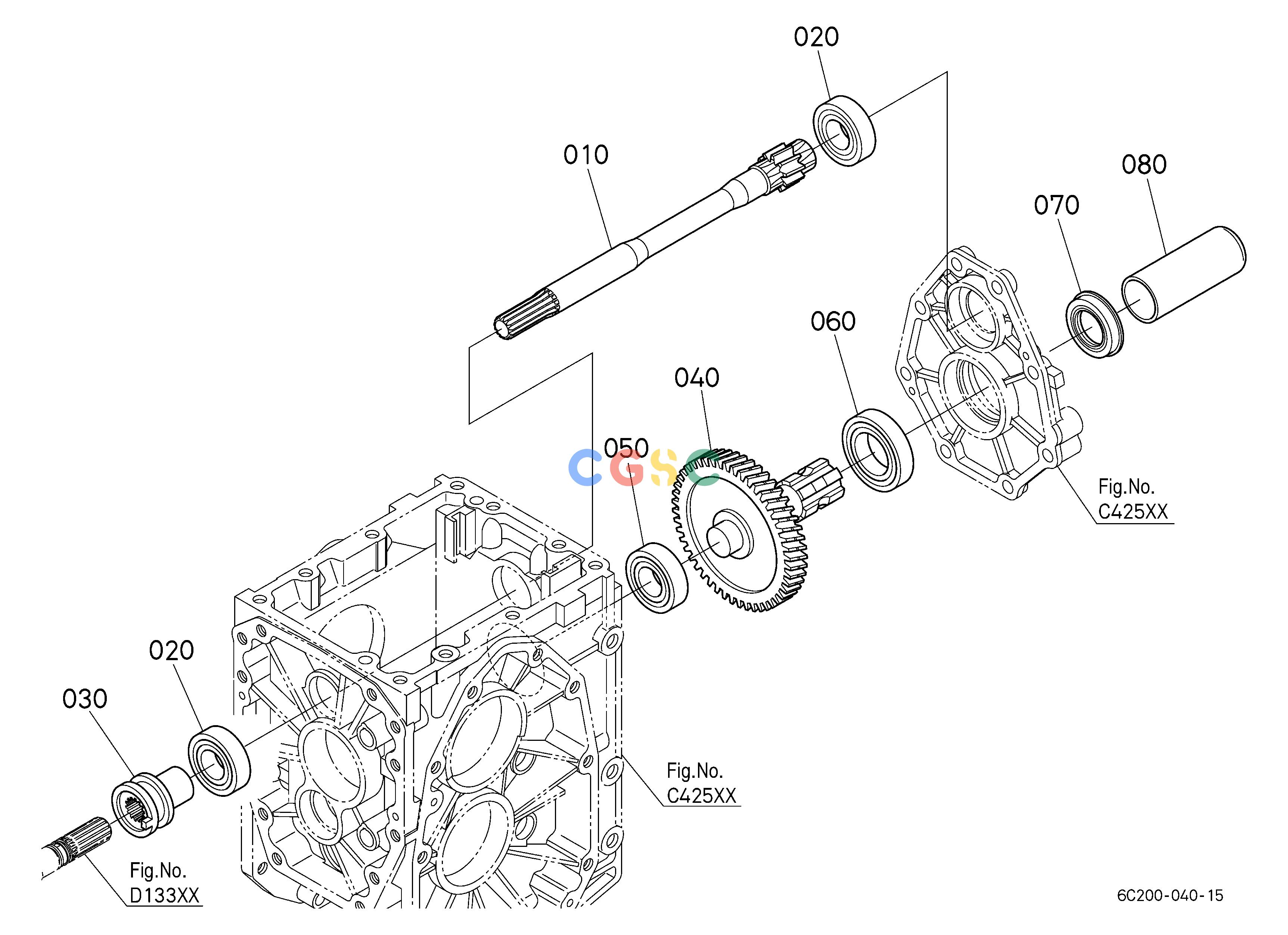

久保田零件查询D13202 PTO DRIVE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C22014412
|
[1] |
SHAFT(PTO DRIVE)
|
1.9800(lbs); 0.900
|
| 010. |
6C22214410
|
[1] |
SHAFT(PTO DRIVE)
|
1.9360(lbs); 0.880
|
| 020. |
0810106205
|
[2] |
BEARING,BALL
|
0.2640(lbs); 0.120
|
| 020. |
6A70016570
|
[2] |
BEARING,BALL K6205
|
0.2794(lbs); 0.127
|
| 030. |
6C20014422
|
[1] |
SHIFTER,REAR PTO
|
0.2640(lbs); 0.120
|
| 040. |
6C22014510
|
[1] |
SHAFT,PTO GEAR
|
4.1800(lbs); 1.900
|
| 050. |
0810106205
|
[1] |
BEARING,BALL
|
0.2640(lbs); 0.120
|
| 050. |
6A70016570
|
[1] |
BEARING,BALL K6205
|
0.2794(lbs); 0.127
|
| 060. |
0810106007
|
[1] |
BEARING,BALL
|
0.3520(lbs); 0.160
|
| 060. |
6A70016510
|
[1] |
BEARINGU,BALL
|
0.3300(lbs); 0.150
|
| 070. |
3741016550
|
[1] |
SEAL,OIL
|
0.0660(lbs); 0.030
|
| 080. |
3741063112
|
[1] |
CAP,PTO SHAFT
|
0.1210(lbs); 0.055
|
| 080. |
3122025820
|
[1] |
CAP
|
0.1210(lbs); 0.055
|
