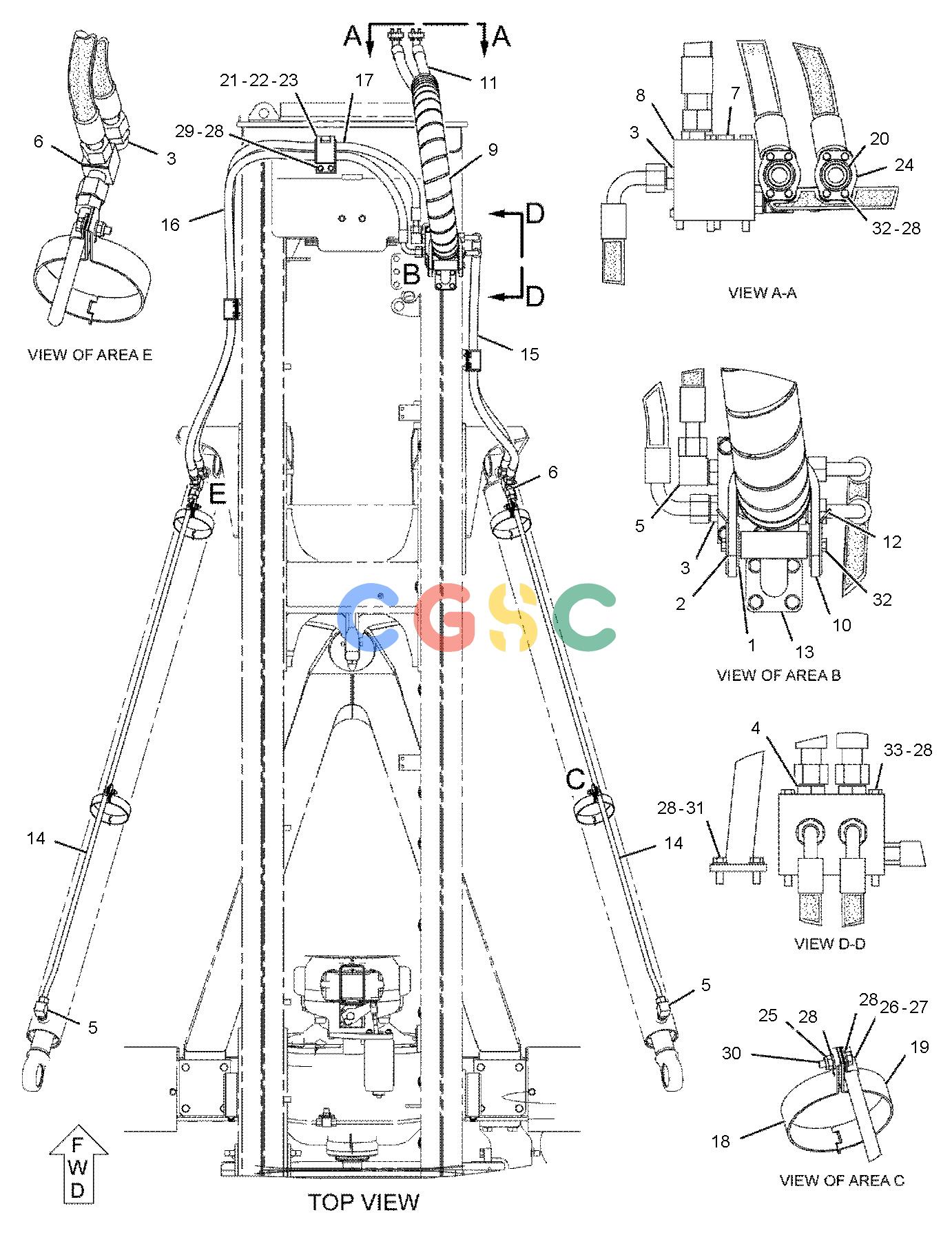

卡特零件查询（730） 208-3535: LINES GP-HOIST
广数供应链运营团队, 15 02月, 2025，浏览：
226 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2G-8767 | [2] | WASHER(10.5X60X3-MM THK) | |
| 2. | 2Y-6448 | [2] | SPACER(10.5X25.4X11.8-MM THK) | |
| 3. | 148-8327 | [5] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 4. | 148-8335 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 5. | 148-8347 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 148-8392 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 7. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 8. | | [1] | MANIFOLD |
| 9. | 204-6362 | [1] | GUARD-HOSE | |
| 10. | 174-8621 | [1] | STRIP-RUBBER | |
| 11. | 176-3642I | [2] | HOSE AS | |
| 12. | 191-5216 | [2] | PLATE-RETAINER | |
| 13. | 199-4818 | [1] | SUPPORT AS | |
| 14. | 207-5194 | [2] | TUBE AS | |
| 15. | 207-5981I | [2] | HOSE AS | |
| 16. | 207-5983I | [1] | HOSE AS | |
| 17. | 207-5984I | [1] | HOSE AS | |
| 18. | 214-9436 | [4] | CLAMP | |
| 19. | 214-9438 | [4] | CLAMP | |
| 20. | 4J-0520 | [2] | SEAL-O-RING | |
| 21. | 7G-3832 | [3] | GROMMET | |
| 22. | 7G-3833 | [3] | CLIP(TAB) | |
| 23. | 7G-3834 | [3] | CLIP(SLOT) | |
| 24. | 8C-3206 | [4] | FLANGE-HALF | |
| 25. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 26. | 8T-1887 | [4] | CLIP(SLOT) | |
| 27. | 8T-1888 | [4] | CLIP(TAB) | |
| 28. | 8T-4121 | [30] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 31. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 32. | 8T-4196M | [10] | BOLT(M10X1.5X35-MM) | |
| 33. | 8T-5436M | [4] | BOLT(M10X1.5X130-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
