沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentWater Gauge Kit 12V: 828716EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
161 次

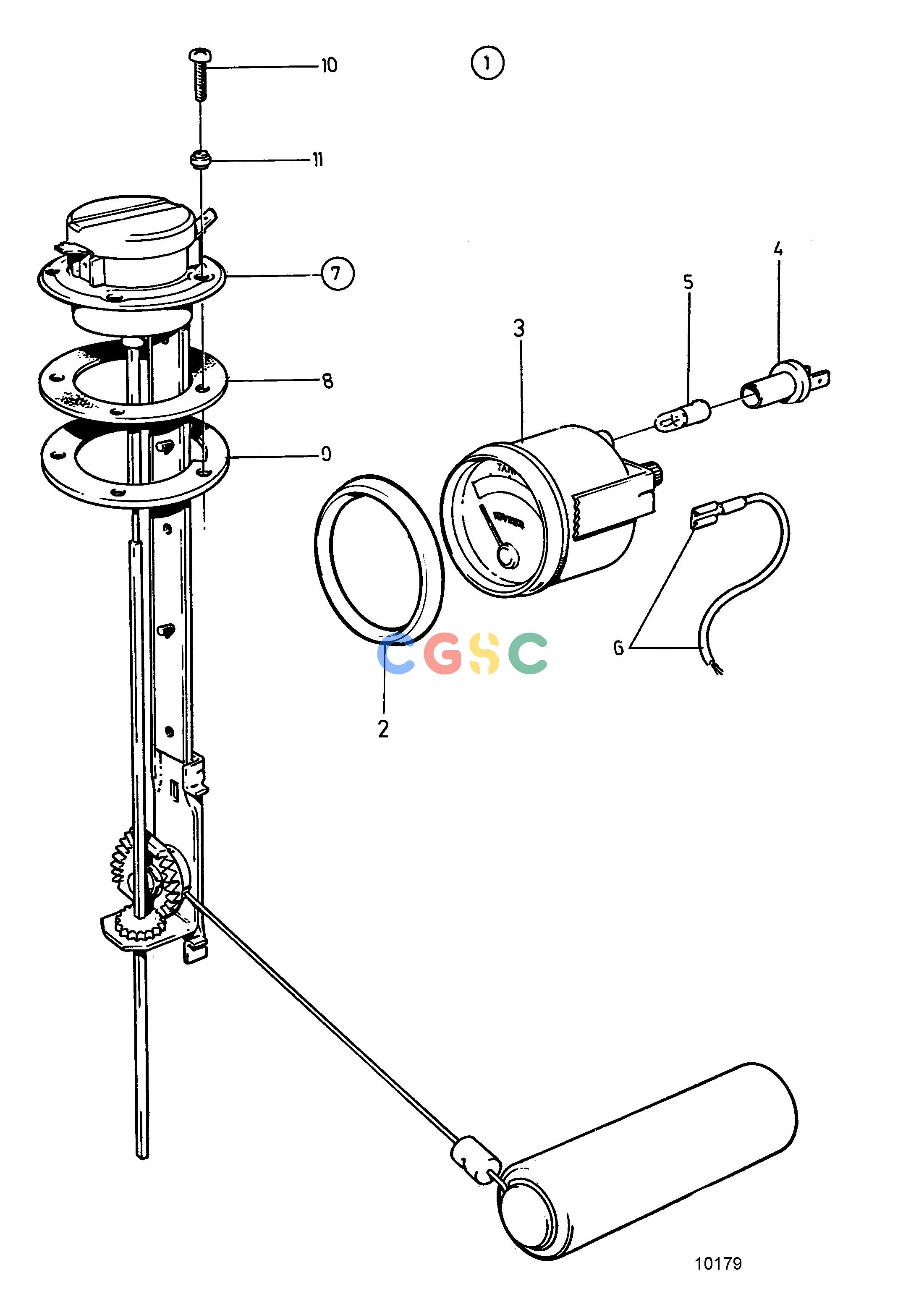

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828716
|
[1] |
Water level gauge
|
Gold coloured decor stripe., 12V repl by 858881
|
| 2. |
858643
|
[1] |
Front ring
|
(828542)
|
| 3. |
863942
|
[1] |
Water level gauge
|
(828635)
|
| 4. |
863945
|
[2] |
Bulb socket
|
For instruments of early production should white bulb 19923 and bulb holder 808175 be mounted.
|
| 5. |
863946
|
[2] |
Bulb
|
For instruments of early production should white bulb 19923 and bulb holder 808175 be mounted., Red
|
| 6. |
|
|
|
See group 3
|
| 7. |
834389
|
[1] |
Tank sensor
|
|
| 8. |
89865
|
[1] |
Gasket
|
|
| 9. |
834480
|
[1] |
Flange
|
|
| 10. |
956078
|
[4] |
Cross recessed screw
|
L=16mm
|
| 10. |
956081
|
[1] |
Cross recessed screw
|
L=25mm
|
| 11. |
834481
|
[5] |
Gasket
|
|
