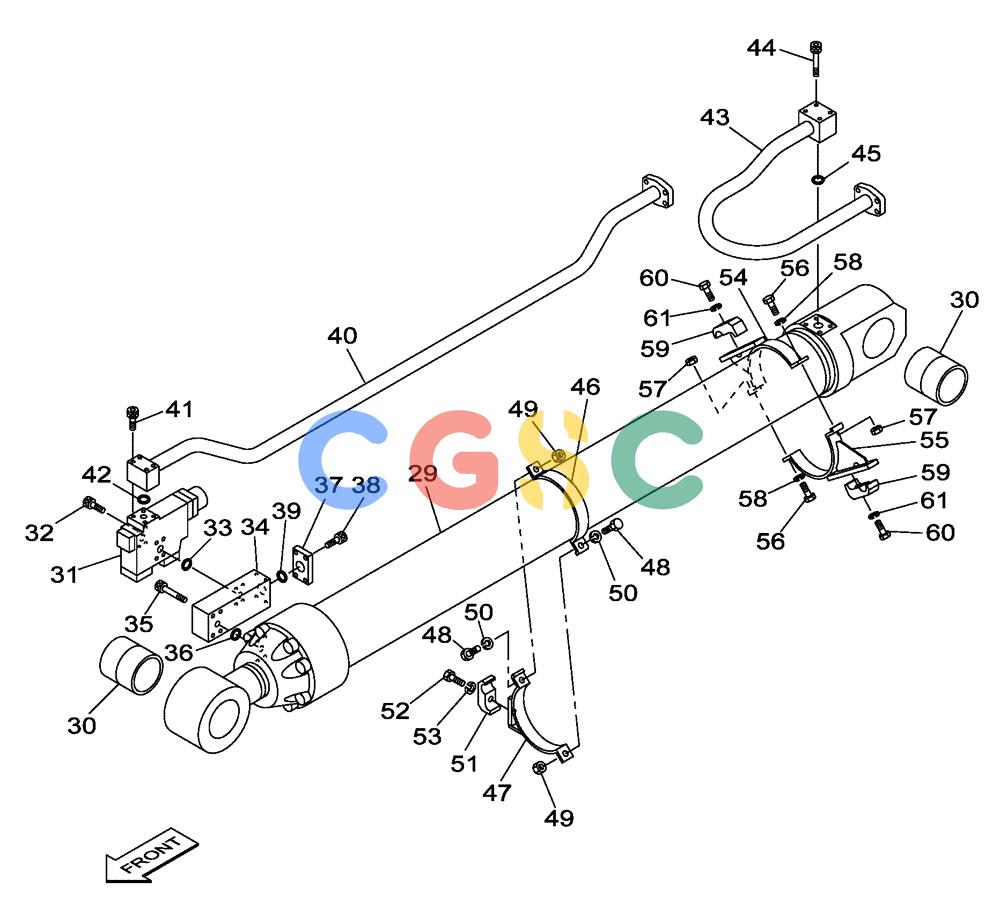

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-019-01[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (8.40 M) - (WITH VALVE, PRESSURE RELIEF) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
860 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 29. | KUV10390 | [1] | HYDRAULIC CYLINDER | SUM |
| 31. | KUV0271 | [1] | VALVE | SUM |
| 32. | 162030A1 | [4] | BOLT,Hex Skt Hd | SUM |
| 33. | 154589A1 | [1] | O-RING | SUM |
| 34. | KUV0278 | [1] | JUNCTION BOX | SUM |
| 35. | 108R016Y100R | [4] | BOLT | SUMM16 x 100 |
| 36. | 168211A1 | [1.] | O-RING | SUM |
| 37. | KUV0283 | [1] | COUPLING FLANGE | SUM |
| 38. | 862-16050 | [4] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CASM16 x 50 Superseded by part number: 9817243 |
| 40. | KUV0277 | [1] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 42. | 164450A1 | [1] | O-RING | SUM |
| 43. | KUV0279 | [1] | HYD. TUBE | SUM |
| 46. | KUV0273 | [1] | CLAMP | SUM |
| 47. | KUV0274 | [1] | CLAMP | SUM |
| 48. | 627-12045 | [2] | BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86639031 |
| 49. | 829-1412 | [2] | NUT,M12, Cl 10 | CAS Superseded by part number: 337475 |
| 50. | 183-112VR | [2] | SPRING WASHER | SUMSW 12 Superseded by part number: 86625255 |
| 51. | KUV0275 | [1] | CLAMP | SUM |
| 52. | 102R016Y085R | [1] | BOLT | SUMM16 x 85 |
| 53. | 892-11016 | [1] | LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk | CAS Superseded by part number: 87016618 |
| 54. | KUV0276 | [1] | CLAMP | SUM |
| 55. | KUV0280 | [1] | CLAMP | SUM |
