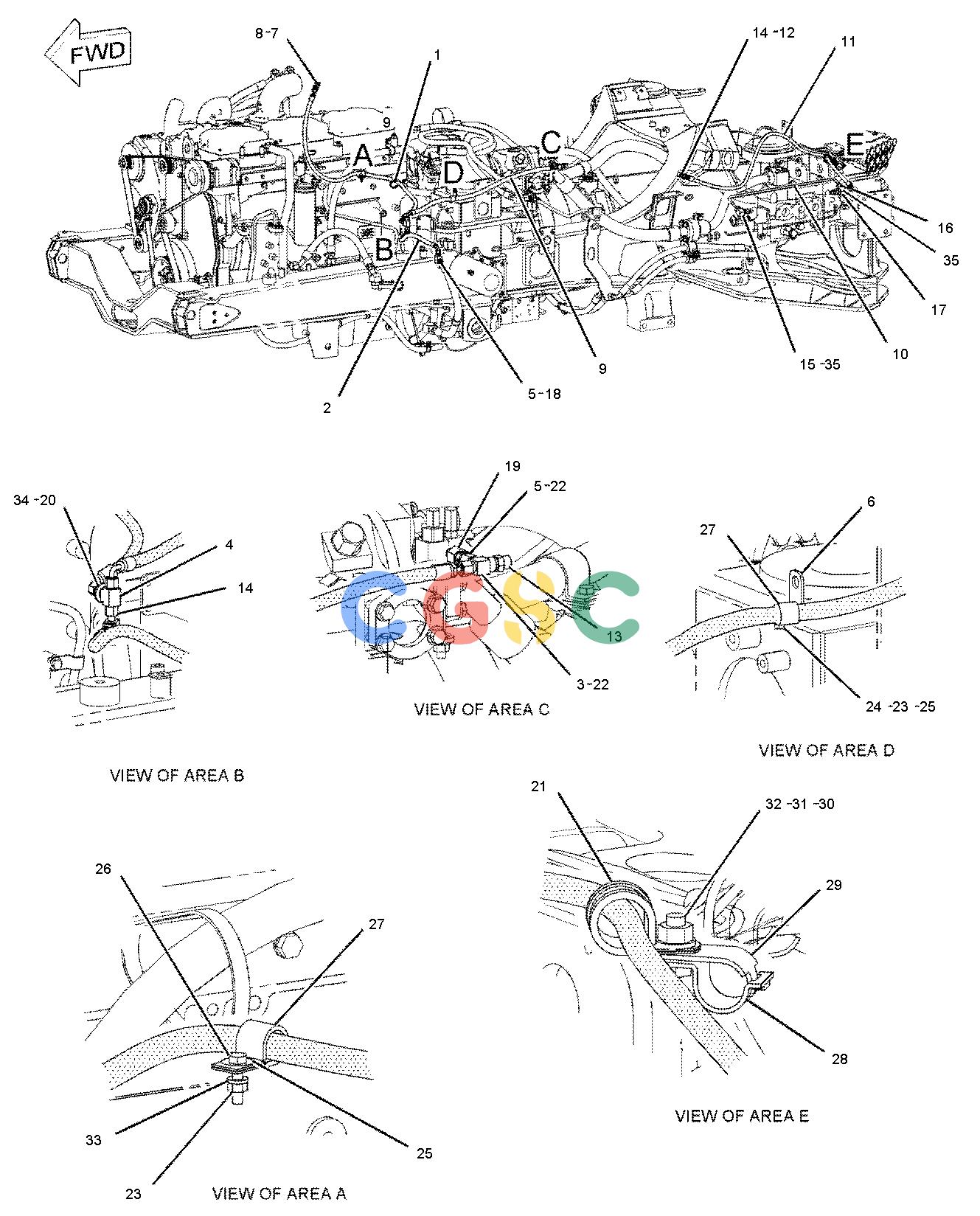

卡特零件查询（730） 225-8741: LINES GP-PILOT
广数供应链运营团队, 15 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [1] | STRAP | |
| 2. | 109-5369I | [1] | HOSE AS | |
| 3. | 149-4289 | [1] | TEE-O-RING | |
| 4. | 162-6616 | [1] | TEE AS | |
| | 4J-5477 | [3] | SEAL-O-RING | |
| 5. | 165-7948Y | [2] | VALVE GP-CHECK(HOIST) | |
| 6. | 169-9709 | [1] | BRACKET | |
| 7. | 187-2120 | [1] | ELBOW AS | |
| | 8C-8408 | [1] | ELBOW | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 8. | 225-8743I | [1] | HOSE AS | |
| 9. | 225-8744I | [1] | HOSE AS | |
| 10. | 230-7125 | [1] | TUBE AS | |
| 11. | 230-7131I | [1] | HOSE AS | |
| 12. | 148-8325 | [1] | CONNECTOR AS | |
| | 6V-8641 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 13. | 148-8326 | [1] | CONNECTOR AS | |
| | 6V-9872 | [1] | CONNECTOR | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 14. | 148-8351 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9849 | [1] | ELBOW | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 15. | 148-8367 | [1] | ELBOW AS | |
| | 6V-9850 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 16. | 148-8413 | [1] | REDUCER AS | |
| | 6V-8934 | [1] | ADAPTER | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 17. | 148-8433 | [1] | TEE AS | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 18. | 150-3065 | [1] | ELBOW AS | |
| | 6V-0484 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 19. | 150-4047 | [1] | ADAPTER AS | |
| | 8T-2353 | [1] | ADAPTER | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 20. | 2P-1279 | [1] | LOCKNUT(9/16-18-THD) | |
| 21. | 3U-2754 | [1] | CLIP(LOOP) | |
| 22. | 4J-5477 | [2] | SEAL-O-RING | |
| 23. | 5C-2890M | [5] | NUT(M6X1-THD) | |
| 24. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 25. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 26. | 6V-7357M | [1] | BOLT(M6X1X25-MM) | |
| 27. | 8M-2773 | [2] | CLIP(LOOP) | |
| 28. | 8T-1889 | [1] | CLIP(SLOT) | |
| 29. | 8T-1890 | [1] | CLIP(TAB) | |
| 30. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 32. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 33. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| 34. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| 35. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
