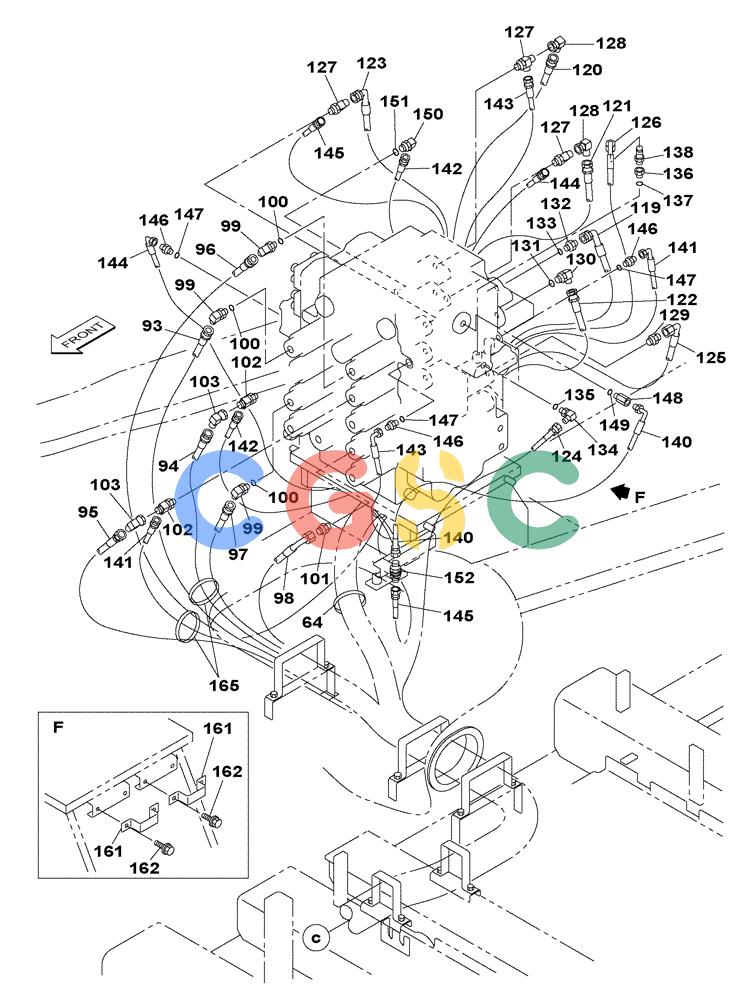

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-032-00[01]) - HYDRAULIC CIRCUIT - ATTACHMENT CONTROL VALVE PILOT (WITHOUT VALVE, PRESSURE RELIEF) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
188 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 64. | 150071A1 | [1] | MOUNTING CLIP | SUM |
| 93. | 159063A1 | [1] | HOSE | SUM3800 mm |
| 94. | 159062A1 | [1] | HOSE ASSY. | SUM3700 mm |
| 95. | KHJ10300 | [1] | HYDRAULIC HOSE | SUM3900 mm |
| 97. | KHJ12540 | [1] | HYDRAULIC HOSE | SUM3900 mm |
| 98. | 162531A1 | [1] | HOSE | SUM3600 mm |
| 99. | 150916A1 | [3] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
| 100. | 154475A1 | [1] | O-RING | SUM |
| 101. | KAJ2851 | [1] | ADAPTER | SUM |
| 102. | 163422A1 | [2] | TEE | SUM |
| 103. | 153526A1 | [1] | ELBOW | SUM |
| 119. | MPJ5480 | [1] | HOSE | SUM4200 mm |
| 120. | 159068A1 | [1] | HOSE | SUM4300 mm |
| 122. | KHJ12390 | [1] | HYDRAULIC HOSE | SUM4000 mm |
| 123. | KRJ4764 | [1] | HOSE | SUM |
| 124. | KHJ12550 | [1] | HYDRAULIC HOSE | SUM3700 mm |
| 125. | KRJ4970 | [1] | HOSE | SUM3800 mm |
| 126. | KHJ12560 | [1] | HYDRAULIC HOSE | SUM3900 mm |
| 132. | 152128A1 | [1] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 134. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 135. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 136. | 162366A1 | [1] | ADAPTER | SUM |
| 138. | KHJ1222 | [1] | ELBOW | SUM |
| 140. | 161659A1 | [1] | HYDRAULIC HOSE | SUM700 mm |
| 141. | 161482A1 | [1] | HOSE ASSY. | SUM |
| 142. | 153483A1 | [1] | HOSE ASSY. | SUM1450 mm |
| 143. | 161166A1 | [1] | HOSE ASSY. | SUM2100 mm |
| 145. | 162251A1 | [1] | HOSE | SUM |
| 146. | 152127A1 | [3] | HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT | SUM |
| 148. | 162554A1 | [1] | FITTING | SUM |
| 152. | 159481A1 | [1] | ADAPTER | SUM |
| 161. | 159025A1 | [2] | CLAMP | SUM |
| 162. | 166350A1 | [4] | BOLT | SUMM8 x 20 |
