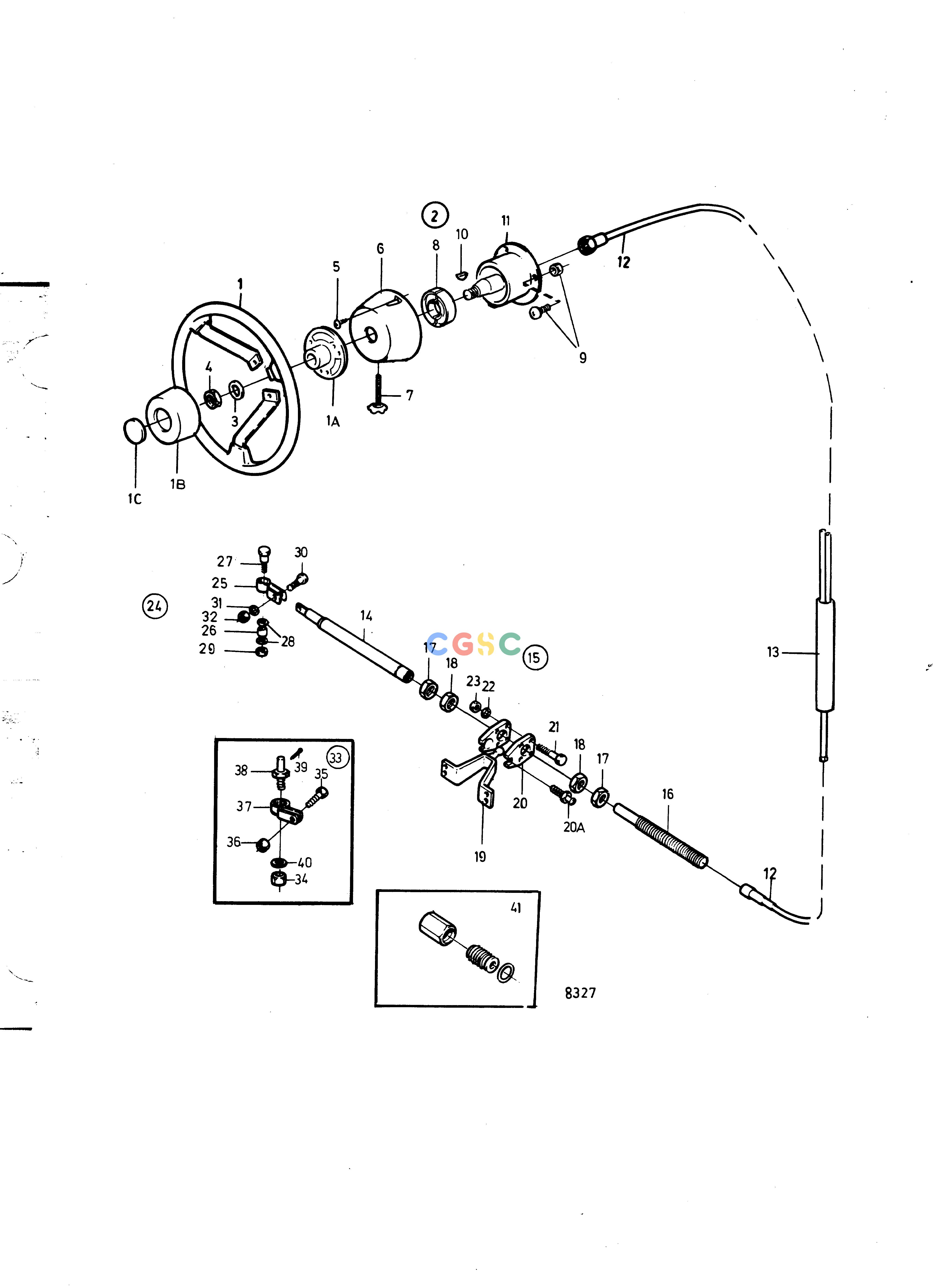

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Steering SystemSteering Mechanism STS330EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850936
|
[1] |
Steering wheel
|
|
| 1A. |
|
|
|
|
| 1B. |
828943
|
[1] |
Steering wheel cushi
|
|
| 1C. |
850938
|
[1] |
Emblem
|
|
| 2. |
853182
|
[1] |
Mounting kit
|
90°
|
| 2. |
1140023
|
[1] |
Mounting kit
|
90° black
|
| 2. |
853183
|
[1] |
Mounting kit
|
70°
|
| 2. |
1140024
|
[1] |
Mounting kit
|
70° black
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
853181
|
[1] |
Steering gear
|
|
| 12. |
828886
|
[1] |
Steering cable
|
L=2000mm
|
| 12. |
828887
|
[1] |
Steering cable
|
L=2250mm
|
| 12. |
828888
|
[1] |
Steering cable
|
L=2500mm
|
| 12. |
828889
|
[1] |
Steering cable
|
L=2750mm
|
| 12. |
853185
|
[1] |
Steering cable
|
L=3000mm
|
| 12. |
853186
|
[1] |
Steering cable
|
L=3250mm
|
| 12. |
853187
|
[1] |
Steering cable
|
L=3500mm
|
| 12. |
853188
|
[1] |
Steering cable
|
L=3750mm
|
| 12. |
853189
|
[1] |
Steering cable
|
L=4000mm
|
| 12. |
853190
|
[1] |
Steering cable
|
L=4250mm
|
| 12. |
853191
|
[1] |
Steering cable
|
L=4500mm
|
| 12. |
853192
|
[1] |
Steering cable
|
L=4750mm
|
| 12. |
853193
|
[1] |
Steering cable
|
L=5000mm
|
| 12. |
828863
|
[1] |
Steering cable
|
L=5250mm
|
| 12. |
853194
|
[1] |
Steering cable
|
L=5500mm
|
| 12. |
828864
|
[1] |
Steering cable
|
L=5750mm
|
| 12. |
853195
|
[1] |
Steering cable
|
L=6000mm
|
| 12. |
828865
|
[1] |
Steering cable
|
L=6250mm
|
| 12. |
853196
|
[1] |
Steering cable
|
L=6500mm
|
| 12. |
828866
|
[1] |
Steering cable
|
L=6750mm
|
| 12. |
853197
|
[1] |
Steering cable
|
L=7000mm
|
| 12. |
853286
|
[1] |
Steering cable
|
L=7500mm
|
| 12. |
853287
|
[1] |
Steering cable
|
L=8000mm
|
| 12. |
853288
|
[1] |
Steering cable
|
L=8500mm
|
| 12. |
853289
|
[1] |
Steering cable
|
L=9000mm
|
| 12. |
828867
|
[1] |
Steering cable
|
L=9750mm
|
| 12. |
828868
|
[1] |
Steering cable
|
L=10500mm
|
| 12. |
828869
|
[1] |
Steering cable
|
L=11250mm
|
| 12. |
828874
|
[1] |
Steering cable
|
L=12000mm
|
| 13. |
853291
|
[1] |
Ds unit
|
Only for fly bridge.
|
| 14. |
851147
|
[1] |
Steering cylinder
|
For starboard mounting.
|
| 15. |
853290
|
[1] |
Stern attachment
|
|
| 16. |
850771
|
[1] |
Anchorage
|
|
| 17. |
850778
|
[2] |
Nut
|
|
| 18. |
853306
|
[2] |
Nut
|
|
| 19. |
851093
|
[1] |
Bracket
|
|
| 20. |
828854
|
[1] |
Anchorage
|
|
| 20. |
828857
|
[1] |
Anchorage
|
|
| 20A. |
951739
|
[1] |
Lubricating nipple
|
For 828857
|
| 21. |
940101
|
[2] |
Hexagon screw
|
|
| 22. |
941906
|
[2] |
Spring washer
|
|
| 23. |
963105
|
[2] |
Lock nut
|
|
| 24. |
851122
|
[1] |
Ball joint kit
|
Repl by 828924
|
| 25. |
|
|
|
|
| 26. |
851121
|
[1] |
Sleeve
|
|
| 27. |
851117
|
[1] |
Shoulder screw
|
|
| 28. |
942551
|
[2] |
Washer
|
|
| 29. |
966172
|
[1] |
Lock nut
|
|
| 30. |
851118
|
[1] |
Shoulder screw
|
|
| 31. |
941670
|
[1] |
Washer
|
|
| 32. |
966171
|
[1] |
Lock nut
|
|
| 33. |
828924
|
[1] |
Ball joint kit
|
|
| 34. |
963119
|
[1] |
Lock nut
|
|
| 35. |
851118
|
[1] |
Shoulder screw
|
|
| 36. |
966171
|
[1] |
Lock nut
|
|
| 37. |
|
|
|
|
| 38. |
|
|
|
|
| 39. |
967707
|
[1] |
Split pin
|
|
| 40. |
955897
|
[1] |
Washer
|
|
| 41. |
853214
|
[1] |
Adapter
|
For foreign steering cables.
|
