纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-045-00[01]) - HYDRAULIC CIRCUIT - PICK HAMMER - BOOM (8.40 M) - DIPPER (3.60 M) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
128 次

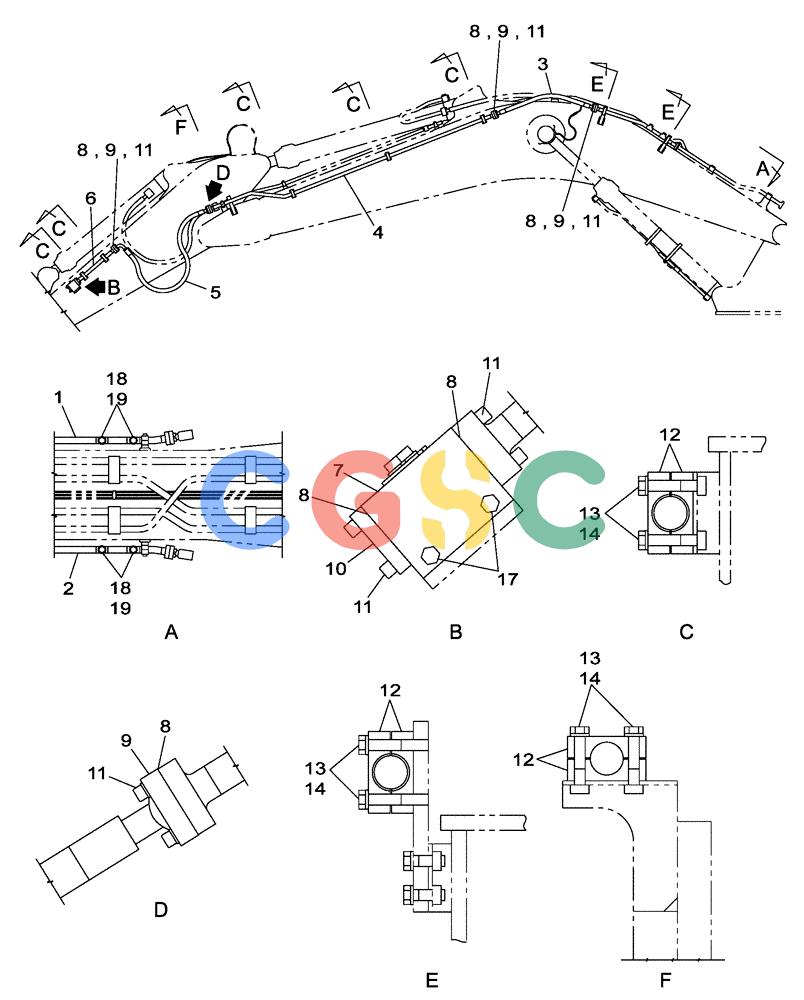

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUV0217 | [1] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 2. | KUV0219 | [1] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 3. | KUV0051 | [2] | HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm | SUM |
| 4. | KUV0064 | [2] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 5. | KUV0063 | [2] | HYDRAULIC HOSE,38.1mm ID x 2650mm L | SUM |
| 6. | KUV0062 | [2] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 7. | KUV0311 | [2] | VALVE | SUM |
| 8. | 168211A1 | [12] | O-RING | SUM |
| 9. | KTJ0169 | [16] | FLANGE | SUM |
| 10. | KUP0008 | [2] | COUPLING FLANGE | SUM |
| 11. | 862-16050 | [48] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CASM16 x 50 Superseded by part number: 9817243 |
| 12. | KUV0055 | [32] | CLAMP BRACKET | SUM |
| 13. | 827-16090 | [32] | BOLT,Hex, M16 x 2 x 90mm, Cl 10.9 | CAS Superseded by part number: 86521733 |
| 14. | 150814A1 | [32] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | SUMW 16 |
| 17. | 827-16120 | [4] | BOLT,Hex, M16 x 2 x 120mm, Cl 10.9 | CAS Superseded by part number: 43281 |
| 18. | 162659A1 | [4] | PLUG | SUM |
| 19. | 154523A1 | [1] | O-RING | SUM |
