纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-103-00[01]) - HIGH PRESSURE PUMP - REGULATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
825 次

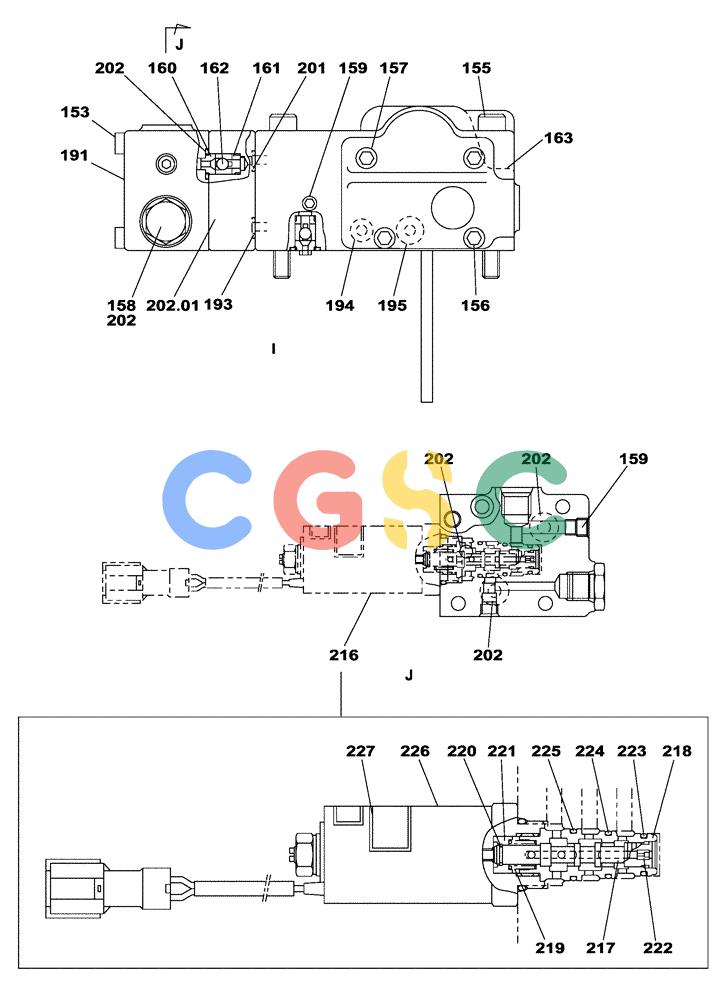

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 153. | 108R006Z070N | [4] | BOLT | SUM |
| 155. | 861-8070 | [2] | HEX SOC SCREW,M8 x 70mm, Cl 12.9 | CASM8 x 70 |
| 156. | 861-6030 | [2] | HEX SOC SCREW,M6 x 30mm, Cl 12.9 | SUMM6 x 30 Superseded by part number: 108R006Z030N |
| 157. | 862-6020 | [6] | HEX SOC SCREW,M6 x 20mm, Cl 12.9 | CASM6 x 20 |
| 158. | 155496A1 | [1] | PLUG | SUM |
| 159. | LK00003 | [7] | PLUG | SUM |
| 160. | NSS | [2] | NOT SERVICED SEPARATELY | CON |
| 193. | 154449A1 | [3] | O-RING | SUM |
| 194. | 154457A1 | [8] | O-RING | SUM |
| 195. | 154465A1 | [1] | O-RING | SUM |
| 201. | 154473A1 | [1] | O-RING | SUM |
| 202. | 154469A1 | [1] | O-RING | SUM |
| 216. | LJ00684 | [1] | SOLENOID VALVE | SUM |
| 223. | 155203A1 | [1] | O-RING | SUM |
| 224. | 155204A1 | [1] | O-RING | SUM |
| 225. | 160652A1 | [1] | O-RING | SUM |
