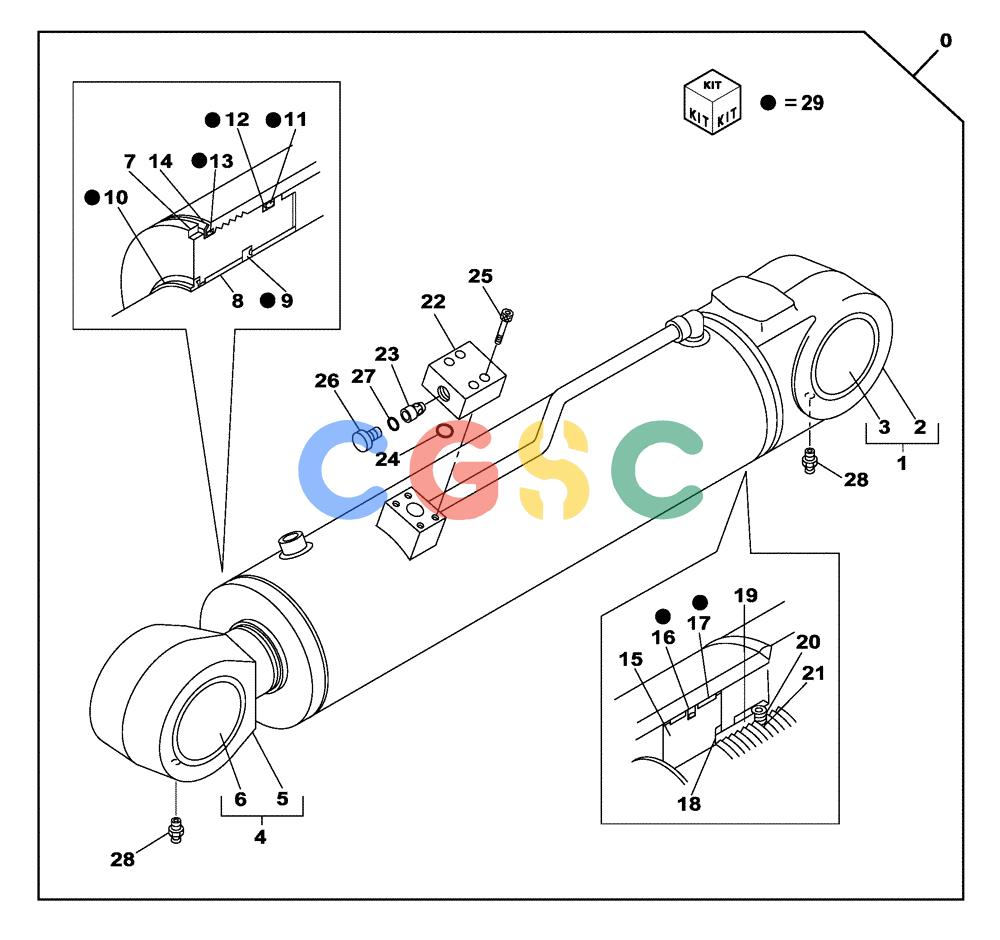

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-261-00[01]) - CYLINDER - SELF-DETACHING COUNTERWEIGHT SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
288 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | KUB0154 | [1] | HYDRAULIC CYLINDER | SUM |
| 1. | LR00744 | [1] | HYD CYL SLEEVE | SUM |
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 3. | 160048A1 | [2] | BUSHING | SUM |
| 4. | LB00695 | [1] | PISTON ROD | SUM |
| 6. | LB00697 | [1] | BUSHING | SUM |
| 7. | LU00135 | [1] | CYLINDER END CAP | SUM |
| 8. | TPU0040 | [1] | BUSHING | SUM |
| 9. | LAU0018 | [1] | O-RING | SUM |
| 10. | 158033A1 | [1] | WIPER SEAL | SUM Superseded by part number: LE019430 |
| 11. | 154805A1 | [1] | O-RING | SUM |
| 12. | LE00541 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 13. | 154803A1 | [1] | O-RING | SUM |
| 14. | LA00555 | [1] | LOCK WASHER | SUM |
| 15. | LJ00869 | [1] | JACK PISTON | SUM |
| 16. | LE00543 | [1] | SEALING RING | SUMSEALRING |
| 17. | LE00909 | [2] | SEALING STRIP | SUM |
| 18. | 155721A1 | [1] | SHIM | SUM |
| 19. | LA00673 | [1] | NUT | SUM |
| 20. | 156223A1 | [1] | SET SCREW | SUM |
| 21. | 155977A1 | [1] | BALL | SUM |
| 22. | LW00357 | [1] | HOUSING | SUM |
| 23. | LJ00870 | [1] | VALVE | SUM |
| 24. | 154499A1 | [1] | O-RING | SUM |
| 25. | 164502A1 | [4] | BOLT | SUM |
| 26. | LK00195 | [1] | PLUG | SUM |
| 27. | 154475A1 | [1] | O-RING | SUM |
| 28. | 153630A1 | [2] | LUBE NIPPLE | SUM |
| 29. | LZ00463 | [1] | SEAL KIT | SUM |
