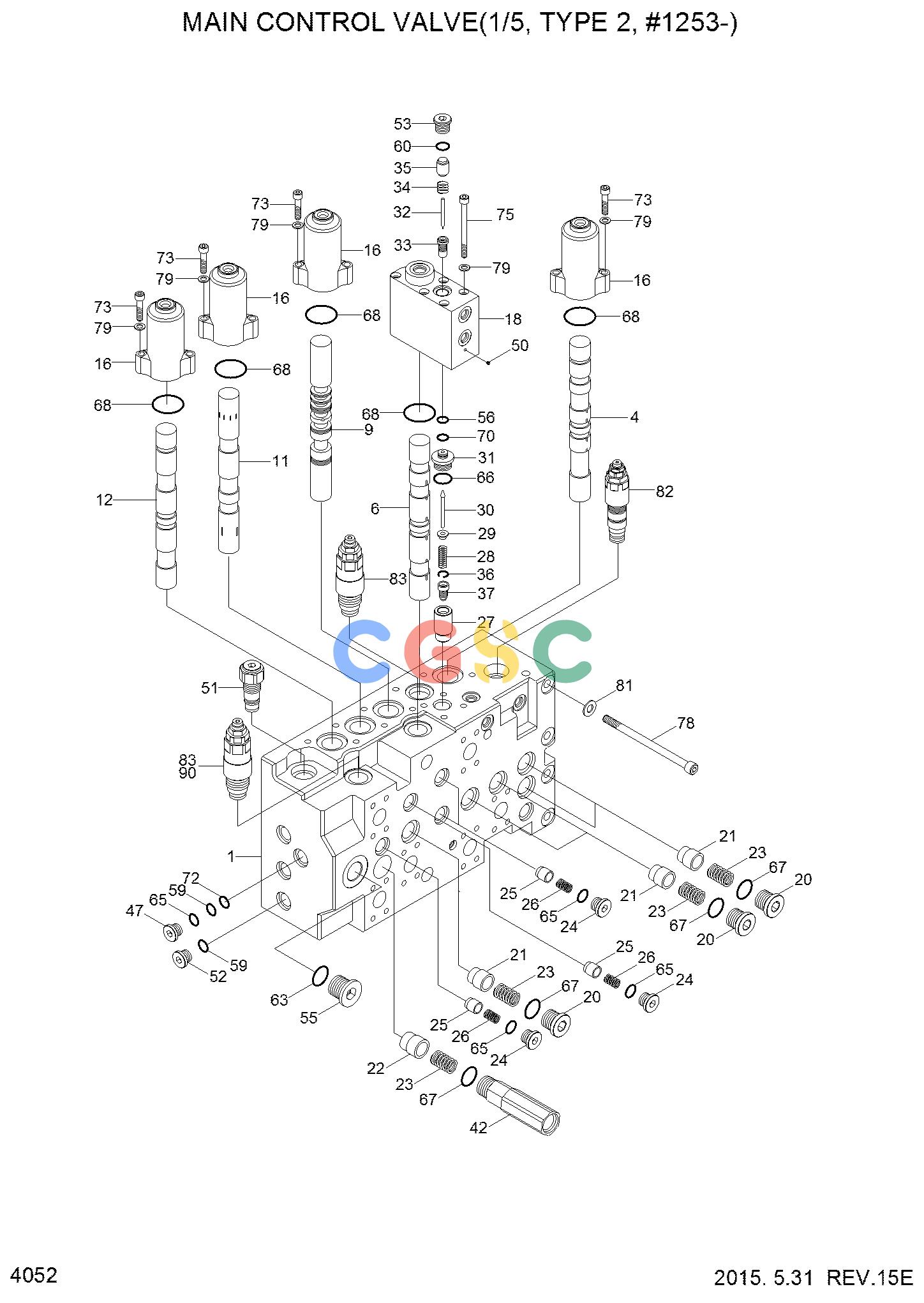

现代零件查询R305LC-7 MAIN CONTROL VALVE(1/5, TYPE 2, #1253-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N8-17000P
|
[1] |
MAIN CONTROL VALVE(P)
|
|
| N1. |
XKBF-01551
|
[1] |
HOUSING(P1)
|
|
| 4. |
XKBF-00367
|
[1] |
SPOOL-TRAVEL
|
|
| 6. |
XKBF-00369
|
[1] |
SPOOL-BOOM
|
|
| 9. |
XKBF-00372
|
[1] |
SPOOL-ARM 2
|
|
| 11. |
XKBF-00374
|
[1] |
SPOOL-ARM REGEN
|
|
| 12. |
XKBF-00375
|
[1] |
SPOOL-BUCKET
|
|
| 16. |
XKBF-00379
|
[4] |
COVER B1-PILOT
|
|
| 18. |
XKBF-01554
|
[2] |
HOUSING-BLOCK
|
|
| 20. |
XKBF-00383
|
[5] |
PLUG
|
|
| 21. |
XKBF-00806
|
[5] |
POPPET 1
|
|
| 22. |
XKBF-00385
|
[1] |
POPPET
|
|
| 23. |
XKBF-01250
|
[6] |
SPRING 1
|
|
| 24. |
XKBF-00630
|
[4] |
PLUG
|
|
| N25. |
XKBF-01450
|
[4] |
POPPET 2
|
|
| N26. |
XKBF-01451
|
[4] |
SPRING 2
|
|
| N27. |
XKBF-01555
|
[1] |
POPPET-LOCK VLV
|
|
| N28. |
XKBF-01340
|
[1] |
SPRING-POPPET SIGNAL
|
|
| N29. |
XKBF-00907
|
[1] |
GUIDE-POPPET
|
|
| N30. |
XKBF-01457
|
[1] |
POPPET-LOCK VALVE
|
|
| N31. |
XKBF-00777
|
[1] |
RETRUN SPRING SEAT 1
|
|
| 32. |
XKBF-01556
|
[1] |
PISTON 1
|
|
| 33. |
XKBF-00907
|
[1] |
GUIDE-POPPET
|
|
| 34. |
XKBF-00912
|
[1] |
SPRING 1
|
|
| 35. |
XKBF-00913
|
[1] |
PISTON 2
|
|
| 36. |
XKBF-00903
|
[1] |
C-RING
|
|
| N37. |
XKBF-00905
|
[1] |
RESTRICTOR-LOCK VLV
|
|
| 42. |
XKBF-00398
|
[1] |
CHECK VALVE ASSY
|
|
| 47. |
XKBF-00401
|
[1] |
ORIFICE-PLUG
|
|
| 50. |
XKBF-00728
|
[1] |
PLUG
|
|
| 51. |
XKBF-00404
|
[1] |
NEGATIVE CONTROL VLV
|
|
| 52. |
XKBF-00923
|
[1] |
PLUG
|
|
| 53. |
XKBF-00845
|
[1] |
PLUG
|
|
| 55. |
XKBF-01279
|
[1] |
PLUG
|
|
| 56. |
XKBF-00958
|
[1] |
O-RING
|
|
| 59. |
XKBF-00940
|
[2] |
O-RING
|
|
| 60. |
XKBF-00618
|
[1] |
O-RING
|
|
| 63. |
XKBF-01280
|
[1] |
O-RING
|
|
| 65. |
XKBF-01282
|
[5] |
O-RING
|
|
| 66. |
XKBF-01283
|
[1] |
O-RING
|
|
| 67. |
XKBF-00415
|
[5] |
O-RING
|
|
| 68. |
XKBF-00416
|
[5] |
O-RING
|
|
| 70. |
XKBF-00962
|
[1] |
RING-BACK UP
|
|
| 72. |
XKBF-00418
|
[1] |
RING-BACK UP
|
|
| 73. |
XKBF-01284
|
[7] |
BOLT-SOCKET
|
|
| 75. |
XKBF-01265
|
[5] |
BOLT-SOCKET
|
|
| 78. |
XKBF-01289
|
[4] |
BOLT-SOCKET
|
|
| 79. |
XKBF-00425
|
[13] |
WASHER-SPRING
|
|
| 81. |
XKBF-00427
|
[4] |
WASHER-SPRING
|
|
| 82. |
XKBF-00895
|
[1] |
MAIN RELIEF VALVE
|
|
| 83. |
XKBF-00428
|
[2] |
RELIEF VALVE-OVERLOAD
|
|
| 90. |
XKBF-00491
|
[1] |
RELIEF VALVE-OVERLOAD
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
