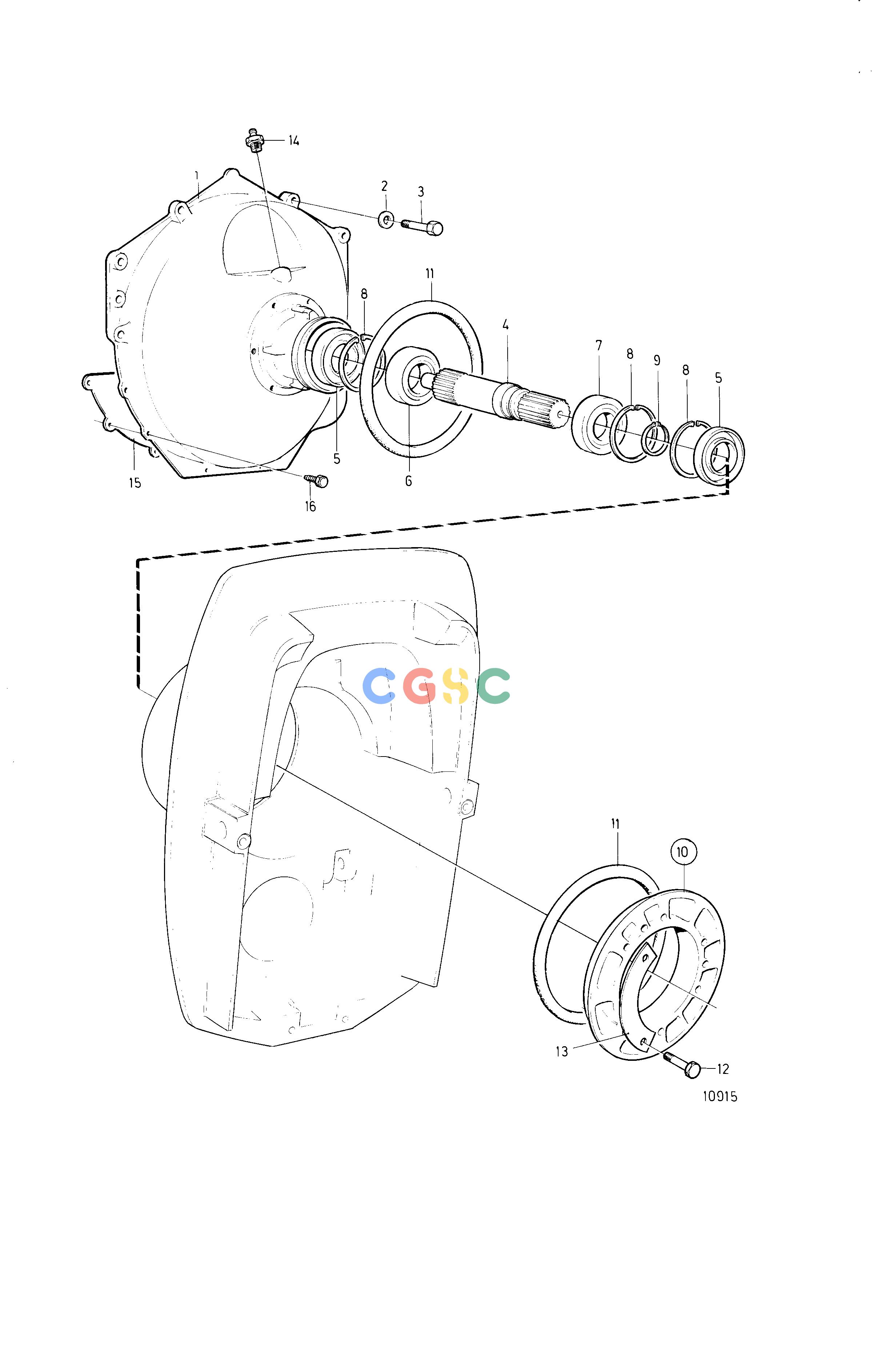

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsFlywheel Casing, Primary Shaft and Clamp Ring Kit, Earlier M OEPC Volvo Penta Parts catal
广数供应链运营团队, 15 02月, 2025，浏览：
208 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
841967
|
[1] |
Flywheel housing
|
|
| 2. |
942336
|
[6] |
Spring washer
|
|
| 3. |
941939
|
[6] |
Screw
|
|
| 4. |
853809
|
[1] |
Spindle
|
|
| 5. |
958860
|
[2] |
Sealing ring
|
|
| 6. |
11013
|
[1] |
Ball bearing
|
|
| 7. |
181105
|
[1] |
Ball bearing
|
|
| 8. |
914533
|
[3] |
Snap ring
|
|
| 9. |
914462
|
[1] |
Snap ring
|
|
| 10. |
854315
|
[1] |
Clamping ring kit
|
|
| 11. |
813967
|
[2] |
Rubber ring
|
|
| 12. |
191844
|
[6] |
Hexagon screw
|
|
| 13. |
806624
|
[3] |
Striker plate
|
|
| 14. |
914167
|
[1] |
Lubricating nipple
|
|
| 15. |
826448
|
[1] |
Cover plate
|
|
| 16. |
947224
|
[5] |
Hexagon screw
|
|
