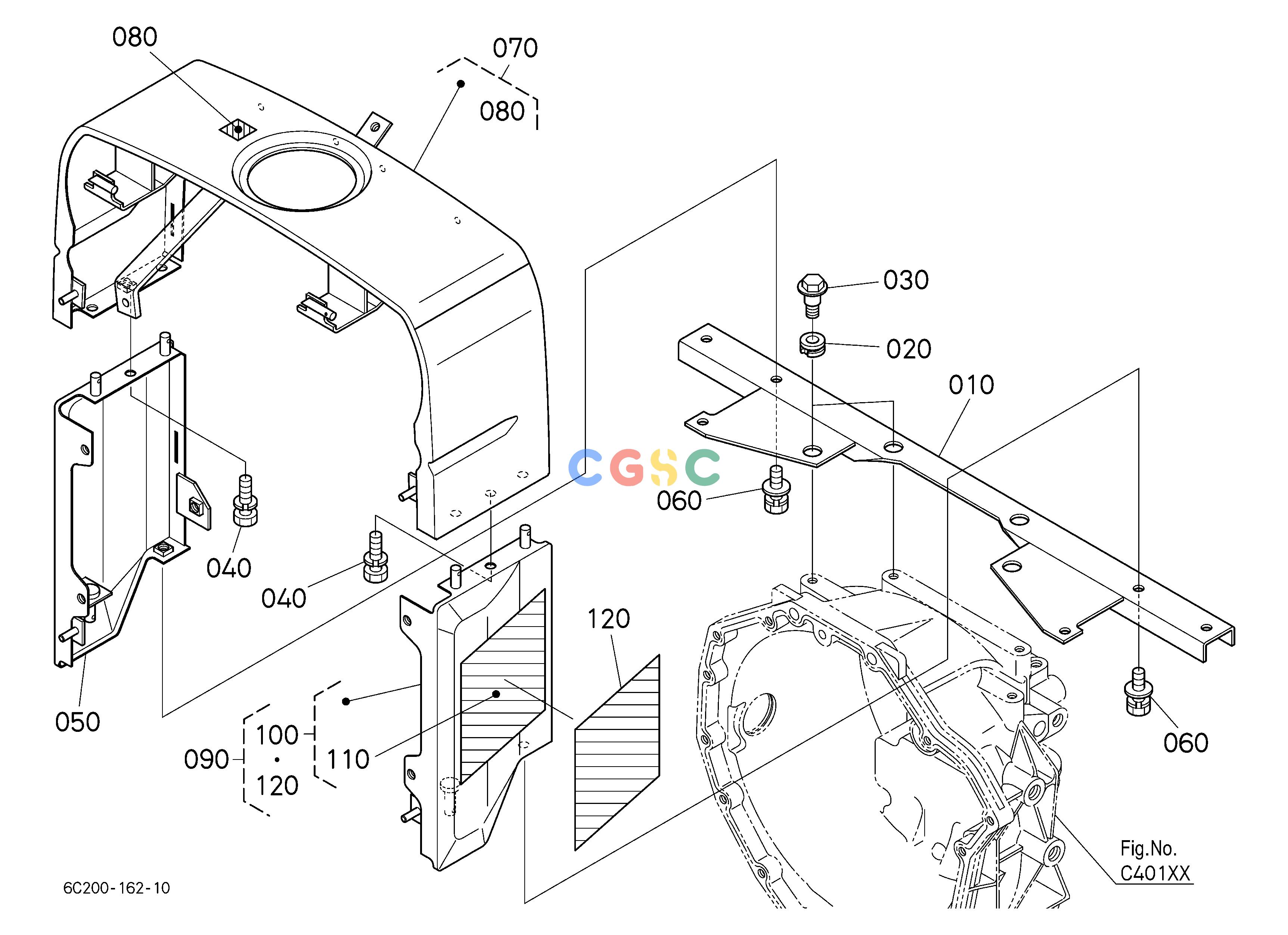

久保田零件查询M13501 CENTER PILLAR ## S.No.<=58043 S.No.;<=58043 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
902 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20054212
|
[1] |
BEAM,CENTER
|
2.9260(lbs); 1.330
|
| 020. |
6A10051380
|
[4] |
CUSHION
|
0.0066(lbs); 0.003
|
| 030. |
6C04051342
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
| 040. |
0112350816
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 050. |
6C20054253
|
[1] |
PILLAR,CENTER RH
|
1.5620(lbs); 0.710
|
| 060. |
0112350816
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 060. |
6C04054610
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 060. |
6C04054612
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 070. |
6C20099251
|
[1] |
KIT A PILLAR CENTER
|
0.0000(lbs); 0.000
|
| 080. |
6C04047412
|
[1] |
LABEL,FILLER CAUTION
|
0.0022(lbs); 0.001
|
| 090. |
6C20099300
|
[1] |
KIT B PILLAR,CENT.LH
|
1.5400(lbs); 0.700
|
| 100. |
6C20099350
|
[1] |
KIT A PILLAR,CENT.LH
|
1.5840(lbs); 0.720
|
| 110. |
6C09049650
|
[1] |
LABEL,START CAUTION
|
0.0110(lbs); 0.005
|
| 120. |
6C09149650
|
[1] |
LABEL,START CAUTION
|
0.0044(lbs); 0.002
|
