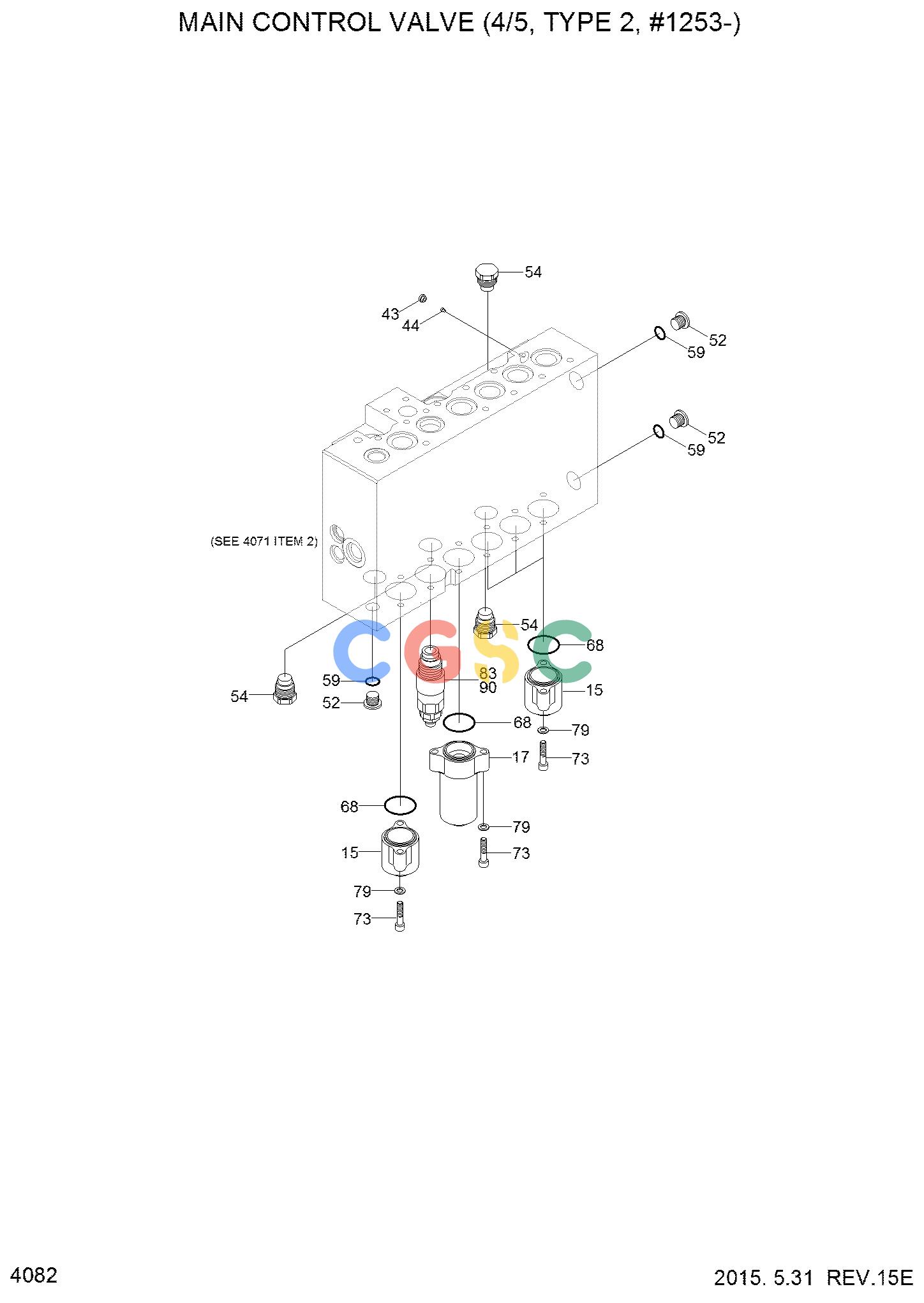

现代零件查询R305LC-7 MAIN CONTROL VALVE(4/5, TYPE 2, #1253-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 15. |
XKBF-01242
|
[5] |
COVER A-PILOT
|
|
| 17. |
XKBF-00380
|
[1] |
COVER B2-PILOT
|
|
| 43. |
XKBF-00399
|
[1] |
ORIFICE-SIGNAL
|
|
| 44. |
XKBF-00922
|
[1] |
FILTER-COIN TYPE
|
|
| 52. |
XKBF-00923
|
[3] |
PLUG
|
|
| 54. |
XKBF-01277
|
[3] |
PLUG
|
|
| 59. |
XKBF-00940
|
[3] |
O-RING
|
|
| 68. |
XKBF-00416
|
[6] |
O-RING
|
|
| 73. |
XKBF-01284
|
[6] |
BOLT-SOCKET
|
|
| 79. |
XKBF-00425
|
[6] |
WASHER-SPRING
|
|
| 83. |
XKBF-00428
|
[1] |
RELIEF VALVE-OVERLOAD
|
|
